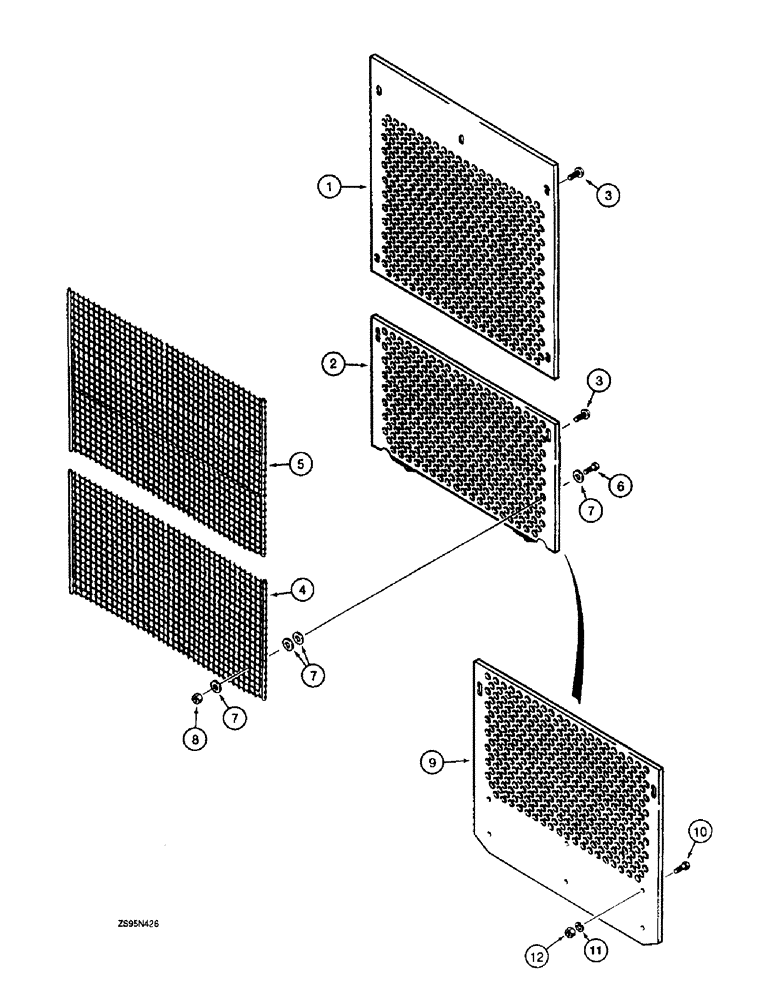

Запчасти Case 1150E (9-058) - GRILLE AND RADIATOR BRUSH SCREENS (09) - CHASSIS/ATTACHMENTS

1

R54619

SIEVE

GRILLE - upper

1шт.

2

R41759

SIEVE

GRILLE - lower, all dozer and early production loader models, see Ref. 9 below

1шт.

3

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

7шт.

4

R27890

BRUSH

SCREEN - radiator brush, lower, 13 inch (330 mm) high

1шт.

5

R50031

SIEVE

SCREEN - radiator brush, upper, 17 inch (432 mm) high

1шт.

6

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

16шт.

7

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, special

64шт.

8

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

16шт.

9

R57579

GRILLE

- lower, will service all loader models

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.
