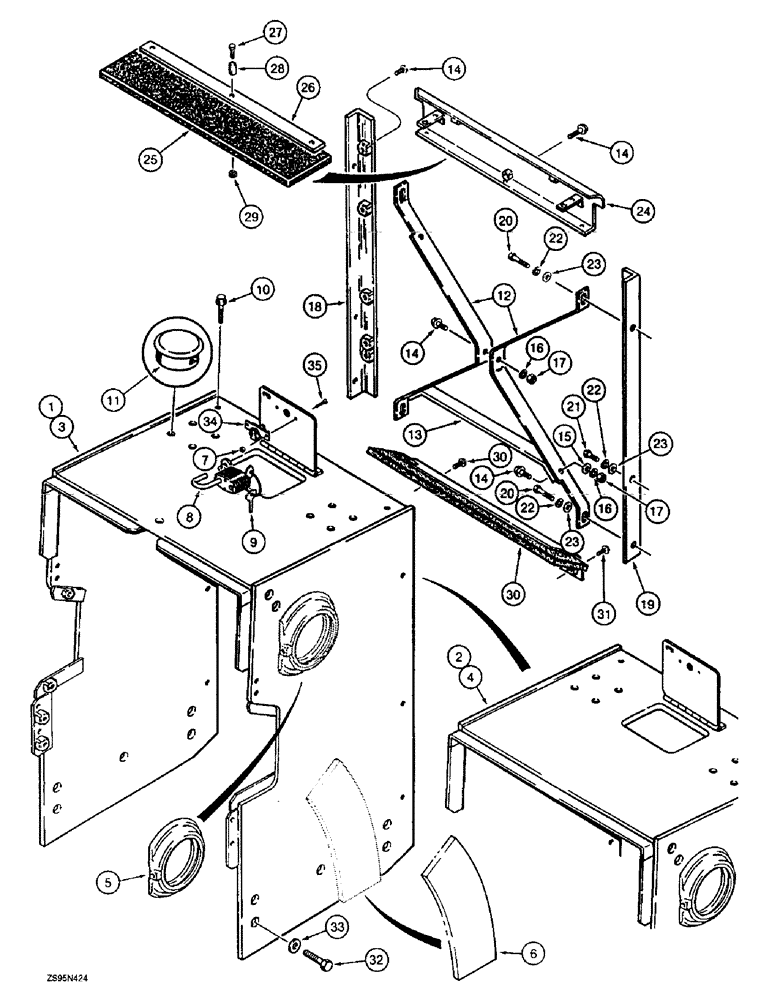

Запчасти Case 1150E (9-054) - RADIATOR SHROUD - DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R54831

GUARD

SHROUD - radiator, includes decals, 62 inch gauge standard ATP dozer models, 74 inch gauge wide track ATP dozer models, and drawbar models, used with R48285 bracket (Figure 9-60 ref 19)

1шт.

1

R54832

GUARD ASSY.

SHROUD - radiator, includes decals, 74 inch gauge LGP dozer models, used with R48285 bracket (Figure 9-60 ref 19)

1шт.

2

R57391

GUARD ASSY.

SHROUD - radiator, includes decals, 62 inch gauge standard ATP dozer models, 74 inch gauge wide track ATP dozer models, and drawbar models, used with R56938 bracket (Figure 9-60 ref 20)

1шт.

2

R57390

GUARD ASSY.

SHROUD - radiator, includes decals, 74 inch gauge LGP dozer models, used with R56938 bracket (Figure 9-60 ref 20)

1шт.

3

R57201

PROTECTION PLATE

SHROUD - radiator, includes decals, 74 inch inch gauge long track angle tilt dozer models, used with R48285 bracket (Figure 9-60 ref 19)

1шт.

4

R57473

GUARD ASSY.

SHROUD - radiator, includes decals, 74 inch gauge long track angle tilt dozer models, used with R56938 bracket (Figure 9-60 ref 20)

1шт.

5

R54811

CYLINDER END CAP

RACE - trunnion, used on all dozer radiator shrouds, weld on

2шт.

6

R54773

LARGE PLATE

PLATE - wear, long track angle tilt dozer models only, weld on

2шт.

7

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, special, No. 10 NC

2шт.

8

D93753

PADLOCK

- radiator cap access, includes keys

1шт.

9

R29555

KEY

- for Master padlock only

2шт.

9

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

10

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

11

353-409

PLUG,Dome, .812" hole, Nylon

- button, 13/16 inch, if used

8шт.

12

R51097

SUPPORT

BRACE - shroud support

2шт.

13

R51213

SUPPORT

BRACE - cross piece, lower

1шт.

14

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

12шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

18

R49934

ANGLE BAR

BRACKET - grille mounting, left-hand

1шт.

19

R49935

ANGLE BAR

BRACKET - grille mounting, right-hand

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

6шт.

24

R54624

PANEL

- front, upper

1шт.

25

REF

INSTRUCTION

PAD - radiator baffle, upper, see Figure 9-86 for pad

1шт.

26

R49917

LARGE PLATE

STRIP - pad backing

1шт.

27

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

3шт.

28

D34244

SPACER

- bolt

3шт.

29

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

30

R53867

LARGE PLATE

PANEL - lower radiator baffle, includes pad, see Figure 9-86 for pad

1шт.

31

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

32

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

10шт.

33

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1 inch, hardened

10шт.

34

L102515

LATCH

- radiator cap access

1шт.

35

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.
