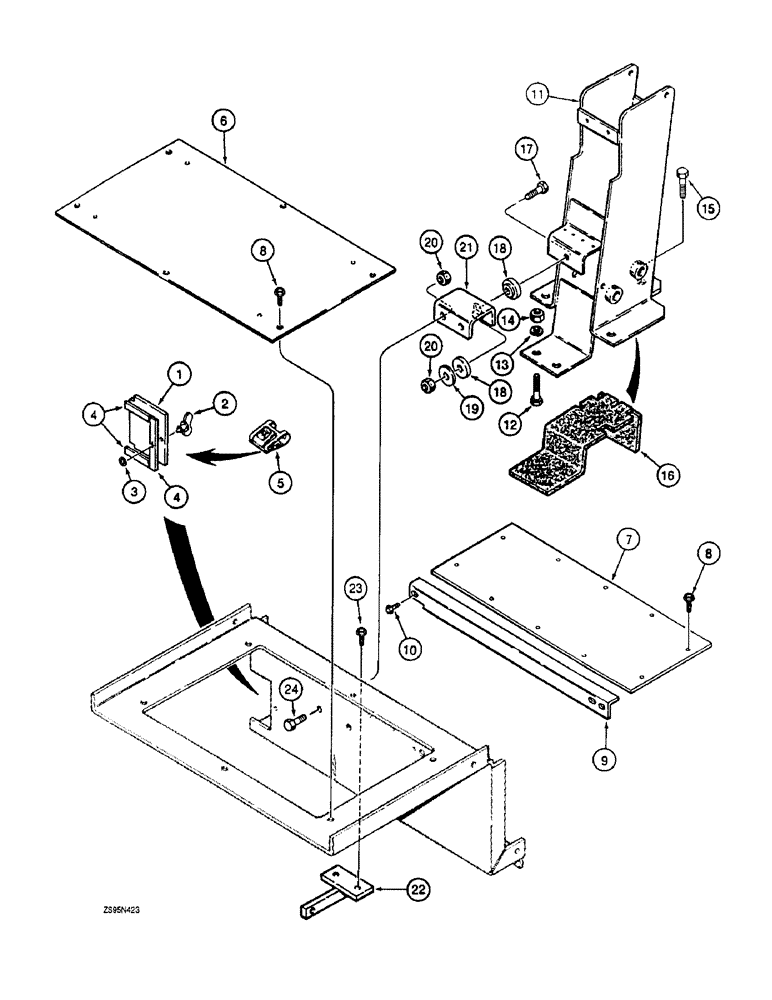

Запчасти Case 1150E (9-052) - OPERATORS COMPARTMENT CLOSURE PANELS, MODELS W/CAB HEEL & SEAT MOUNTING PLATE, TRANS CONTROL TWR (09) - CHASSIS/ATTACHMENTS

R54195

COVER

ASSEMBLY - fuel shutoff access, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - cover assembly

1шт.

2

L40220

FASTENER

STUD - wing, fuel shutoff cover

1шт.

3

NLS

NO LONGER SERVICED

- stud, fuel shutoff cover

1шт.

4

REF

INSTRUCTION

SEAL - foam, fuel shutoff cover, 9-5/8 inch (245 mm) long, adhesive-backed, cut from A42905, see below

1шт.

For transmission control levers and linkage see Figure 6-60.

1шт.

5

A36042

CLIP

RETAINER - quarter turn, fuel shutoff access cover

1шт.

6

R53236

LARGE PLATE

PLATE - seat mounting, 370 x 530 mm, if used

1шт.

6

1999568C1

LARGE PLATE

PLATE - seat mounting, 425 x 425 mm, if used, not shown

1шт.

7

R53239

COVER

- battery, upper

1шт.

8

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

16шт.

9

R54111

SUPPORT

BRACKET - rear access cover (see Figure 9-48 for rear cover)

1шт.

10

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

11

R58592

CASING

TOWER - control, used on cab models only

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

16

R39306

SEAL

- foam, control tower base

1шт.

17

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

18

R44084

BUSHING

INSULATOR - rubber

2шт.

19

195-137

WASHER,13/32" x 1 1/8" x .180"

- flat, 13/32 x 1-1/8 x 3/16 inch

1шт.

20

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

21

R53924

SUPPORT

BRACKET - support, control tower

1шт.

22

R53756

LARGE PLATE

BRACKET - selector valve linkage mounting, dozer hydraulics

1шт.

23

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

A42905X

FOAM

SEAL - foam, 1/8 (3) x 1/2 (13) x 360 inch (9144 mm) long

1шт.

For transmission control levers and linkage see Figure 6-60.

1шт.
