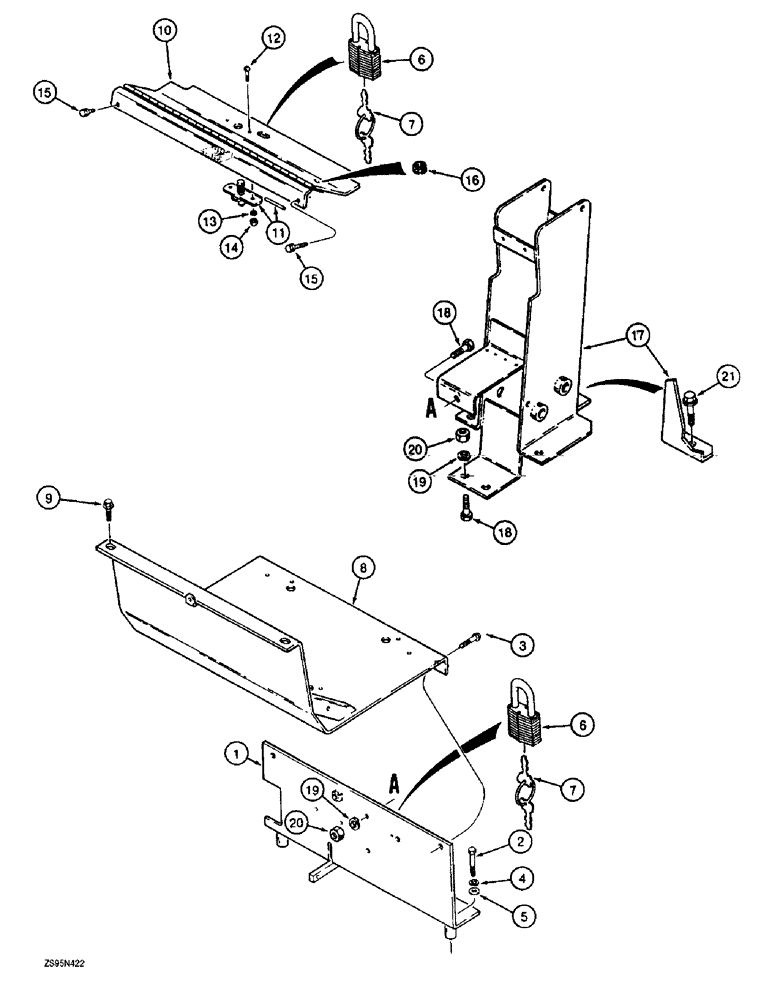

Запчасти Case 1150E (9-050) - OPERATORS COMPARTMENT CLOSURE PANELS (09) - CHASSIS/ATTACHMENTS

1

R54140

LARGE PLATE

PLATE - heel, if used

1шт.

2

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

3

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Replaces regular hex bolt, lock washer, and flat washer used on some models Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

6

D93753

PADLOCK

- master switch disconnect on heel plate and battery cover behind seat, Includes: Ref. 7

2шт.

7

R29555

KEY

- for Master padlock only

2шт.

7

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

8

R54721

LARGE PLATE

PLATE - seat mounting, includes master disconnect (battery) decal

1шт.

9

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

10

R46631

COVER

- battery

1шт.

11

L102515

LATCH

- battery cover

1шт.

12

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

13

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

225-14110

NUT,#10-24

2шт.

15

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

16

A23870

GROMMET

- rear lamp wiring harness, if used

1шт.

17

R45828

FRAME

TOWER - control, used without a cab

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

21

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Control tower to floor plate Hex Flg, 1/2"-13 x 1", G8, Full Thd

1шт.
