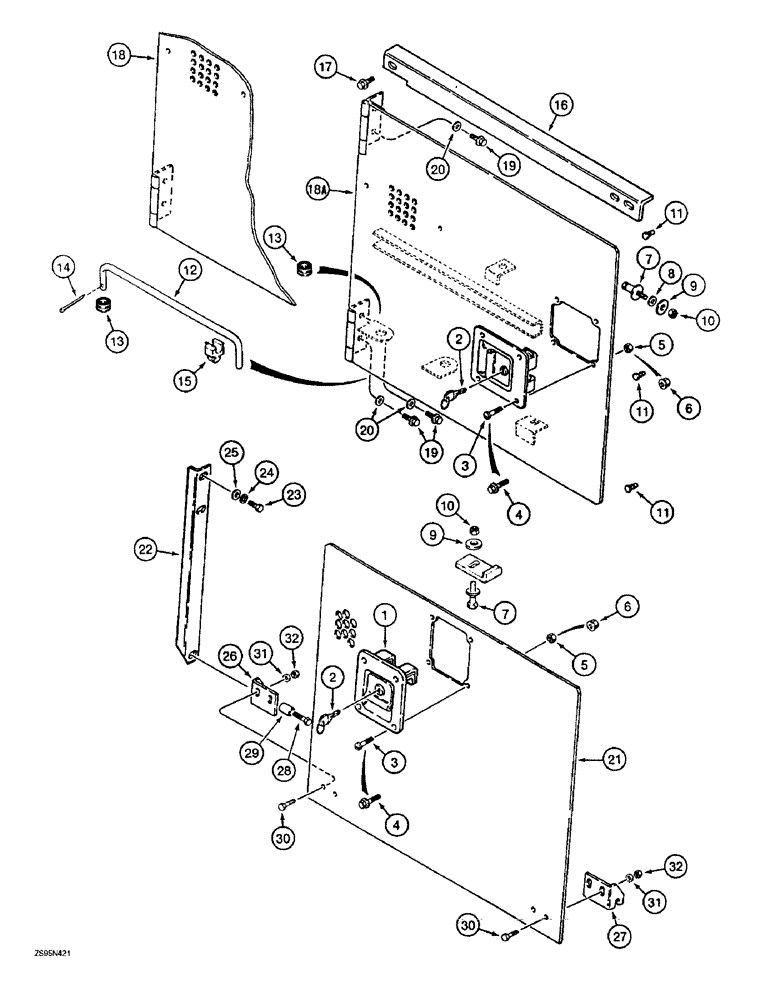

Запчасти Case 1150E (9-048) - REAR ACCESS COVER (09) - CHASSIS/ATTACHMENTS

1

R54912

LATCH ASSY.

LATCH - rear access cover

1шт.

2

R49215

KEY

- latch

1шт.

3

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch, if used

4шт.

4

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch, if used

4шт.

5

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, special, No. 10 NC, if used

4шт.

6

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, , if used Flg, 1/4"-20

4шт.

7

D136115

LATCH

STRIKER - rear cover latch

2шт.

8

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Used as a shim, if used 3/8"

1шт.

9

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

1шт.

10

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - light hex, self locking, 3/8 inch NC

1шт.

11

A161780

BUMPER

- rubber, rear cover, on hydraulic reservoir flange

3шт.

12

R58715

ROD

- door hold

1шт.

13

248-2397

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

Rubber, Rod pivot 5/16" ID x 3/4" Groove Dia, Str Cut

2шт.

14

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

15

L128879

CLIP,ELECTRICAL

CLIP - rod retainer

1шт.

16

R54111

SUPPORT

BRACKET - rear access cover, includes bracket for striker used on winch models with a raised arch, cab models only

2шт.

17

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8, cab models only

2шт.

18

R55173

COWLING ASSY

COVER - rear, hinged, includes decals, without door hold bracket, used on all models except winch models with a raised arch

1шт.

18a

R58604

COVER

- rear, hinged, without decals, with door hold bracket, used on all models except winch models with a raised arch

1шт.

19

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8, used on all models except winch models with a raised arch

4шт.

20

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened, Used on all models except winch models with a raised arch

4шт.

21

R55174

COVER

- rear, bolt-on, includes decals, used on winch models with a raised arch

1шт.

22

R47739

SUPPORT

- rear cover mounting, used on winch models with a raised arch

1шт.

23

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Used on winch models with a raised arch Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

24

492-11038

LOCK WASHER,3/8"

used on winch models with a raised arch 3/8"

2шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used on winch models with a raised arch 3/8", SAE

2шт.

26

R47813

ANGLE

BRACKET - cover mounting, left-hand, used on winch models with a raised arch

1шт.

27

R47814

ANGLE

BRACKET - cover mounting, right-hand, used on winch models with a raised arch

1шт.

28

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Used on winch models with a raised arch Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

29

D33553

BUSHING

SPACER - bracket, used on winch models with a raised arch

2шт.

30

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Used on winch models with a raised arch Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used on winch models with a raised arch 3/8", SAE

4шт.

32

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, self-locking, 3/8 inch NC, used on winch models with a raised arch

4шт.
