Запчасти Case 1150E (9-044) - REAR TRANSMISSION GUARDS, DOZER AND DRAWBAR MODELS W/O REAR MOUNTED EQUIPMENT (09) - CHASSIS/ATTACHMENTS

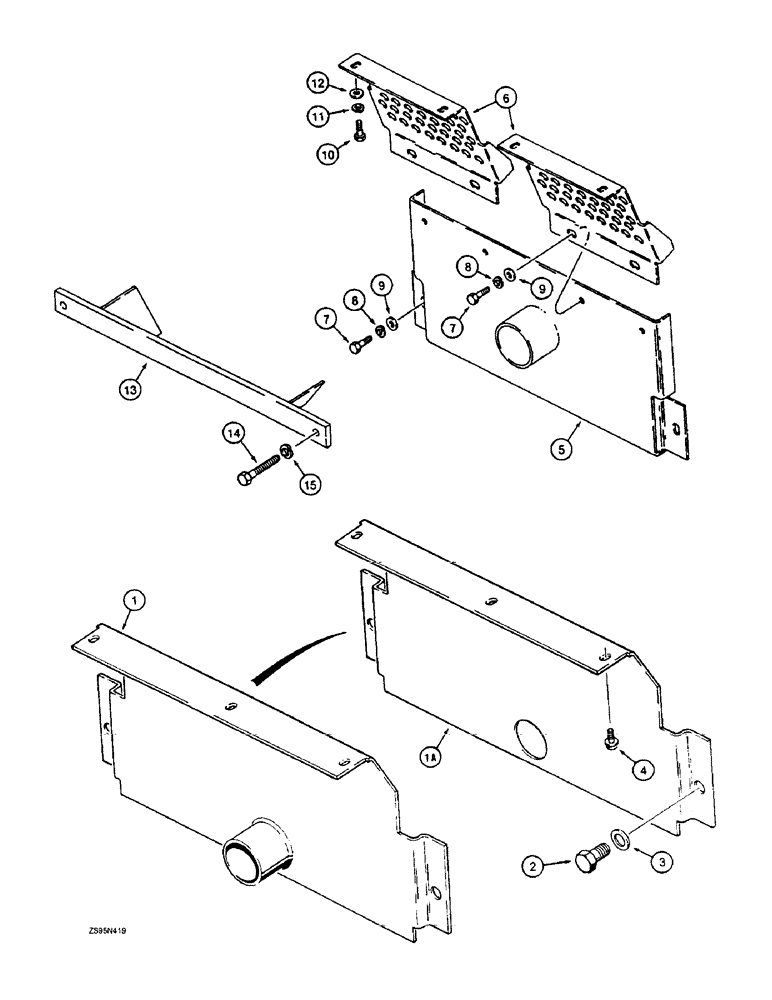

Схема запчастей Case 1150E - (9-044) - REAR TRANSMISSION GUARDS, DOZER AND DRAWBAR MODELS W/O REAR MOUNTED EQUIPMENT (09) - CHASSIS/ATTACHMENTS
8
1
3
5
1a
10
14
11
6
9
7
13
4
8
12
9
7
2
15

Артикул

Название

Примечание

Количество

1

R46919

PROTECTION PLATE

GUARD - transmission, rear, dozer and drawbar models without rear mounted equipment, no longer used, order R46920 guard

1шт.

1a

R46920

GUARD ASSY.

GAURD - transmission, rear, dozer and drawbar models without rear mounted equipment

1шт.

2

413-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5

- hex, 1 NC x 1-1/2 inch, dozer and drawbar models without rear mounted equipment

2шт.

3

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch, Dozer and drawbar models without rear mounted equipment

2шт.

4

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

Dozer and drawbar models without rear mounted equipment Hex Flg, 3/8"-16 x 1", G8, Full Thd

3шт.

5

R51367

GUARD ASSY.

GUARD ASSEMBLY - rear, lower, ripper models

1шт.

6

R51366

GUARD ASSY.

GUARD ASSEMBLY - rear, upper, perforated, ripper models

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, ripper models

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Ripper models 1/2"

6шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Ripper models 1/2", SAE

6шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

-hex, 3/8 NC x 1 inch, Ripper models

4шт.

11

492-11038

LOCK WASHER,3/8"

ripper models 3/8"

4шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Ripper models 3/8", SAE

4шт.

13

R51363

LARGE PLATE

GUARD - transmission, rear, lower, ripper models

1шт.

14

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

ripper models Hex, 5/8"-11 x 2 1/2", G5

2шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Ripper models 5/8"

2шт.

Выбрано товаров: 16
