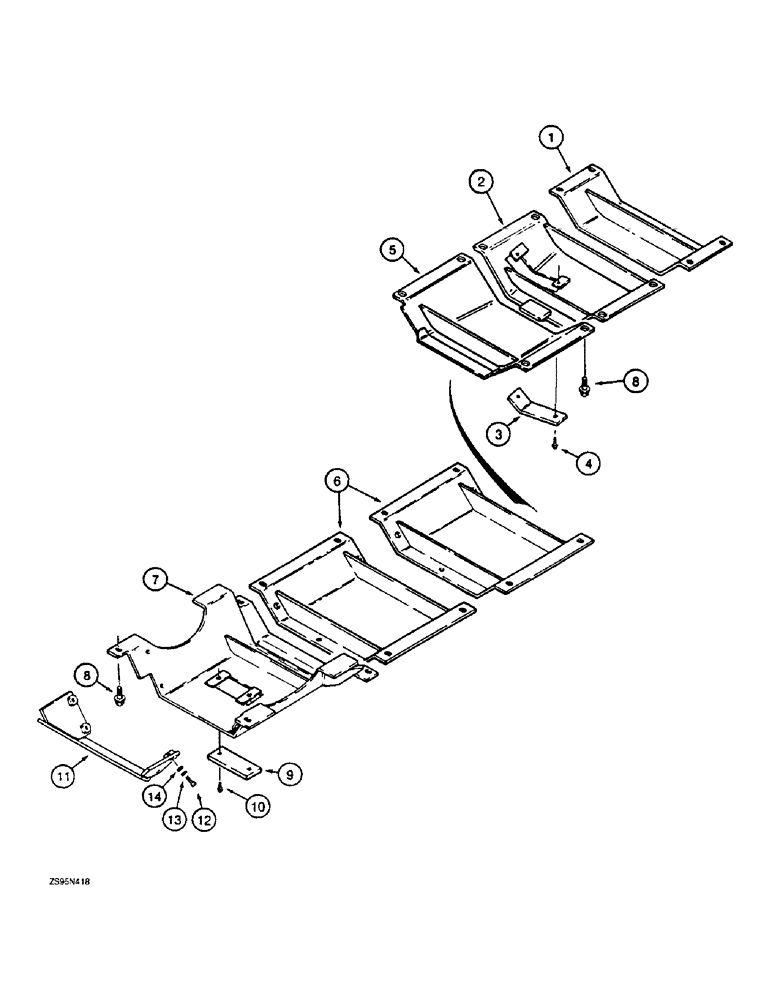

Запчасти Case 1150E (9-042) - UNDERCARRIAGE GUARDS, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R26803

GUARD ASSY.

GUARD - front

1шт.

2

R48721

GUARD ASSY.

GUARD - engine oil pan, center front

1шт.

3

R48345

COVER

- oil drain, center front engine guard

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

5

R48723

GUARD ASSY.

GUARD - engine oil pan, rear front

1шт.

6

R52164

GUARD ASSY.

GUARD - torque converter and transmission brake housings

2шт.

7

R49742

GUARD ASSY.

GUARD - rear, transmission

1шт.

8

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex flange, 5/8 NC x 2 inch, grade 8

24шт.

9

R48231

COVER

PLATE - drain cover, rear transmission guard

1шт.

10

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

11

R48004

GUARD ASSY.

GUARD - rear, transmission, used on models with Hyster winch

1шт.

For rear transmission guard used on loader models with rear counterweight, see Figure 9-32. NOTE: For cage nuts welded onto the main frame for undercarriage guard mounting, see Figure 9-38.

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

14

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.
