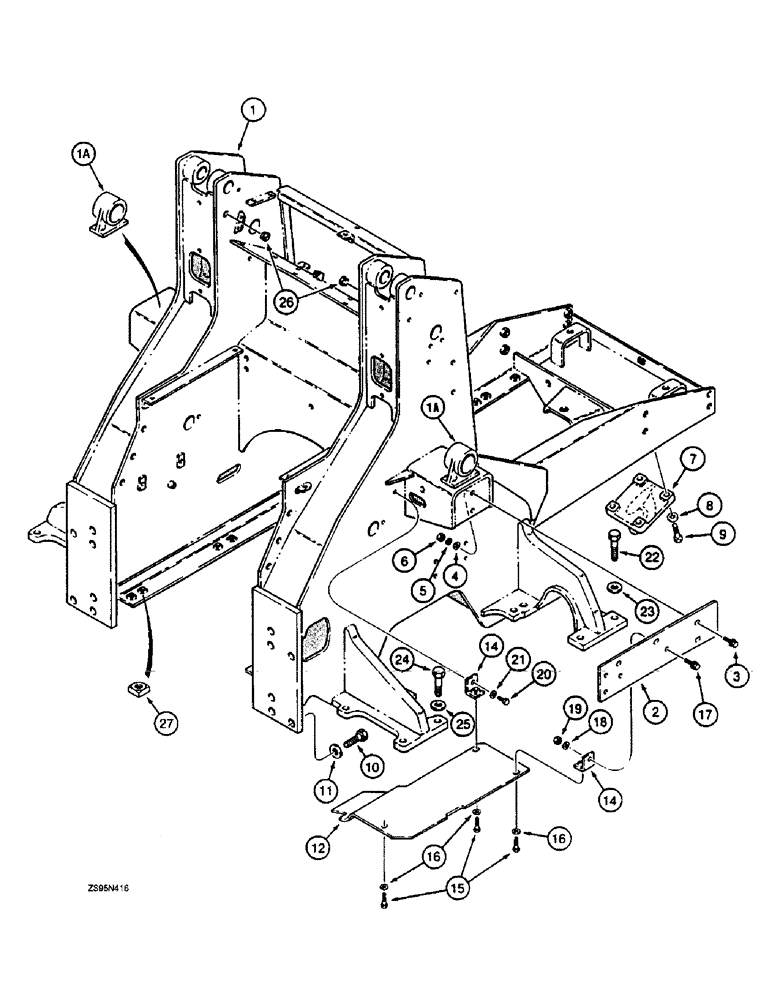

Запчасти Case 1150E (9-038) - MAIN FRAME AND PULL HOOK, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R50618

FRAME

- engine and main, order R57545 frame and two R39921 ROPS mounts below, plus two R57547 pins on Figure 9-2 ref 8A

1шт.

1

R57545

CHASSIS

FRAME - engine and main

1шт.

1a

R39921

BRACKET

BASE - ROPS mounting

2шт.

2

R46159

LARGE PLATE

PLATE - side

2шт.

3

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

8шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

7

71671

PLATE ASSY.

HOOK - pull, if used

1шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, used on models with pull hook

4шт.

9

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch, Used on models with pull hook

4шт.

10

326-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

Use with Loctite 242 Hex, 1"-8 x 2 1/2", G5, Full Thd

12шт.

11

D30196

WASHER

- flat, special, 1 inch, hardened

12шт.

12

R46483

GUARD ASSY.

GUARD - right-hand front cover

1шт.

13

R46484

GUARD ASSY.

GUARD - left-hand front cover, not shown

1шт.

14

R47815

ANGLE

BRACKET - guard support

4шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

16

R24718

WASHER

- flat, hardened, special

6шт.

17

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

18

R24718

WASHER

- flat, hardened, special

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

20

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

2шт.

21

R24718

WASHER

- flat, hardened, special

2шт.

22

26-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

- hex, 1 NC x 3 inch, grade 8, front

12шт.

23

R46879

SPACER

- main frame mounting, 1 inch (25 mm) long, to track frame, front

12шт.

24

326-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

Rear Hex, 3/4"-10 x 3", G8

8шт.

25

R30398

SPACER

- main frame mounting to track frame, rear

8шт.

26

353-12

PLUG,Cap, .667" OD

- tapered, plastic, 11/16 inch OD, used on models with a cab only, if used

2шт.

27

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

- heavy square, 5/8 inch NC, cage, weld-on, for mounting undercarriage guards

24шт.

27a

D35240

CAGE

- weld on, for 5/8 inch NC nut, not shown

1шт.
