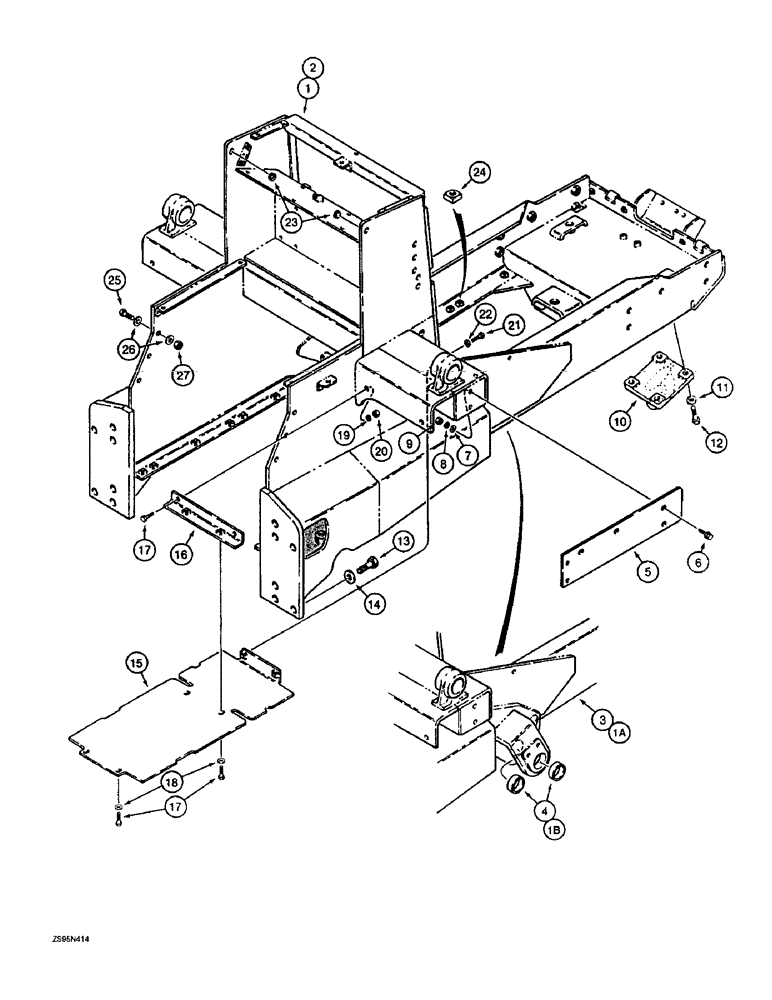

Запчасти Case 1150E (9-034) - MAIN FRAME, HYDRAULIC GUARDS, AND PULL HOOK, DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R51229

CHASSIS

FRAME - engine and main, 62 inch (1575 mm) gauge standard dozer and drawbar models, Includes: Ref. 1B

1шт.

1a

R57433

KIT

FRAME - engine and main, 62 inch (1575 mm) gauge long track dozer models, was R55010, Includes: Ref. 1B

1шт.

1b

L70379

BUSHING,63.75mm ID x 76.2mm OD x 31.75mm L

- frame, 62 inch gauge long track dozer models

4шт.

2

R50617

CHASSIS

FRAME - engine and main, 74 inch (1880 mm) gauge LGP and wide track dozer models, Includes: Ref. 4

1шт.

3

R57202

FRAME

- engine and main, 74 inch (1880 mm) gauge long track angle tilt inside dozer models, Includes: Ref. 4

1шт.

4

L70379

BUSHING,63.75mm ID x 76.2mm OD x 31.75mm L

- C-frame pivot, long track inside dozer models only

4шт.

5

R45764

LARGE PLATE

PLATE - side frame

2шт.

6

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

8шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

10

71671

PLATE ASSY.

HOOK - pull, if used

1шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, special, hardened, used on models with pull hook

4шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch, Used on models with pull hook

4шт.

13

326-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

Use with Loctite 242, final drive housing to main frame Hex, 1"-8 x 2 1/2", G5, Full Thd

12шт.

14

D30196

WASHER

- flat, special, hardened

12шт.

15

R46334

HOOD

GUARD - hydraulic lines, bolts to main frame

2шт.

16

R46325

ANGLE BAR

BRACKET - guard mounting

2шт.

17

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

12шт.

18

R24718

WASHER

- flat, hardened, special

8шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

22

R24718

WASHER

- flat, hardened, special

4шт.

23

353-11

PLUG,Cap, .610" OD

- tapered, 5/8 inch OD, used on models with a cab only, if used

2шт.

24

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

- heavy square, 5/8 inch NC, cage, weld-on, for mounting undercarriage guards

24шт.

25

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 5

6шт.

26

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

12шт.

27

25-1010

NUT,5/8"-11, G5

6шт.
