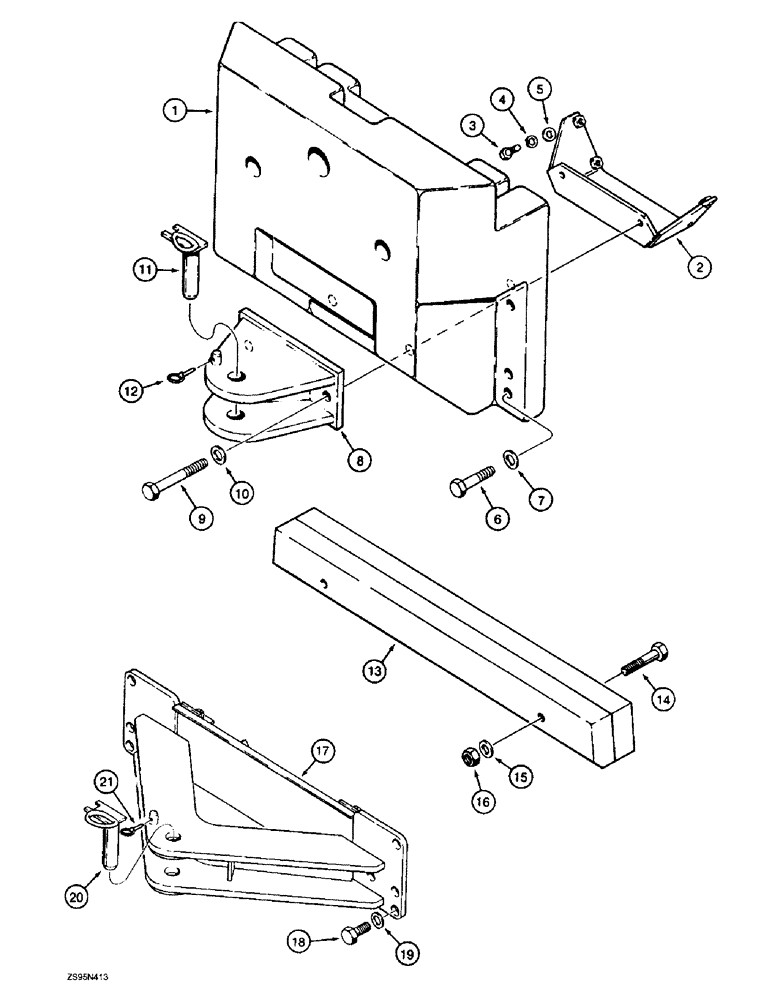

Запчасти Case 1150E (9-032) - COUNTERWEIGHTS AND DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

R53044

BALANCER

COUNTERWEIGHT - rear, 2900 lbs (1315 kg), loader models w/o equipment

1шт.

2

R53043

SKIRT COVER

GUARD - transmission, lower, rear counterweight, loader models w/o rear equipment l

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Rear counterweight, Loader models w/o rear equipment Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Rear counterweight, Loader models w/o rear equipment 1/2"

4шт.

5

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch, rear counterweight, loader models w/o rear equipment

4шт.

6

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

- hex, 1 NC x 4-1/2 inch, rear counterweight, loader models w/o rear equipment

8шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, hardened, rear counterweight, loader models w/o rear equipment

8шт.

8

R53047

DRAWBAR

- used with item 1 rear counterweight, loader models w/o , rear counterweight, loader models w/o rear

1шт.

9

326-20120

BOLT,Hex, 1-1/4" - 7 x 7-1/2", Gr 8

- hex, 1-1/4 NC x 7-1/2 inch, grade 8, rear counterweight, loader models w/o rear equipment

2шт.

10

D43745

WASHER

- flat, special, hardened, rear counterweight, loader models w/o rear equipment

2шт.

11

R26750

PIN

- drawbar, rear counterweight, loader models w/o rear equipment

1шт.

12

A30338

PIN

- self-locking, special, rear counterweight, loader models w/o rear equipment

1шт.

13

R46930

BALANCER

COUNTERWEIGHT - rear, 500 lbs (227 kg), must be used on loader models with a winch and clam bucket

1шт.

14

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

- hex, 1 NC x 5 inch, rear counterweight, loader models w/ a winch & clam bucket

2шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, hardened, rear counterweight, loader models w/ a winch & clam bucket

2шт.

16

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, Rear counterweight, loader models w/ a winch & clam bucket

2шт.

17

R43756

DRAWBAR

- used without rear mounted equipment

1шт.

18

413-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5

- hex, 1 NC x 2-1/4 inch, drawbar, models w/o rear mounted eqiupment

8шт.

19

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, hardened, drawbar, models w/o rear mounted equipment

8шт.

20

R26750

PIN

- drawbar models w/o rear mounted equipment

1шт.

21

A30338

PIN

- self-locking, special, drawbar models w/o rear mounted equipmenT

1шт.
