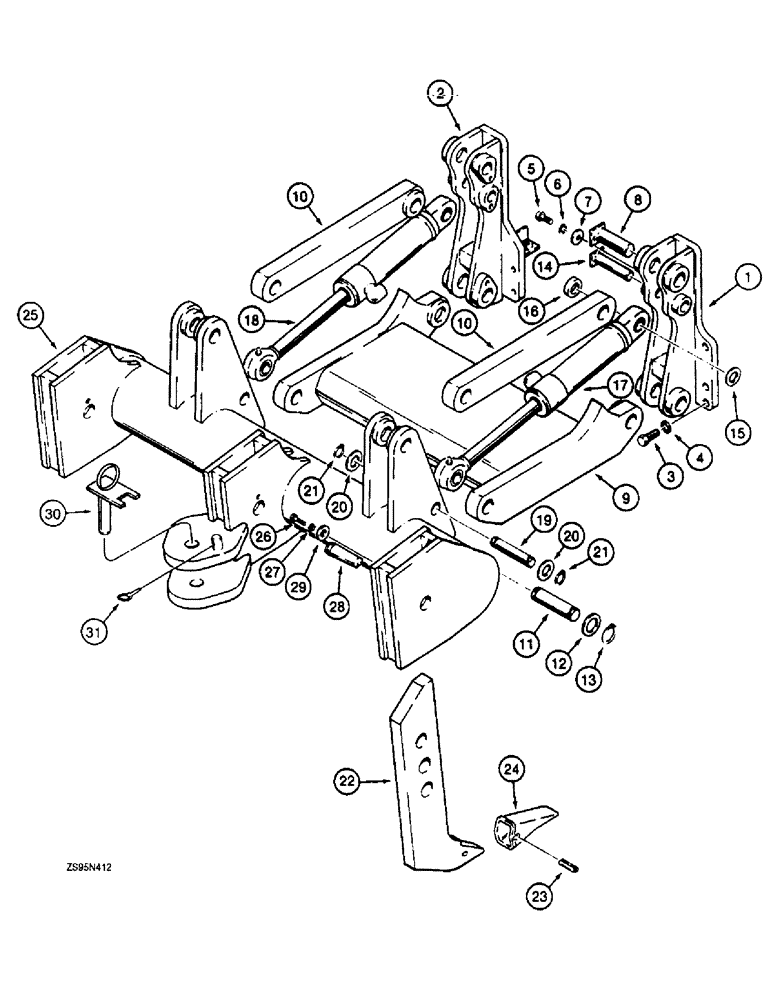

Запчасти Case 1150E (9-030) - RIPPER (09) - CHASSIS/ATTACHMENTS

1

R38913

PLATE

BRACKET - mounting, right-hand

1шт.

2

R38914

PLATE

BRACKET - mounting, left-hand

1шт.

3

326-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

- hex, 1 NC x 2-3/4 inch, grade 8

18шт.

4

D30196

WASHER

- flat, special, hardened

18шт.

5

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

BOLT, Locking, 5/8"-11 x 1 1/4", G5, Full Thd

6шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

6шт.

8

R38745

PIN

- mounting, lower and upper, Serial Range: arms-brackets

4шт.

9

R38907

ARM

- ripper, lower

1шт.

10

R36114

ARM

- ripper, upper

2шт.

11

R26748

PIN

- mounting, arm to tool bar, 2 x 6-13/16 inch, used with R51063 tool bar only (ref 25)

4шт.

11

R28375

PIN,179.83mm OD x 50.8mm L

- mounting, arm to tool bar, 2 x 7-1/16 inch, used with R51063 or R57305 tool bar (ref 25)

4шт.

12

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2-1/16 x 3 x 1/8 inch, special

8шт.

13

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

8шт.

14

R38178

PIN

- mounting, cylinder

2шт.

15

R26690

WASHER

SPACER - washer, outer

2шт.

16

R26689

RING

SPACER - washer, inner

2шт.

17

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - ripper, 4 (102) ID x 10 inch (245 mm) stroke, right-hand, parts list Figure 8-78

1шт.

18

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - ripper, 4 (102) ID x 10 inch (245 mm) stroke, left-hand, parts list Figure 8-78

1шт.

19

R30449

PIN

- mounting, cylinder to tool bar, 2 x 6-13/16 inch, used with R51063 tool bar only (ref 25), order R57306 pin for service

2шт.

19

R57306

PIN,44.45mm OD x 179.8mm L

- mounting, cylinder to tool bar, used with R51063 or R57305 tool bar (ref 25)

2шт.

20

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch, special

4шт.

21

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

22

122237A1

SHANK, BUCKET TOOTH

SHANK - ripper tooth

3шт.

23

L32090

PIN

PIN - flex

3шт.

24

D55468

TOOTH

- tooth, standard forged

3шт.

25

R51063

BEAM

BAR - tool, includes welded-on drawbar, no longer used, order R57305 bar, two R57306 pins (ref 19) and four R28375 pins (ref 11)

1шт.

25

R57305

BEAM

BAR - tool, includes welded-on drawbar

1шт.

26

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

BOLT, Locking, 5/8"-11 x 1 1/4", G5, Full Thd

3шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

28

R45977

AXLE PIN,50.8mm OD x 139.7mm L

PIN - mounting, shank mounting

3шт.

29

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat, special, pin retaining

3шт.

30

R26750

PIN

- drawbar

1шт.

31

A30338

PIN

- self-locking, special, drawbar pin

1шт.
