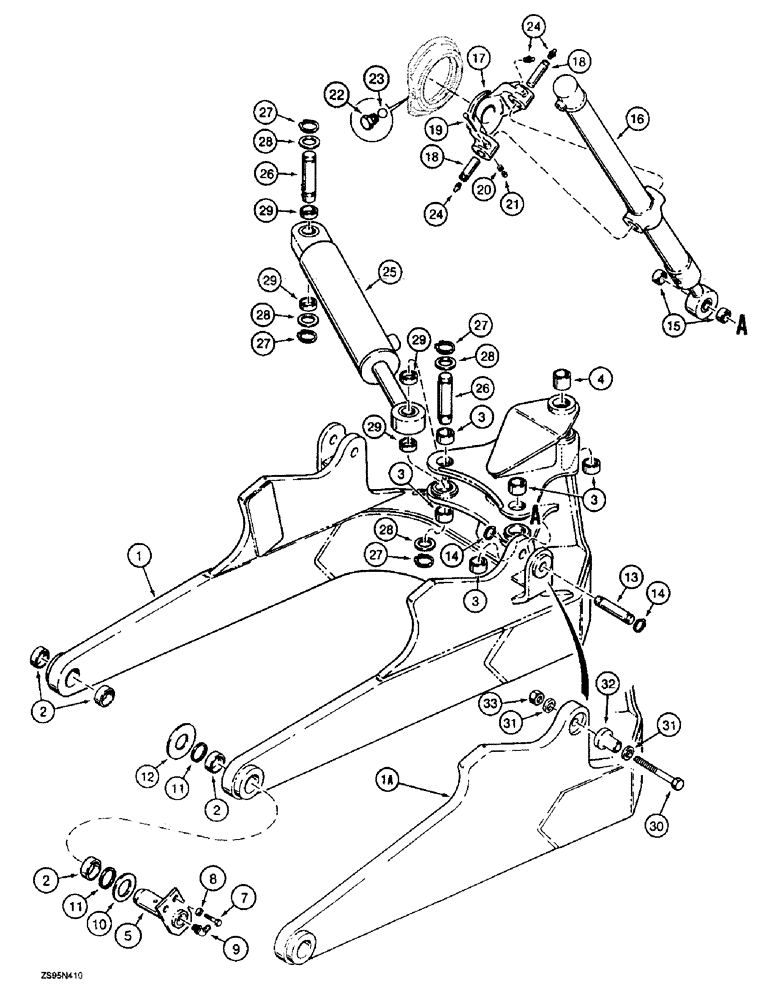

Запчасти Case 1150E (9-024) - LONG TRACK ANGLE TILT DOZER MODELS, C-FRAME, LIFT AND ANGLE CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

R54727

FRAME

C-FRAME - long track angle tilt dozer model, no longer used, order R58486 C-frame and two each of R58489 pin, R58570 spacer, 131-1152 nut and 326-1276 bolt, ref 1A and 30 - 33 below

1шт.

1a

R58486

FRAME

C-FRAME - long track angle tilt dozer model, Includes: Ref. 2 - 4

1шт.

2

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

- 2-1/2 ID x 1 inch long, C-frame mounting ,at main frame

4шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- 2 ID x 1-1/4 inch long

5шт.

4

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- 2 ID x 2 inch long

1шт.

5

R53254

PIN,63.5mm OD x 195mm L

- trunnion, C-frame to main frame, (replaces R53799)

2шт.

7

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex flange, 5/8 NC x 2 inch, grade 8

4шт.

8

R53353

WASHER,16.13mm ID x 22.23mm OD x 15.3mm L

SPACER - bolt

4шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch, special short

2шт.

10

95-81156

WASHER,2.56" ID x 4" OD x 0.11" Thk

- flat, 2-9/16 x 4 x 1/8 inch

1шт.

11

L113522

SEAL

- U-cup, trunnion pin

4шт.

12

95-31262

WASHER,2.62" ID x 5" OD x 0.24" Thk

- flat, 2-5/8 x 5 x 1/4 inch

2шт.

13

R56582

PIN,38.1mm OD x 177mm L

- lift cylinder to C-frame, 5-7/8 inch retaining lenth, if used

2шт.

Retaining length is betwen snap ring grooves. Overall length is 6.96".

1шт.

14

D25279

SNAP RING,M35, Int

RING - snap, lift cylinder pin, if used

4шт.

15

R33693

SPACER

- pin, lift cylinder mounting, if used

4шт.

16

G109819

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 817.63mm Stroke

CYLINDER ASSEMBLY - 3-1/4 (83) ID x 32-3/16 inch (818 mm) stroke, lift, long track angle tilt dozer models, parts list Figure 8-64

2шт.

17

R54810

TRUNNION

- lift cylinder

2шт.

18

D36176

PIN,38.1mm OD x 63.5mm L

- trunnion

4шт.

19

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

D28481

PLUG

- special, trunnion

2шт.

23

211-1024

BALL,3/4" Dia

- chrome alloy steel, 3/4 inch, grade 24

50шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

6шт.

25

G110702

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 381mm Stroke

CYLINDER ASSEMBLY - 5 (127) ID x 15 inch (381 mm) stroke, angle, long track angle tilt dozer models, parts list Figure 8-76

2шт.

26

R54768

PIN,50.77mm OD x 195.8mm L

- angle cylinders, 6-1/4 inch retaining length

4шт.

27

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

8шт.

28

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

29

R53383

WASHER,52.32mm ID x 57.15mm OD x 17mm L

SPACER - pin, angle cylinder mounting

8шт.

30

326-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 8

2шт.

31

R58570

SPACER

WASHER - special

4шт.

32

R58489

PIN,88.9mm OD x 60.6mm L

Mount - Lift cylinder rod, Serial Range: eye-C-frame

2шт.

33

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.
