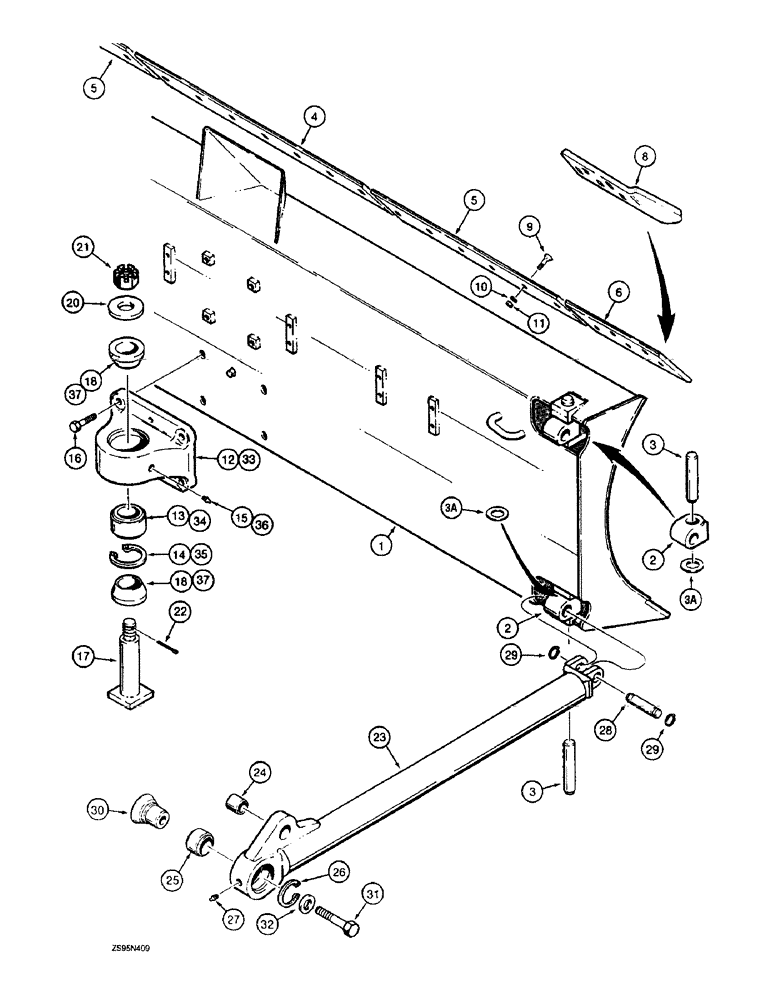

Запчасти Case 1150E (9-020) - ANGLE TILT PITCH DOZER MODELS, DOZER BLADE AND STRUTS (09) - CHASSIS/ATTACHMENTS

1

R57327

BULL BLADE

BLADE ASSEMBLY - 62 inch (1575 mm) gauge standard dozer models, was R52874, if used, Includes: Ref. 2 - 3A

1шт.

1

R57329

BULL BLADE

BLADE ASSEMBLY - 74 inch (1880 mm) gauge wide track dozer models, was R52875, if used, Includes: Ref. 2 - 3A

1шт.

2

70315

UNIVERSAL JOINT

BRACKET - tilt cylinder and strut mounting

4шт.

3

R45247

AXLE PIN

PIN - bracket

4шт.

3a

A163363

WASHER

- flat, special

1шт.

4

R44885

EDGE

- cutting, 33 inch (840 mm) long, three used on 62 inch (1575 mm) gauge standard dozer models, one used in center position on 74 inch (1880 mm) gauge wide track dozer models

1-3шт.

5

R45446

EDGE

- cutting, 39 inch (989 mm) long, used in outer positions on 74 inch (1880 mm) gauge wide track dozer models only

2шт.

6

R42470

EDGE, CUTTING

EDGE - cutting, end, standard, if used

2шт.

7

R41351

EDGE, CUTTING

EDGE - cutting, left-hand, heavy duty, if used, not shown

1шт.

8

R41352

EDGE, CUTTING

EDGE - cutting, right-hand, heavy duty, if used

1шт.

9

R56473

PLOW BOLT

BOLT - plow, dome head, 5/8 NC x 2-1/4 inch grade 8

28-30шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

28-30шт.

11

29-1010

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8

28-30шт.

R45972

PIVOT

BRACKET ASSEMBLY - pivot, no longer used, order R58346 bracket assembly and R55700 spacer ref 33 - 37 on Figure 9-22, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

BRACKET - pivot

1шт.

13

R41800

SPHERICAL BEARING,69.85mm ID x 111.13mm OD x 61.11mm W

- self-aligning

1шт.

14

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , bushing 4.331", Int, #433

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

16

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

4шт.

17

R45099

PIN

- pivot

1шт.

18

R45224

SPACER

- for R45972 bracket, 41 mm height

2шт.

20

R26660

WASHER,40.39mm ID x 101.6mm OD x 12mm Thk

- flat

1шт.

21

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2 inch NC

1шт.

22

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

R45072

STRUT

ASSEMBLY - 62 inch (1575 mm) gauge standard dozer models, Includes: Ref. 23 - 27

2шт.

R51281

STRUT

ASSEMBLY - 74 inch (1880 mm) gauge wide track dozer models, right-hand, Includes: Ref. 23 - 27

1шт.

R51283

FRONT IDLER

STRUT ASSEMBLY - 74 inch (1880 mm) gauge wide track dozer models, left-hand, not shown, Includes: Ref. 23 - 27

1шт.

23

NSS

NOT SOLD SEPARAT

STRUT - C-frame to blade, right-hand shown

1шт.

24

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tilt cylinder mounting, 1-1/2 ID x 1-1/2 inch long

1шт.

25

D23601

HOUSING

BUSHING - lower, self-aligning

1шт.

26

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, , Bushing 3.156", Int, #315

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

28

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - pivot, strut to dozer blade

2шт.

29

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin #125, Ext

4шт.

30

R46802

PIN

- strut to angle cylinder slide bracket

2шт.

31

326-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

2шт.

32

107744A1

WASHER

- flat, special, hardened

2шт.

R58346

PIVOT

BRACKET ASSEMBLY - pivot, Includes: Ref. 33 - 36

1шт.

33

NSS

NOT SOLD SEPARAT

BRACKET - pivot

1шт.

34

R55698

SPHERICAL BEARING,69.85mm ID x 120.65mm OD x 70.87mm W

- self-aligning, 4-3/4 inch (121 mm) OD, sealed

1шт.

35

39325

SNAP RING,4.75", Int, #475

Ring, Snap, , bushing 4.75", Int, #475

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

37

R55700

SPACER

- pin mounting, for R58396 bracket, 36 mm height

2шт.
