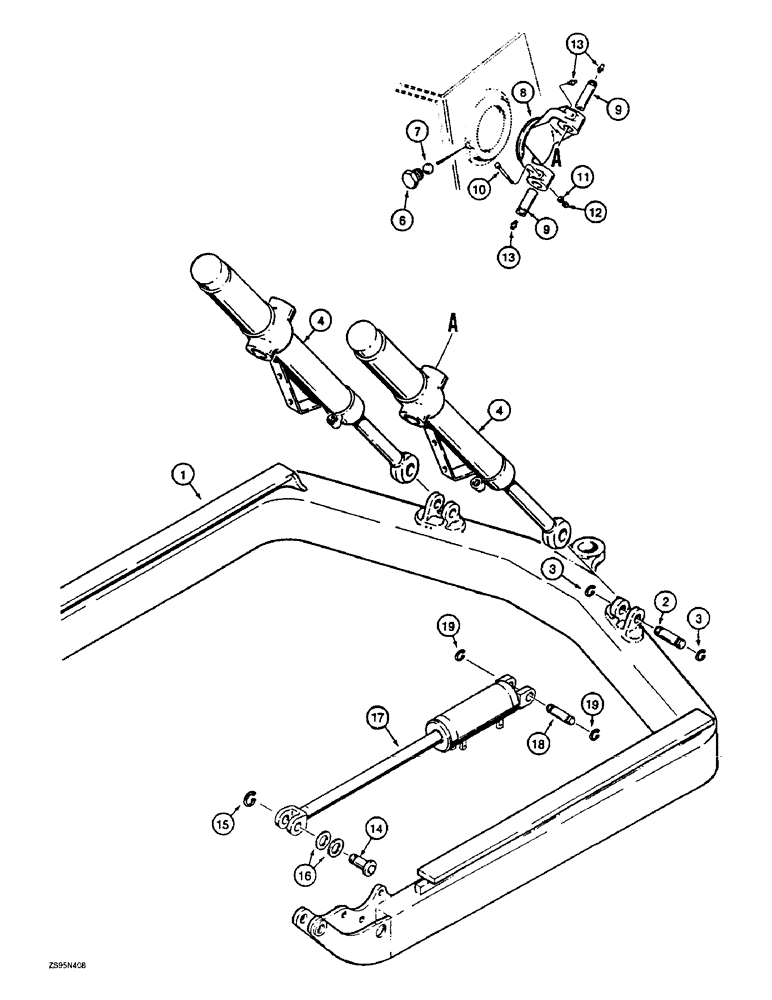

Запчасти Case 1150E (9-018) - ANGLE TILT PITCH DOZER MODELS, C-FRAME AND CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

C-FRAME - see Figure 9-16 for correct C-frame

1шт.

2

D32930

PIN,38.1mm OD x 127mm L

- pivot, lift, Serial Range: cylinder-C-frame

2шт.

3

D25279

SNAP RING,M35, Int

RING - snap, pin

4шт.

4

G107334

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 3-1/4 (83) ID x 36-11/16 inch (932 mm) stroke, parts list Figure 8-66

2шт.

6

D28481

PLUG

- special, trunnion

2шт.

7

211-1024

BALL,3/4" Dia

- chrome alloy steel, 3/4 inch, grade 24

50шт.

8

R54810

TRUNNION

- lift cylinder

2шт.

9

D36176

PIN,38.1mm OD x 63.5mm L

- trunnion

4шт.

10

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

6шт.

14

D52386

PIN

- tilt, Serial Range: cylinder-strut

2шт.

15

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

16

D30042

WASHER

- flat, special, outer side of cylinder

4шт.

17

G105458

CYLINDER ASSY.

CYLINDER ASSEMBLY - tilt, 4 (102) ID x 5-3/16 inch (132 mm) stroke, parts list Figure 8-72

2шт.

18

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - pivot,tilt cylinder to dozer blade

2шт.

19

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin #125, Ext

4шт.
