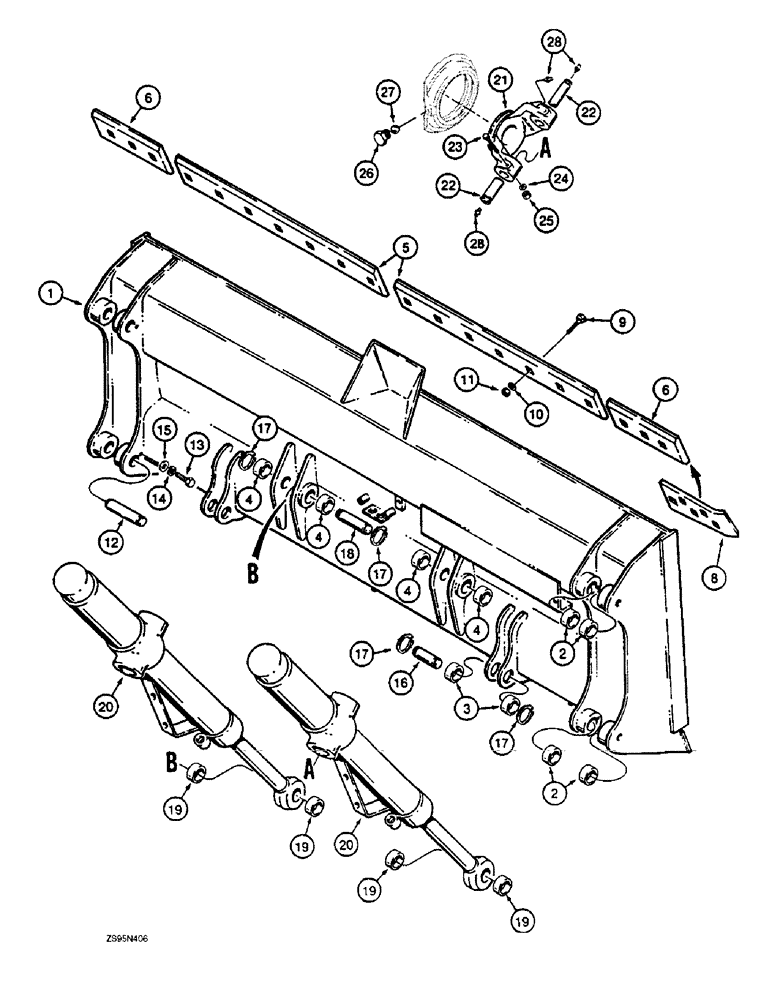

Запчасти Case 1150E (9-014) - LGP TILT DOZER MODELS, BLADE AND LIFT CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

R57325

BULL BLADE

BLADE ASSEMBLY - 129-1/2 inch (3289 mm) wide, was R45443, Includes: Ref. 2 - 4

1шт.

2

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- 1-3/4 ID x 1-1/2 inch long, right-hand end of blade only, upper and lower

4шт.

3

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- 3/4 inch (19 mm) long, inner push beam mounting, right-hand side only

2шт.

4

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- 1-3/4 ID x 1 inch long, lift cylinder mounting

4шт.

5

R45447

EDGE, CUTTING

EDGE - cutting, center

2шт.

6

R42470

EDGE, CUTTING

EDGE - cutting, end, standard, if used

2шт.

7

R41351

EDGE, CUTTING

EDGE - cutting, heavy duty, left-hand end, if used, not shown

1шт.

8

R41352

EDGE, CUTTING

EDGE - cutting, heavy duty, right-hand end, if used

1шт.

9

R56473

PLOW BOLT

BOLT - plow, dome head, 5/8 NC x 2-1/4 inch grade 8

28шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

28шт.

11

29-1010

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8

28шт.

12

R45497

PIN

- push beam to blade, outer

2шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

V20216

HOSE

- flat, special, pin retaining

2шт.

16

R45661

PIN

- push beam to blade, inner

2шт.

17

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

8шт.

18

R26725

PIN,152.4mm OD x 44.45mm L

- Lift, Serial Range: cylinder-blade

2шт.

19

R26587

SPACER

- 2 inch (51 mm) OD

4шт.

20

G107365

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 3-1/4 (83) ID x 39-3/16 inch (995 mm) stroke, parts list Figure 8-62

1шт.

21

R54810

TRUNNION

- lift cylinder

2шт.

22

D36176

PIN,38.1mm OD x 63.5mm L

- trunnion

4шт.

23

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

425-106

NUT,3/8"-16, Cl 5

4шт.

26

D28481

PLUG

- special, trunnion

2шт.

27

211-1024

BALL,3/4" Dia

- chrome alloy steel, 3/4 inch, grade 24

50шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

6шт.
