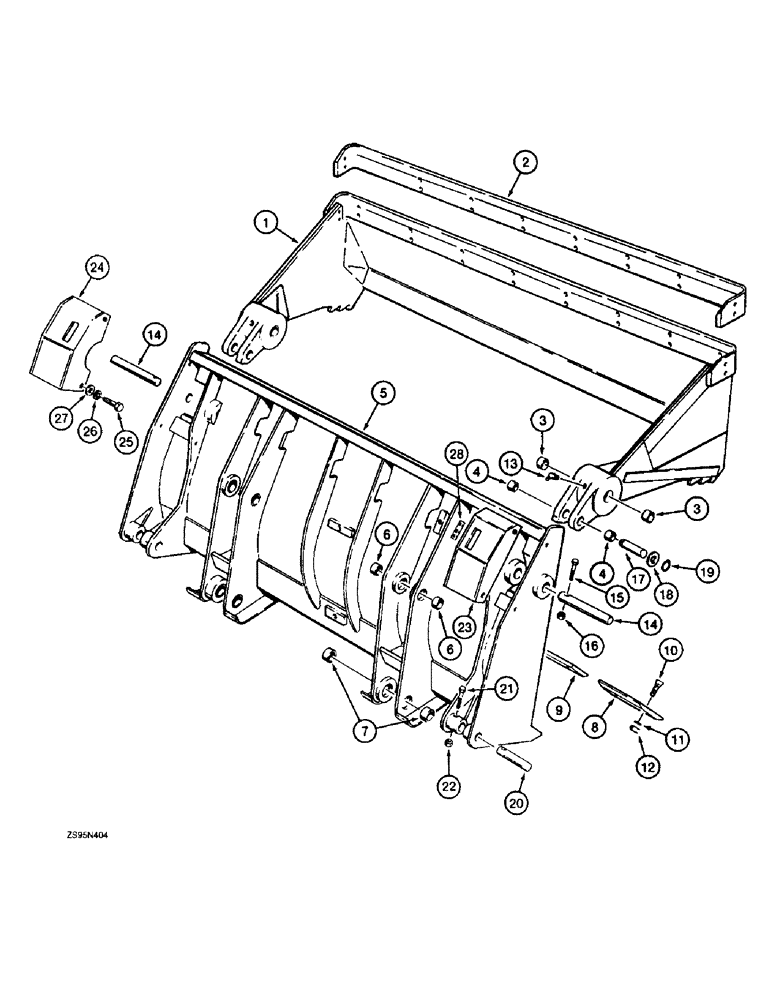

Запчасти Case 1150E (9-010) - LOADER CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

R54190

BUCKET ASSEMBLY - clam, machinery item, order from Machinery Price List, 1-3/4 cubic yard (1.338 cubic meter), Includes: Ref. 1 - 7

1шт.

1

R54192

BUCKET

CLAM ASSEMBLY - bucket, Includes: Ref. 2 - 4

1шт.

2

R54188

EDGE, CUTTING

EDGE - cutting, clam assembly

1шт.

3

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- clam pivot, 1-1/2 inch long

4шт.

4

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- cylinder pivot, 1-3/4 ID x 1-1/4 inch long

4шт.

5

R53343

BUCKET

BLADE ASSEMBLY - bucket, Includes: Ref. 6 & 7

1шт.

6

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- upper

4шт.

7

R26958

BUSHING

- lower

4шт.

8

R53319

EDGE, CUTTING

EDGE - cutting, blade, ends

2шт.

9

R53318

EDGE, CUTTING

EDGE - cutting, blade, center

1шт.

10

20-21240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 8

BOLT - plow, 3/4 NC x 2-1/2 inch, grade 8

15шт.

11

492-11075

LOCK WASHER,3/4"

3/4"

15шт.

12

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

15шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

14

D50491

PIN

- pivot, clam

2шт.

15

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

2шт.

16

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

17

D38481

PIN

- pivot, clam cylinder, rod end

2шт.

18

95-81198

WASHER,1.88" ID x 4" OD x 0.18" Thk

- flat, 1-7/8 x 4 x 3/16 inch

4шт.

19

D25280

SNAP RING,#175, Ext

Ring, Snap, , cylinder pin #175, Ext

4шт.

20

D50490

PIN

- clam cylinder, closed end

2шт.

21

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

2шт.

22

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

23

R29976

GUARD

- cylinder, right-hand

1шт.

24

R29975

GUARD

- cylinder, left-hand

1шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

27

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

8шт.

28

321-1706

DECAL

- clam bucket position indicator

1шт.
