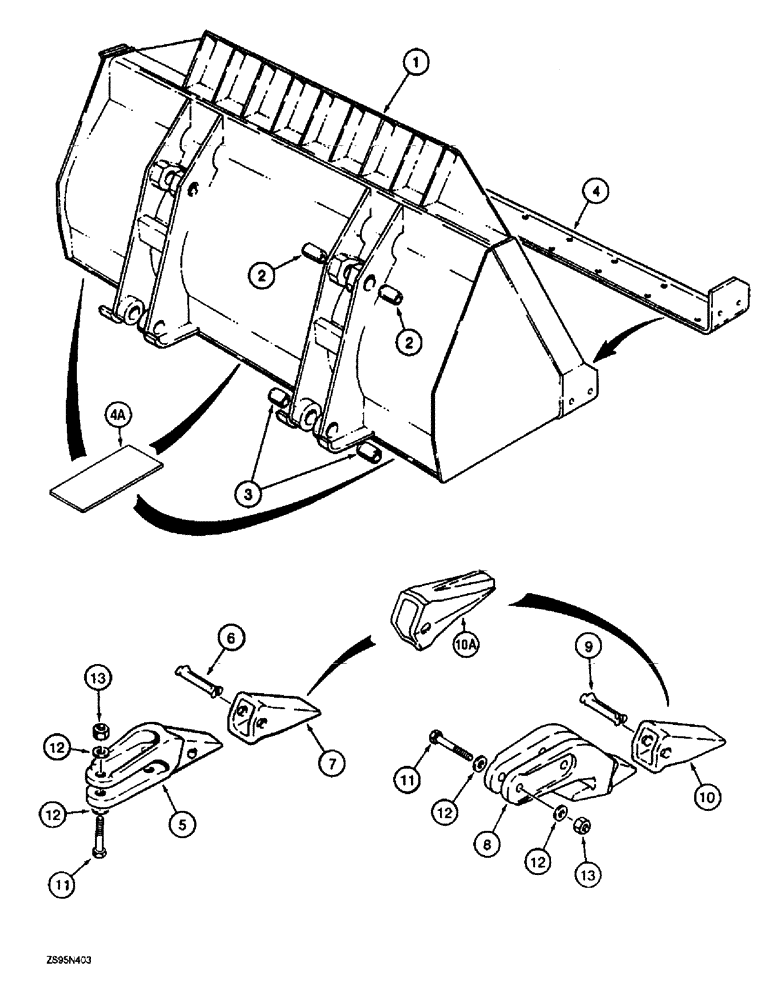

Запчасти Case 1150E (9-008) - LOADER BUCKET AND TEETH, 2 CUBIC YARD BUCKET (1.529 CUBIC METER) HEAVY DUTY BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

1

R54189

BUCKET

ASSEMBLY - loader, order from Machinery Price List, 2 cubic yard (1.529 cubic meter), Includes: Ref. 2 - 4A

1шт.

2

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- bucket, upper

4шт.

3

R26958

BUSHING

- bucket, lower

4шт.

4

R54188

EDGE, CUTTING

EDGE - cutting, bucket

1шт.

4a

R52652

LARGE PLATE

PLATE - wear, bucket, weld-on

3шт.

R54193

TOOTH

ASSEMBLY - bucket, center, Heavy duty bucket teeth, Includes: Ref. 5 - 7

6шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth assembly, Heavy duty bucket teeth

1шт.

6

L32090

PIN

PIN - flex, Heavy duty bucket teeth

1шт.

7

D55468

TOOTH

- tooth, standard forged, if used, Heavy duty bucket teeth

1шт.

R54194

TOOTH

ASSEMBLY - corner, left-hand tooth assembly shown, Heavy duty bucket teeth, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

SHANK - corner tooth, Heavy duty bucket teeth

1шт.

9

L32090

PIN

PIN - flex, Heavy duty bucket teeth

1шт.

10

D55468

TOOTH

- tooth, standard forged, if used, Heavy duty bucket teeth

1шт.

10a

D59702

TOOTH

POINT - tooth, star, service replacement option, if used, Heavy duty bucket teeth

1шт.

11

25894R1

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

- hex, 1 NC x 3-1/2 inch, grade 8, Heavy duty bucket teeth

16шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, hardened, Heavy duty bucket teeth

32шт.

13

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, , Heavy duty bucket teeth 1"-8, GC

16шт.
