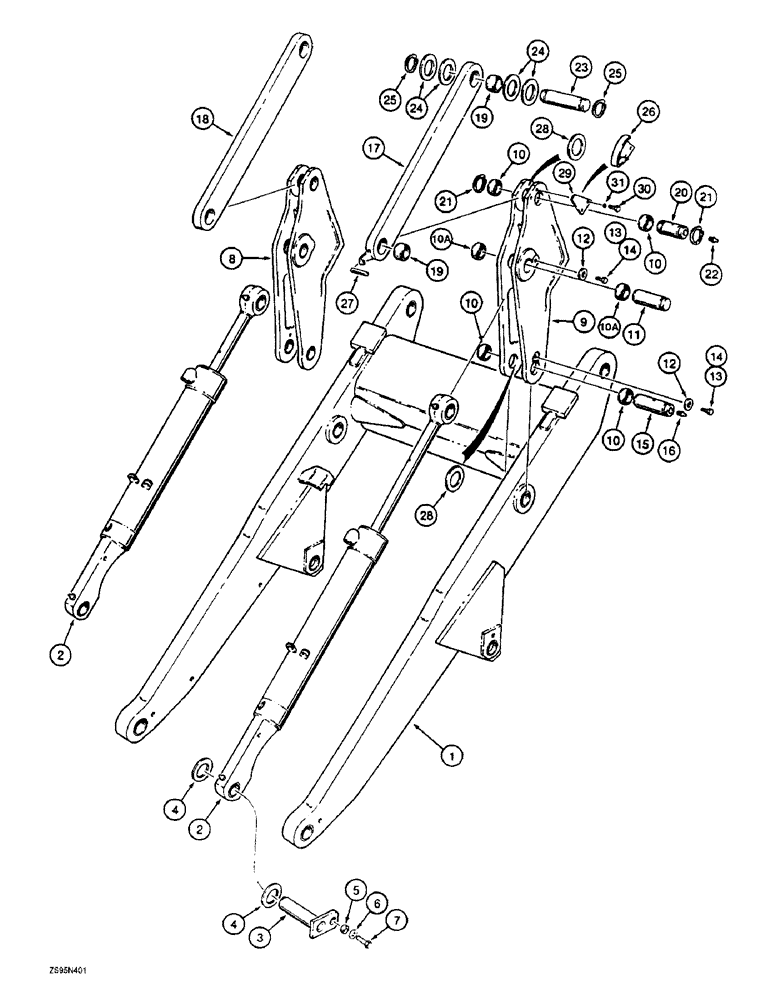

Запчасти Case 1150E (9-004) - LOADER LIFT FRAME, BUCKET CYLINDERS AND LINKS (09) - CHASSIS/ATTACHMENTS

1

R56019

LOWER LINK

FRAME - loader lift, for clam bucket, for bushings see Figure 9-2

1шт.

2

G107039

CYLINDER ASSY.

CYLINDER ASSEMBLY - loader bucket, 4 inch (102 mm) ID x 36-1/4 inch (921 mm) stroke, parts list Figure 8-58

2шт.

3

R45434

PIN

- closed end of bucket cylinder to main frame

2шт.

4

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

5

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

- pin

2шт.

6

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

7

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Use with Loctite 242 Hex, 3/4"-10 x 2", G8

2шт.

8

R50395

LINKAGE YOKE

LEVER - bucket tilt, left-hand, Includes: Ref. 10

1шт.

9

R50396

LINKAGE YOKE

LEVER - bucket tilt, right-hand, Includes: Ref. 10

1шт.

10

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- 2 (51) ID x 3/4 inch (19 mm) long, four per each of R50395 and R50396 levers

4шт.

10

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- 2 (51) ID x 7/8 inch (22 mm) long, center, two per each of R50395 and R50396 levers

2шт.

11

R41198

PIN

- bucket cylinder, rod end

2шт.

12

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat, special, pin retaining

4шт.

13

B17068

ADHESIVE

- Loctite No. 242, 6 ml tube, use with item 14 bolt

1шт.

14

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch, replaces 1-1/4 inch bolt and lock washer used on some models

4шт.

15

R48926

PIN

- bucket lever to lift frame

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

17

R27164

LINK

- bucket, right-hand, Includes: Ref. 19

1шт.

18

R27020

LINK

- bucket, left-hand, Includes: Ref. 19

1шт.

19

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- 2 ID x 1-1/2 inch long, two per each of R27164 and R27020 links

2шт.

20

R41197

PIN

- bucket lever to bucket link

2шт.

21

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

4шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

23

R27061

PIN

- pivot,bucket, Serial Range: link-bucket

2шт.

24

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2-1/16 x 3 x 1/8 inch, special

8шт.

25

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

4шт.

26

R50802

INDICATOR

- clam bucket position, for decal see Figure 9-130

1шт.

27

H300145

PIN

POINTER - clam bucket

1шт.

28

D37449

SHIM,.0747" Thk

(2-1/32" ID) .0747" Thk

1шт.

29

R50399

GAUGE

INDICATOR - leveling, standard buckets

1шт.

30

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
