Запчасти Case 1150E (8-132) - ANTICAVITATION VALVE (08) - HYDRAULICS

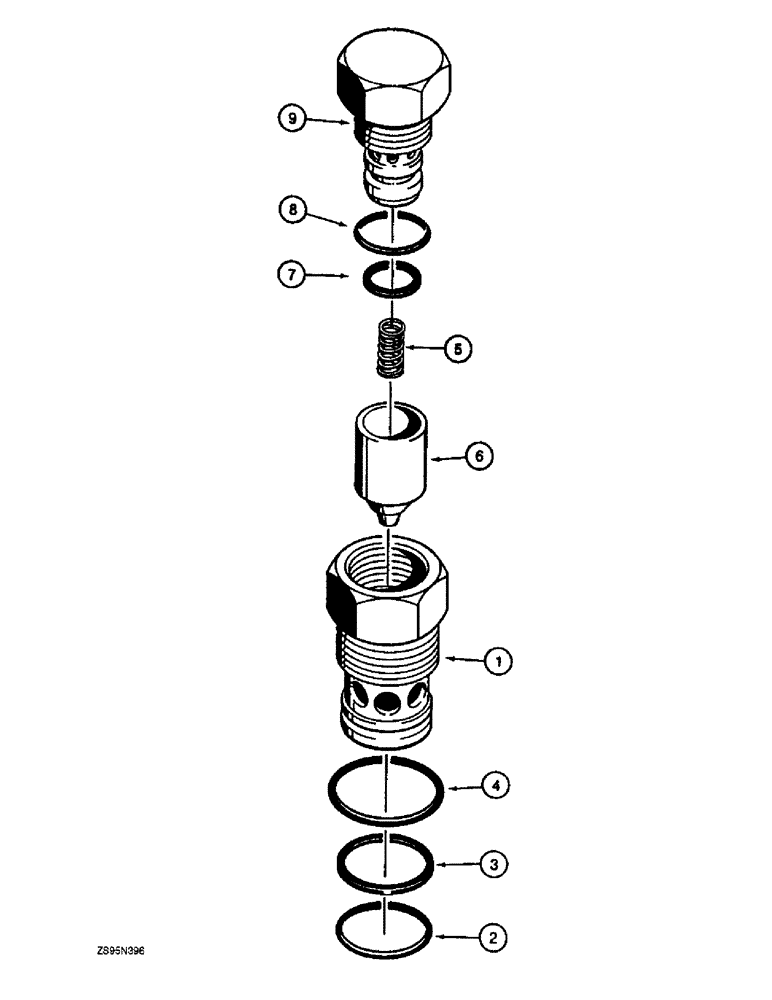

Схема запчастей Case 1150E - (8-132) - ANTICAVITATION VALVE (08) - HYDRAULICS
6
9
3
1
7
8
4
2
5

Артикул

Название

Примечание

Количество

N14024

VALVE

ASSEMBLY - anticavitation, lift sections, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Body -021, 90 Duro, .926" ID x .070" Thk

1шт.

3

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

RING - backup, small O-ring

1шт.

4

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk, Body

1шт.

5

N9267

SPRING

- plunger

1шт.

6

N9263

PISTON

POPPET - anticavitation

1шт.

7

N13271

O-RING

SEAL - special, with O-ring

1шт.

8

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Plug -116, 70 Duro, .737" ID x .103" Thk

1шт.

9

N14025

PLUG

- anticavitation

1шт.

Выбрано товаров: 10
