Запчасти Case 1150E (8-128) - DOZER TILT, TILT/PITCH AND ANGLE SECTIONS (08) - HYDRAULICS

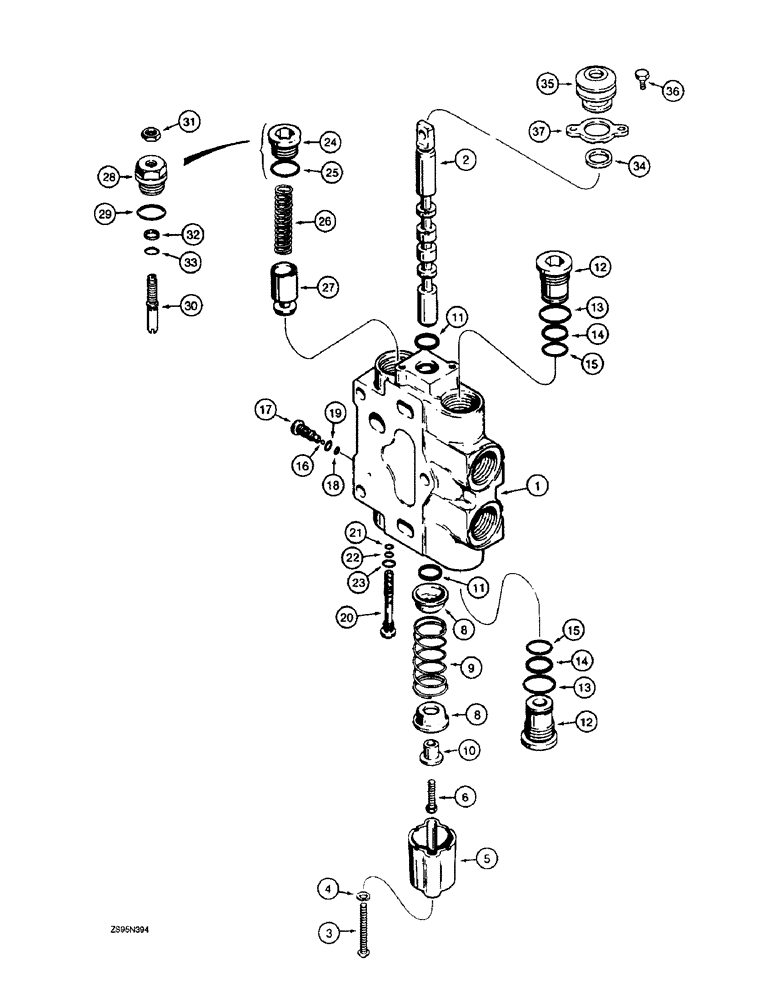

Схема запчастей Case 1150E - (8-128) - DOZER TILT, TILT/PITCH AND ANGLE SECTIONS (08) - HYDRAULICS
30
13
25
14
27
21
19
9
8
12
31
28
22
14
34
6
11
12
15
8
2
29
24
17
36
18
1
23
37
35
33
5
20
32
13
26
3
4
10
15
16
11

Артикул

Название

Примечание

Количество

N14017

VALVE

SECTION ASSEMBLY - tilt/pitch and angle sections for ATP dozer models, angle section only for long track angle tilt dozer models, ID No. 252, Includes: Ref. 1 - 37

1-2шт.

S300687

HYD VALVE SECTION

SECTION ASSEMBLY - dozer tilt, long track angle tilt dozer models only, ID No. 258, Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

61-32532

HEX SOC SCREW,1/4"-20 x 2"

BOLT - hex socket, 1/4 NC x 2 inch

2шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

D78454

HOUSING

- centering spring

1шт.

6

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

BOLT, Locking, 1/4"-20 x 1", G5

1шт.

8

R30191

WASHER

SEAT - centering spring

2шт.

9

R30192

SPRING

- centering, spool

1шт.

10

N7506

SPACER

- spool

1шт.

11

D150707

O-RING,0.862" ID x 1.068" OD

- spool

2шт.

R30167

PLUG

- section body, Includes: Ref. 12 - 15

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG - section assembly

1шт.

R30174

GASKET KIT

KIT - seal

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - large, outer

1шт.

14

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small, inner

1шт.

16

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

1шт.

A47210

PLUG

SHUTTLE ASSEMBLY - secondary, Includes: Ref. 17 - 19

1шт.

17

A47204

PLUG

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref. 18 & 19

1шт.

18

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

19

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

D87080

VALVE

SHUTTLE ASSEMBLY - primary, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

21

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner -009, 90 Duro, .208" ID x .070" Thk

1шт.

22

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Center -010, 90 Duro, .239" ID x .070" Thk

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

24

9841223

PLUG,1-1/16" - 12 ORB

N14017 Section assembly only, Incl. Ref. 25 Hex Soc, 1 1/16"-12 ORB

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

26

R30189

SPRING

- load check

1шт.

27

D87082

VALVE POPPET

POPPET - load check

1шт.

S300688

PLUG

ASSEMBLY - flow limiter, S300687 section assembly only (long track angle tilt models)

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG - flow limiter

1шт.

29

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW - plug assembly

1шт.

31

NSS

NOT SOLD SEPARAT

NUT - plug assembly

1шт.

32

S300736

GASKET

RING - backup, screw O-ring

1шт.

33

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

A48938

KIT

- filter, body and spool, Includes: Ref. 34 - 37

1шт.

34

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

1шт.

35

A47188

COVER

- dust

1шт.

36

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- retainer

2шт.

37

A47196

RETAINER

- filter

1шт.

Выбрано товаров: 45
