Запчасти Case 1150E (8-120) - LOADER LIFT SECTION (08) - HYDRAULICS

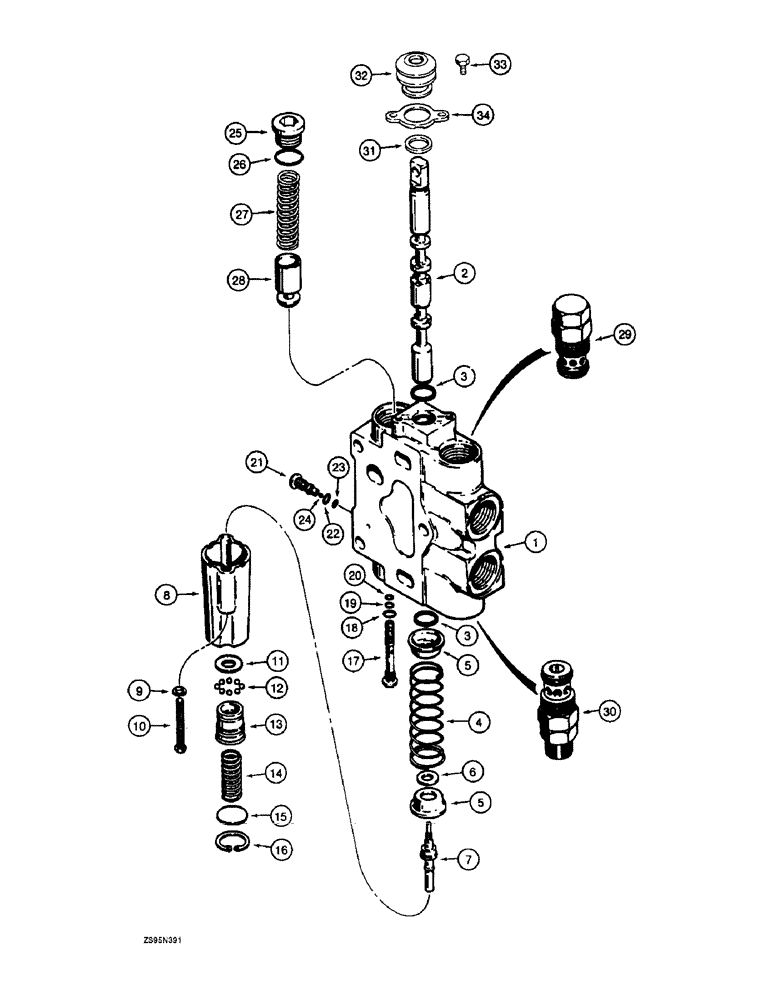

Схема запчастей Case 1150E - (8-120) - LOADER LIFT SECTION (08) - HYDRAULICS
8
15
13
34
2
14
26
30
32
24
1
29
11
7
21
17
22
23
25
4
16
6
27
28
10
19
20
18
9
3
3
33
5
31
12
5

Артикул

Название

Примечание

Количество

N14028

VALVE

SECTION ASSEMBLY - loader lift, ID No. 317, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

D150707

O-RING,0.862" ID x 1.068" OD

- spool

2шт.

4

R30192

SPRING

- centering, spool

1шт.

5

R30191

WASHER

SEAT - centering spring

2шт.

6

N14192

SPACER

- detent shaft

1шт.

7

N14193

SHAFT

- detent

1шт.

8

N14194

HOUSING

- detent

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

61-32536

HEX SOC SCREW,1/4"-20 x 2 1/4"

BOLT - hex socket, 1/4 NC x 2-1/4 inch

2шт.

11

A48931

WASHER

- guide

1шт.

12

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Gr 24

8шт.

13

N14196

PISTON

- detent

1шт.

14

A48934

SPRING

- detent

1шт.

15

A48933

RING

RETAINER - piston

1шт.

16

A30975

SNAP RING,1.188", Int, #118

1шт.

D87080

VALVE

SHUTTLE ASSEMBLY - primary, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

19

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Center -010, 90 Duro, .239" ID x .070" Thk

1шт.

20

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner -009, 90 Duro, .208" ID x .070" Thk

1шт.

A47210

PLUG

SHUTTLE ASSEMBLY - secondary, Includes: Ref. 21 - 23

1шт.

21

A47204

PLUG

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref. 22 & 23

1шт.

22

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

23

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

24

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

1шт.

25

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 26 Hex Soc, 1 1/16"-12 ORB

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

27

R30189

SPRING

- load check

1шт.

28

D87082

VALVE POPPET

POPPET - load check

1шт.

29

N14024

VALVE

ASSEMBLY - anticavitation, parts list Figure 8-132

1шт.

30

N14029

VALVE

ASSEMBLY - anticavitation and circuit relief, parts list Figure 8-130

1шт.

A48938

KIT

- filter, body and spool, Includes: Ref. 31 - 33

1шт.

31

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

1шт.

32

A47188

COVER

- dust

1шт.

33

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- retainer

2шт.

34

A47196

RETAINER

- filter

1шт.
