Запчасти Case 1150E (8-114) - FOUR SPOOL VALVE, LONG TRACK ANGLE TILT DOZER MODELS, WITH RIPPER (08) - HYDRAULICS

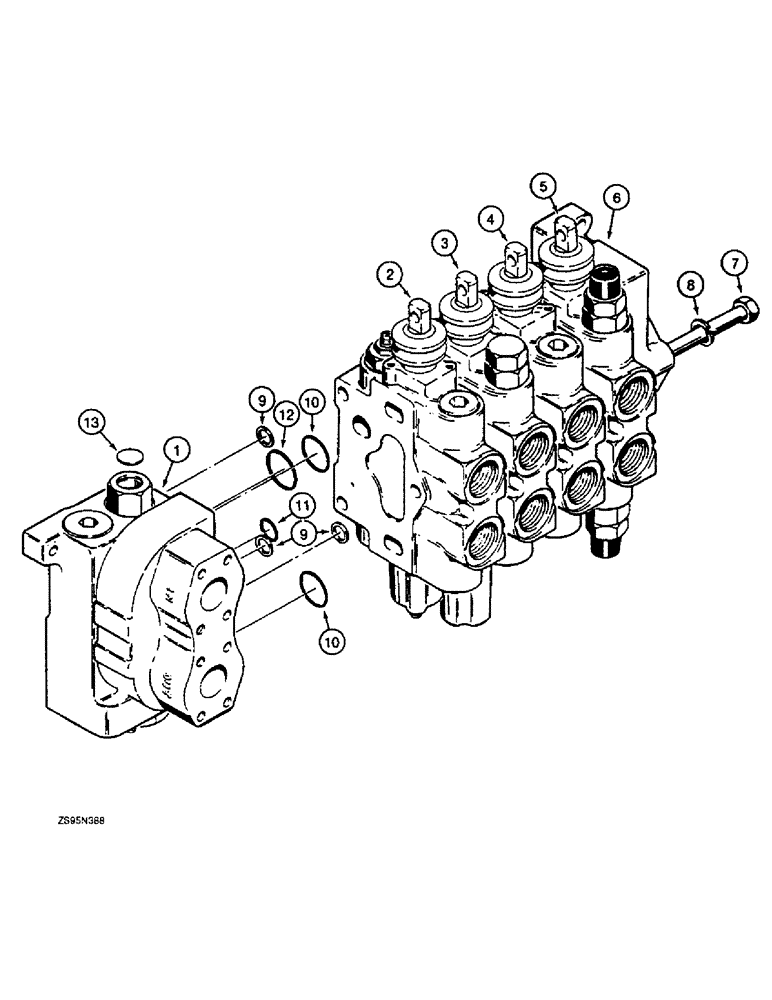

Схема запчастей Case 1150E - (8-114) - FOUR SPOOL VALVE, LONG TRACK ANGLE TILT DOZER MODELS, WITH RIPPER (08) - HYDRAULICS
10
9
13
10
7
6
5
2
1
9
11
4
3
12
6

Артикул

Название

Примечание

Количество

R56333

VALVE

ASSEMBLY - control, four spool, long track angle tilt dozer models with ripper, Includes: Ref. 1 - 12

1шт.

1

N14016

VALVE

SECTION ASSEMBLY - inlet and outlet, ID No. 110, parts list Figure 8-116

1шт.

2

S300687

HYD VALVE SECTION

SECTION ASSEMBLY - dozer tilt, ID No. 258, parts list Figure 8-128

1шт.

3

N14018

VALVE

SECTION ASSEMBLY - dozer lift, ID No. 316, parts list Figure 8-126

1шт.

4

N14017

VALVE

SECTION ASSEMBLY - dozer angle, ID No. 252, parts list Figure 8-128

1шт.

5

N14026

VALVE

SECTION ASSEMBLY - ripper, ID No. 251, parts list Figure 8-118

1шт.

6

D87072

COVER ASSY

COVER - end

1шт.

7

D74375

BOLT

- special

3шт.

8

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 10 - 12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 inch (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1 inch (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 inch (37 mm) OD

1шт.

13

D87075

COVER

CAP - dust, steel

1шт.

Выбрано товаров: 15
