Запчасти Case 1150E (8-090) - EQUIPMENT CONTROL VALVE AND LEVERS, THREE CONTROL LEVERS - 4 SPOOL VALVE, PRIOR PIN JAK0008634 (08) - HYDRAULICS

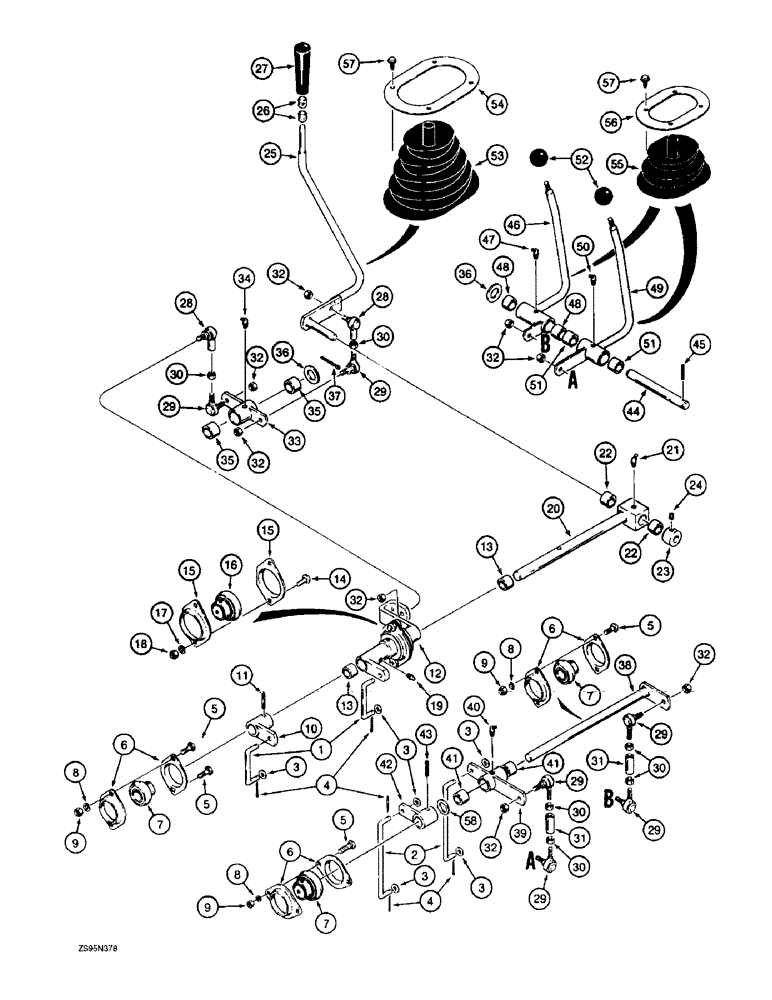

Схема запчастей Case 1150E - (8-090) - EQUIPMENT CONTROL VALVE AND LEVERS, THREE CONTROL LEVERS - 4 SPOOL VALVE, PRIOR PIN JAK0008634 (08) - HYDRAULICS
36
12
53
35
32
7
32
51
48
26
29
49
9
32
27
5
5
6
57
29
6
31
3
56
13
21
50
30
30
36
5
13
32
32
41
57
8
3
3
58
6
29
55
18
22
39
29
19
4
22
28
1
28
44
32
37
14
51
3
40
30
25
16
10
20
30
9
30
47
46
41
52
31
29
9
24
43
32
23
38
2
45
15
7
29
17
42
33
54
7
8
15
48
5
4
11
8
3
35
34

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figures 8-112 and 8-114, for mounting see Figure 8-80

1шт.

1

R54248

LINK

- short, at control valve spool

2шт.

2

R48771

LINK

- long, at control valve spool

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

8шт.

5

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

6шт.

6

469924R1

FLANGE

- ball bearing

6шт.

7

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING - ball, shaft

3шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

10

R54249

LEVER

BELLCRANK - lower shaft, rear

1шт.

11

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

R54251

LEVER ASSY.

BELLCRANK ASSEMBLY - with ball bearing, lower shaft, front, Includes: Ref. 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - bellcrank

1шт.

13

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

15

NSS

NOT SOLD SEPARAT

FLANGE - ball bearing

2шт.

16

NSS

NOT SOLD SEPARAT

BALL BEARING - bellcrank

1шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

20

R52147

SHAFT

- bellcrank, lower, Includes: Ref. 21 & 22

1шт.

21

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

1шт.

22

R52130

BRONZE BUSHING

BUSHING - bronze, 1 inch long

2шт.

23

R42435

COLLAR

ASSEMBLY - locking, Includes: Ref. 24

1шт.

24

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

25

R38652

LEVER

- control, equipment

1шт.

26

R38655

RING

BUSHING - knob, control lever

2шт.

27

R38654

KNOB

- control lever

1шт.

28

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball, female, 5/16 inch NF

2шт.

29

R47939

ROD

JOINT - ball, male, 5/16 inch NF

6шт.

30

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

6шт.

31

R27647

LINK

- ball joints

2шт.

32

232-4605

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

8шт.

33

R52151

LINKAGE YOKE

LEVER - ball joint, Includes: Ref. 34 & 35

1шт.

34

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

35

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

36

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD) 1/32" Thk

1шт.

37

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

38

R45645

SHAFT

- upper

1шт.

39

R56520

CONTROL LEVER

BELLCRANK - upper shaft, front, long link to control valve, Includes: Ref. 40 & 41

1шт.

40

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

41

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

42

R27689

LEVER

BELLCRANK - upper shaft, long link to control valve

1шт.

43

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

44

R47819

SHAFT

- auxiliary control lever

1шт.

45

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

46

R52153

LEVER

ASSEMBLY - control, auxiliary, center, Includes: Ref. 47 & 48

1шт.

47

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

48

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

49

R52154

LEVER

ASSEMBLY - control, auxiliary, right-hand, Includes: Ref. 50 & 51

1шт.

50

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

51

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

52

70213

KNOB

- control lever

2шт.

53

R47896

BOOT

- control lever, if used

1шт.

54

R47893

ANCHOR

RETAINER - boot, lift lever, if used

1шт.

55

R47897

BELLOWS

BOOT - auxiliary, control lever, if used

2шт.

56

R47894

ANCHOR

RETAINER - boot, auxiliary control lever, if used

2шт.

57

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, truss head Phillips, No. 10-16 x 1/2 "

12шт.

58

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, if used

1шт.

Выбрано товаров: 60
