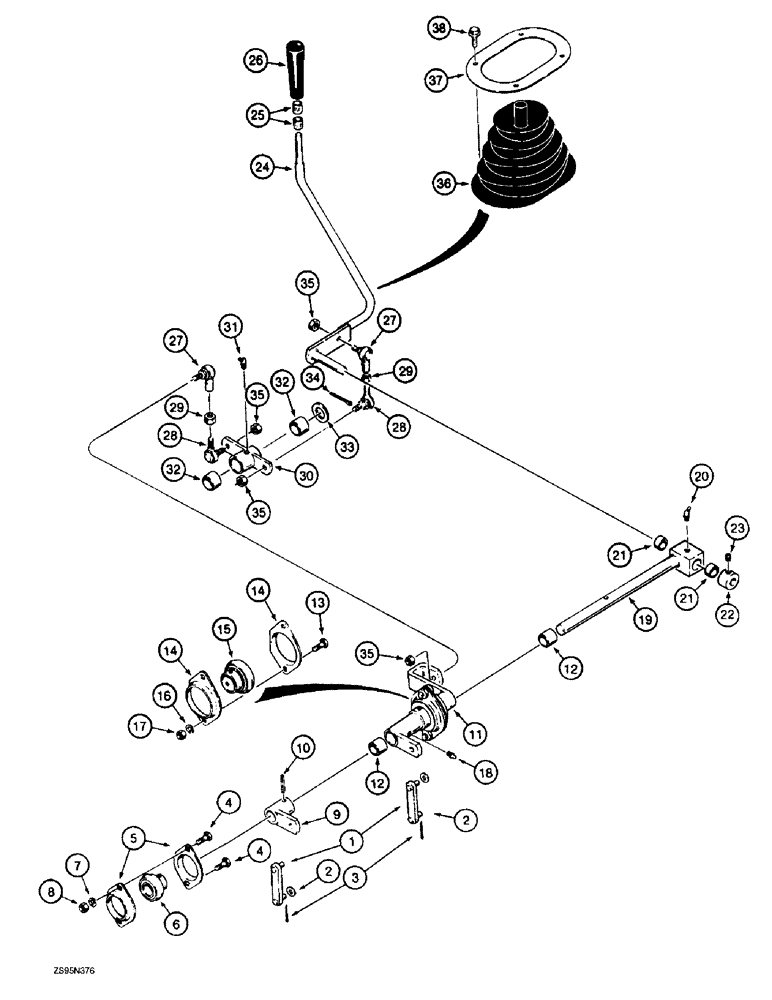

Запчасти Case 1150E (8-082) - EQUIPMENT CONTROL VALVE AND LEVERS, ONE LEVER - TWO SPOOL VALVE, PRIOR TO PIN JAK0008634 (08) - HYDRAULICS

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figure 8-106, for mounting see Figure 8-80

1шт.

1

R54248

LINK

- at control valve spool

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

3

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

4

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

2шт.

5

469924R1

FLANGE

- bearing

2шт.

6

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING - ball

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

9

R54249

LEVER

BELLCRANK - rear

1шт.

10

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

R54251

LEVER ASSY.

BELLCRANK ASSEMBLY - with ball bearing, front, Includes: Ref. 11 - 18

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - bellcrank

1шт.

12

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

14

NSS

NOT SOLD SEPARAT

FLANGE - ball bearing

2шт.

15

NSS

NOT SOLD SEPARAT

BALL BEARING - bellcrank

1шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

19

R52147

SHAFT

- bellcrank, Includes: Ref. 20 & 21

1шт.

20

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

1шт.

21

R52130

BRONZE BUSHING

BUSHING - bronze, 1 inch long

2шт.

22

R42435

COLLAR

ASSEMBLY - locking, Includes: Ref. 23

1шт.

23

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

24

R38652

LEVER

- control, equipment

1шт.

25

R38655

RING

BUSHING - knob, control lever

2шт.

26

R38654

KNOB

- control lever

1шт.

27

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball, female, 5/16 inch NF

2шт.

28

R47939

ROD

JOINT - ball, male, 5/16 inch NF

2шт.

29

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

30

R52151

LINKAGE YOKE

LEVER - ball joint, Includes: Ref. 31 & 32

1шт.

31

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

32

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

33

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD) 1/32" Thk

1шт.

34

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

35

232-4605

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

4шт.

36

R47896

BOOT

- control lever, if used

1шт.

37

R47893

ANCHOR

RETAINER - boot, if used

1шт.

38

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, truss head Phillips, No. 10-16 x 1/2 "

4шт.
