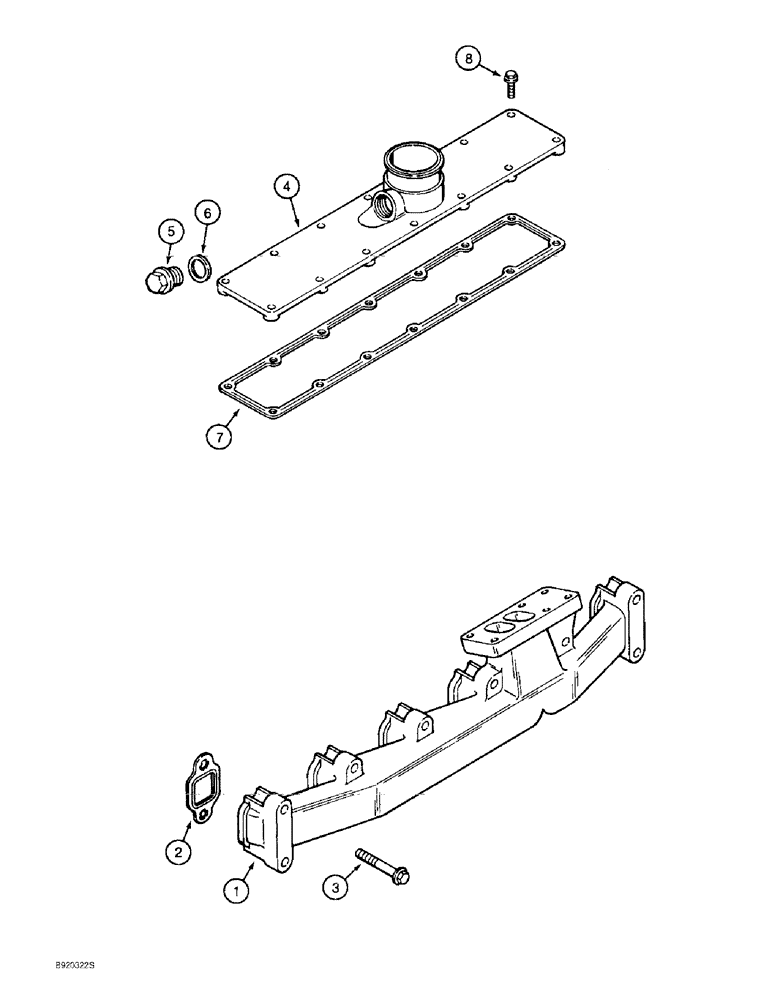

Запчасти Case 1150E (2-010) - MANIFOLDS, 6T-590 ENGINE, EXHAUST (02) - ENGINE

1

J901683

MANIFOLD

exhaust, turbocharged

1шт.

2

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

3

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9, Replaces J904446 bolt

12шт.

A77418

KIT

manifold, turbocharged, no longer available, order Ref. 4 - 6 listed below

1шт.

4

J904862

COVER

intake manifold, turbocharged

1шт.

5

J907185

PLUG

manifold, remove to install cold start, intake

1шт.

6

J906773

WASHER

plug sealing, intake

1шт.

7

J914029

GASKET

mounting, intake cover, replaces J907036 gasket, intake

1шт.

8

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9, Replaces J904341 bolt, intake

14шт.
