Запчасти Case 1150E (8-066) - G107334 DOZER LIFT CYLINDERS, ANGLE TILT PITCH DOZER MODELS 62 IN. GAUGE STANDARD &74 IN. GAUGE WIDE (08) - HYDRAULICS

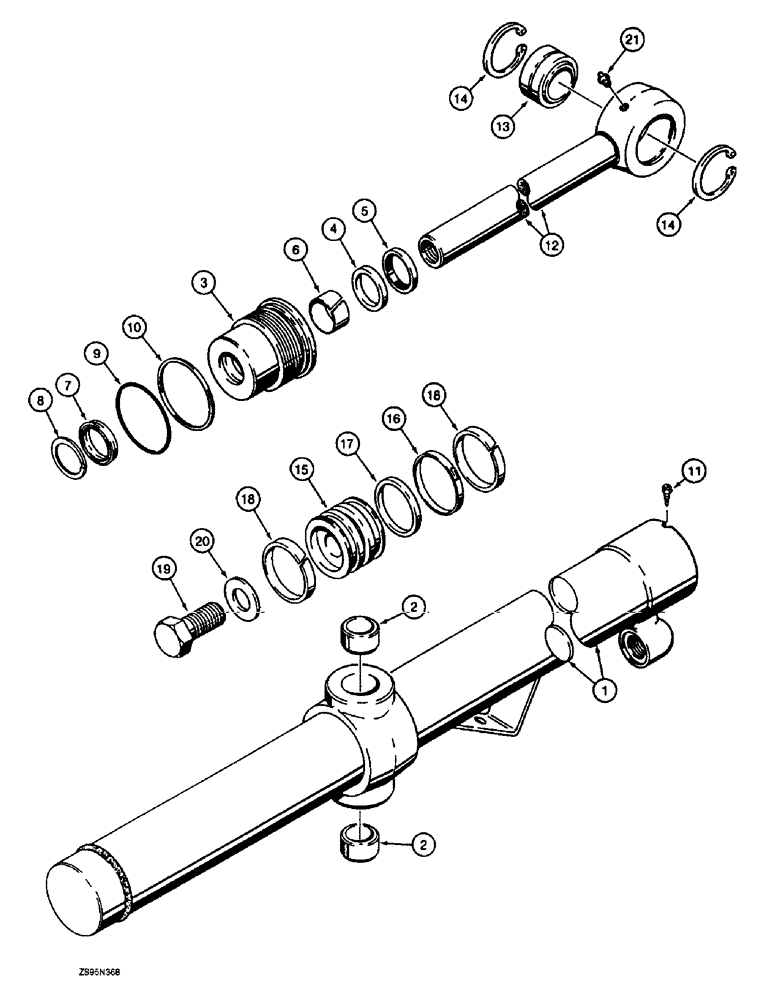

Схема запчастей Case 1150E - (8-066) - G107334 DOZER LIFT CYLINDERS, ANGLE TILT PITCH DOZER MODELS 62 IN. GAUGE STANDARD &74 IN. GAUGE WIDE (08) - HYDRAULICS
12
4
20
8
2
16
2
19
18
14
18
21
3
13
14
10
1
15
11
9
7
5
17
6

Артикул

Название

Примечание

Количество

G107334

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer lift, 3-1/4 (83) ID x 36-11/16 inch (932 mm) stroke, Includes: Ref. 1 - 21

2шт.

1

G107335

TUBE

- cylinder, Includes: Ref. 2

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 1 inch (25 mm) long, tube

2шт.

3

1542972C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

7

1542998C1

SEALING RING

- U-cup, piston rod, wide, with O-ring, was G107922

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

7

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, service option - severe heat or cold

1шт.

8

1542999C1

SEAL

- piston rod, narrow

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

9

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

Gland -236, 70 Duro, 3.234" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup gland O-ring

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted

1шт.

12

G34078

PISTON

ROD - piston, 1-3/4 inch (44 mm) dia., Includes: Ref. 13 & 14

1шт.

13

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

BEARING - piston rod, self aligning

1шт.

14

100-21244

SNAP RING,2.44", Int, #244

Ring, Snap, , Brg 2.44", Int, #244

2шт.

15

G100642

PISTON

- cylinder

1шт.

16

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

17

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

18

S109445

RING,82.55mm OD, Ext

- wear

2шт.

Part of Seal Kit, P/N 1543265C1

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NF x 2-1/2 inch, grade 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special, hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

1543265C1

SEAL KIT

KIT - seal, includes Refs. 5 - 10 (except G100777) & 16 - 18

1шт.
