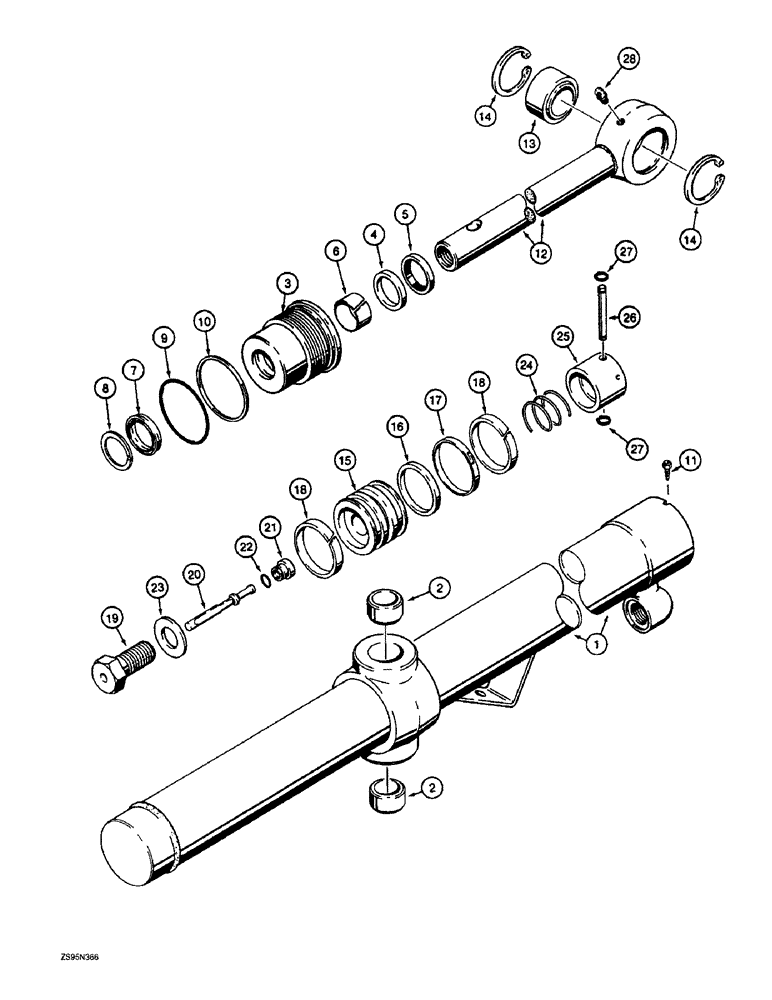

Запчасти Case 1150E (8-062) - G107365 DOZER LIFT CYLINDERS, LGP TILT DOZER MODELS (08) - HYDRAULICS

G107365

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 3-1/4 (83) ID x 39-3/16 inch (995 mm) stroke, Includes: Ref. 1 - 28

2шт.

1

G107366

TUBE

- cylinder, Includes: Ref. 2

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 1 inch (25 mm) long, tube

2шт.

3

1542972C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

7

1542998C1

SEALING RING

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

7

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, service option - severe heat or cold

1шт.

8

1542999C1

SEAL

- piston rod, narrow

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

9

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

Gland -236, 70 Duro, 3.234" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup gland O-ring

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 ", slotted

1шт.

12

G34074

PISTON

ROD - piston, 1-3/4 inch, 44 mm diameter, Includes: Ref. 13 & 14

1шт.

13

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

BUSHING - self aligning

1шт.

14

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Bushing 2.812", Int, #281

2шт.

15

G107909

PISTON

- cylinder

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

17

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 1543265C1

1шт.

18

S109445

RING,82.55mm OD, Ext

- wear

2шт.

Part of Seal Kit, P/N 1543265C1

1шт.

G103099

LOCK VALVE

VALVE ASSEMBLY - bypass, Includes: Ref. 19 - 22

1шт.

19

G32723

BOLT

- special

1шт.

20

G110533

SPOOL

PLUNGER - bypass valve, replaces G104187 plunger

1шт.

21

G32722

BUSHING

SEAT - plunger

1шт.

22

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Plunger seat

1шт.

23

G32351

WASHER

- flat, hardened, special

1шт.

24

G101523

SPRING

- cylinder

1шт.

25

G100086

BLOCK

- stop, cylinder

1шт.

26

G107370

PIN

- retainer

1шт.

27

100-1137

SNAP RING,#37, Ext

Ring, Snap, , pin #37, Ext

2шт.

28

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

1543265C1

SEAL KIT

KIT - seal, includes Refs. 4 - 10 (except G100777) & 16 - 18

1шт.
