Запчасти Case 1150E (8-060) - G34638, G34639,1986746C1 AND 1986747C1 CLAM BUCKET CYLINDERS (08) - HYDRAULICS

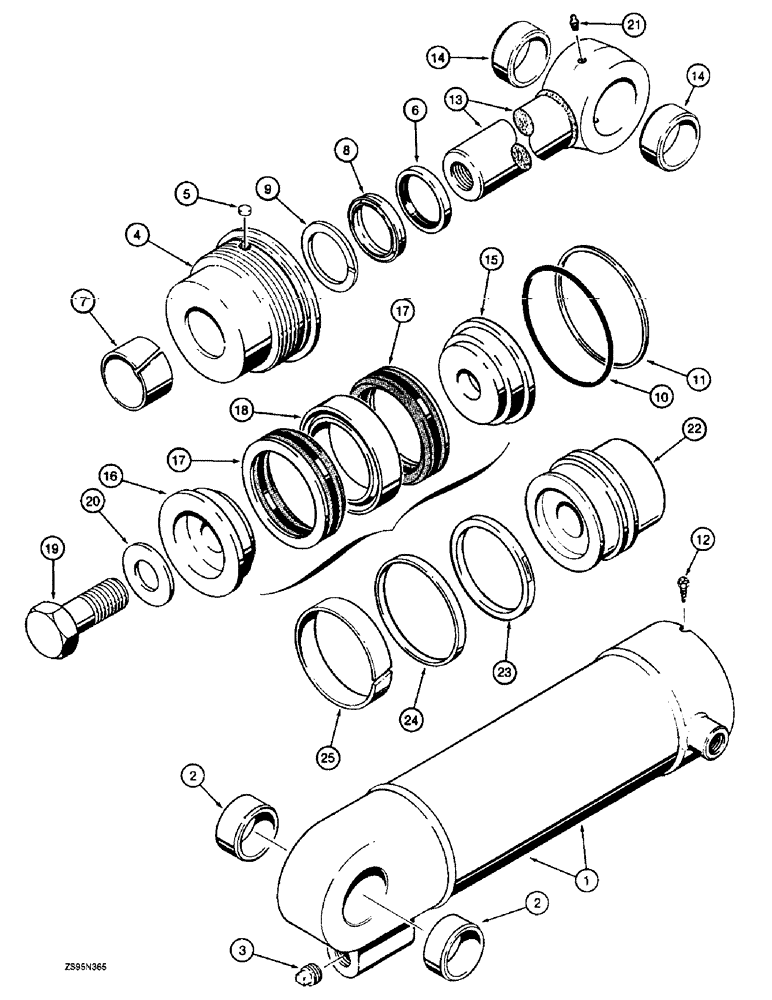

Схема запчастей Case 1150E - (8-060) - G34638, G34639,1986746C1 AND 1986747C1 CLAM BUCKET CYLINDERS (08) - HYDRAULICS
19
16
2
13
17
18
24
2
4
8
14
3
25
22
10
23
21
7
1
20
14
11
17
5
15
6
12
9

Артикул

Название

Примечание

Количество

G34638

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, right-hand, 4-1/2 (114) ID x 10-1/2 inch (267 mm) stroke, with 2 piece piston, no longer used, order 1986746C1

1шт.

1986746C1

CYLINDER ASSY.,Double Acting, 57.15mm Rod, 265.43mm Stroke

CYLINDER ASSEMBLY - clam, right-hand, 4-1/2 (114) ID x 10-7/16 inch (265 mm) stroke, with 1 piece piston, Includes: Ref. 1 - 25

1шт.

G34639

CYLINDER

ASSEMBLY - clam, left-hand, 4-1/2 (114) ID x 10-1/2 inch (267 mm) stroke, with 2 piece piston, no longer used, order 1986747C1

1шт.

1986747C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, left-hand, 4-1/2 (114) ID x 10-7/16 inch (265 mm) stroke, with 1 piece piston, Includes: Ref. 1 - 25

1шт.

1

G34640

TUBE,19.89" L

- cylinder, right-hand, Includes: Ref. 2

1шт.

1

G34641

JACK BODY,4.495" ID x 5.12" OD x 19.89" L

TUBE - cylinder, left-hand, Includes: Ref. 2

1шт.

2

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- 1-1/8 inch (28 mm) wide, tube

2шт.

3

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket, 1/2 inch PT

1шт.

G104950

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G105520

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit, P/N G105520

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G105520

1шт.

8

G100779

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9

G109086

RING

SEAL - piston rod, narrow

1шт.

Part of Seal Kit, P/N G105520

1шт.

10

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

Gland -246, 70 Duro, 4.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N G105520

1шт.

11

G32284

BACK-UP RING

- backup, gland

1шт.

Part of Seal Kit, P/N G105520

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted, If used

1шт.

13

G34024

ROD

- piston, 2-1/4 inch (57 mm) diameter, Includes: Ref. 14

1шт.

14

D38478

BUSHING

- piston rod

2шт.

15

D46425

PISTON

- split, rod end, G34638 or G34639 cylinder

1шт.

16

D46931

PISTON

- split, bolt end, G34638 or G34639 cylinder

1шт.

17

D47205

PACKING

- piston, for ref 15 and 16 split pistons

2шт.

Part of Seal Kit, P/N G105520

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - wear, for ref 15 and 16 split pistons

1шт.

19

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

20

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

22

1986543C1

PISTON

- cylinder, for 1986746C1 or 1986747C1 cylinder

1шт.

23

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

- piston, for ref 22 piston in 1986746C1 or 1986747C1 cylinder

1шт.

24

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

RING - backup, ref 22 piston, 1986746C1 or 1986747C1 cylinder

1шт.

25

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear, ref 22 piston, 1986746C1 or 1986747C1 cylinder

1шт.

G105520

GASKET KIT

KIT - seal, includes Refs. 6 - 11 (except G100779) & Ref. 17

1шт.
