Запчасти Case 1150E (8-054) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

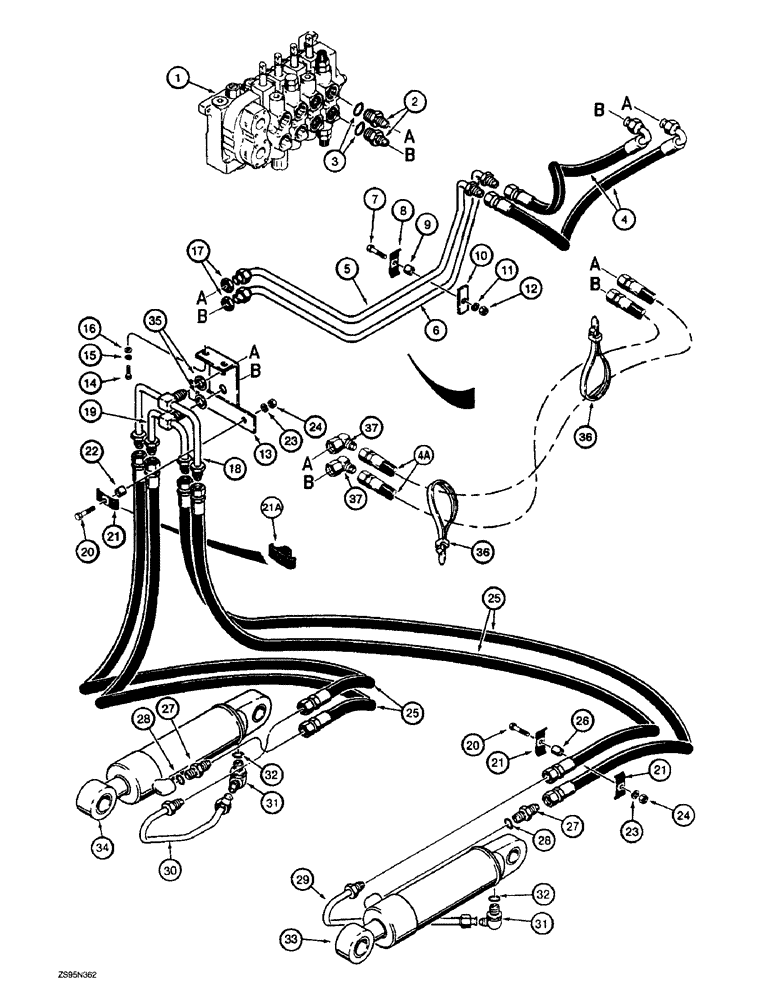

Схема запчастей Case 1150E - (8-054) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS
24
37
31
7
27
4
5
37
13
33
27
34
28
28
8
21
23
20
6
18
22
29
36
30
12
11
10
3
24
21
25
35
23
19
20
21
15
26
14
9
31
2
3b
16
4a
32
32
1
25
21a
17

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see Figures 8-108 through 8-114

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, adapter

1шт.

4

R27628

HOSE

- 17 inch (432 mm) long, at control valve, if used

2шт.

4a

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

- At control valve, if used 12.70 mm ID x 1473.00 mm, SAE 100R2

2шт.

5

R27629

TUBE,0.625" OD

- upper, A port, if used

1шт.

6

R27629

TUBE,0.625" OD

- lower, B port (replaces R27633 tube), if used

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

8

D40236

CLAMP

- tube

1шт.

9

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- clamp, split

1шт.

10

D40083

BLOCK

- clamp, mounting

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

R35545

BRACKET

- tube mounting

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

17

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

18

R35549

TUBE,0.625" OD x 6.2, 3.75" L

- with tee, upper, A port

1шт.

19

R46492

TUBE,0.625" OD x 4, 2.1" L

- with tee, lower, B port

1шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

21

D40236

CLAMP

- tubes to bracket, used with D76209 spacer, if used

4шт.

21a

D120613

CLAMP,20mm ID

-tubes, spacer type, to bracket, if used

2шт.

22

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- clamp, split, tubes at bracket, used with D40236 clamp (item 21), if used

2шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

425-106

NUT,3/8"-16, Cl 5

4шт.

25

F93300

HOSE

- 29 inch (737 mm), Serial Range: long,-cylinder

4шт.

26

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- split

2шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, male, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

29

R29282

TUBE,0.625" OD

- to closed end of cylinder, right-hand

1шт.

30

R29283

TUBE,0.625" OD

- to closed end of cylinder, left-hand

1шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, male, adjustable, Incl. Ref. 32

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

33

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - right-hand ripper, 4 (102) ID x 10 inch (245 mm) stroke, parts list Figure 8-78

1шт.

34

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - left-hand ripper, 4 (102) ID x 10 inch (245 mm) stroke, parts list Figure 8-78

1шт.

35

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch, if used

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, if used

2шт.

37

218-5381

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 3/4-16 flare x 7/8-14 female swivel, if used

2шт.

Выбрано товаров: 39
