Запчасти Case 1150E (8-042) - DOZER TILT AND PITCH HYDRAULIC CIRCUIT, ANGLE TILT PITCH DOZER MODELS TUBES TO GRILLE (08) - HYDRAULICS

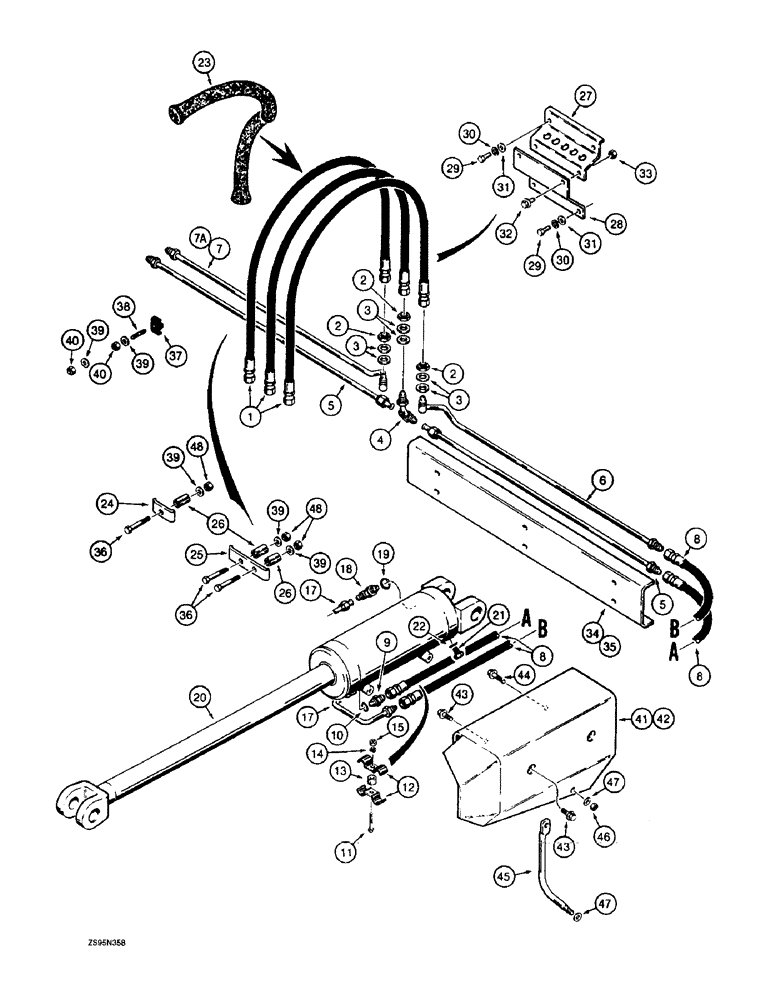

Схема запчастей Case 1150E - (8-042) - DOZER TILT AND PITCH HYDRAULIC CIRCUIT, ANGLE TILT PITCH DOZER MODELS TUBES TO GRILLE (08) - HYDRAULICS
34
10
2
43
29
7
36
39
5
23
12
11
21
8
46
1
39
35
5
6
25
31
44
24
26
47
39
26
33
17
42
19
8
39
22
8
2
17
47
48
15
18
2
32
40
29
43
3
30
13
7a
40
41
37
39
9
27
45
3
36
38
3
31
14
28
20
4
30
48

Артикул

Название

Примечание

Количество

1

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

- Grille to tubes 12.70 mm ID x 1473.00 mm, SAE 100R2

3шт.

2

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

3шт.

3

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), One on each side of upper hose guard (item 27 on Figure 8-44) 1/32" Thk

6шт.

4

R45209

PIPE,12.7 mm OD x 39, 18 mm L

TUBE - tee, lower tubes

1шт.

5

R45189

PIPE,12.7 mm OD x 1024 mm L

TUBE - lower, 62" gauge dozer models

2шт.

5

R45306

PIPE,12.7 mm OD x 1182 mm L

TUBE - lower, 74" gauge dozer models

2шт.

6

R45217

PIPE,0.5" OD

TUBE - right-hand, upper, 62" gauge standard models

1шт.

6

R45286

PIPE,0.5" OD

TUBE - right-hand, upper, 74" gauge wide track models

1шт.

7

R45215

PIPE,0.5" OD

TUBE - left-hand, upper, 62" gauge standard models

1шт.

7a

R45284

PIPE,0.5" OD

TUBE - left-hand, upper, 74" gauge wide track models

1шт.

8

36212

HOSE

- 23-1/2 inch (597 mm) long, to tilt cylinder

4шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, male, rod end of cylinder, Incl. Ref 10 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

12

R15257

CLAMP

- hoses

4шт.

13

D38524

SPACER

- clamps

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

R45219

PIPE,0.5" OD

TUBE - to closed end of cylinder, left-hand, not shown

1шт.

17

R46409

PIPE,0.5" OD

TUBE - to closed end of cylinder, right-hand

1шт.

18

R49847

ELBOW

- 90 degree, special, closed end of cylinder, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

20

G105458

CYLINDER ASSY.

CYLINDER ASSEMBLY - tilt and pitch, 4 (102) ID x 5-3/16 inch (132 mm) stroke, parts list Figure 8-72

2шт.

21

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug

1шт.

23

R52544

HOSE PROTECTION

SLEEVE - nylon, hose protector

1шт.

24

D40236

CLAMP

- hose, left-hand, above front hose guard

1шт.

25

R27400

CLAMP

- hose, right-hand, above front hose guard

1шт.

26

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- split, clamp mounting

3шт.

27

R45028

PROTECTOR

GUARD - back of blade, upper

1шт.

28

R45031

PROTECTOR

GUARD - back of blade, lower

1шт.

29

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

31

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

4шт.

32

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

34

R45033

HOSE PROTECTION

GUARD - tubes, back of blade, 62 inch gauge standard models

2шт.

35

R45230

HOSE PROTECTION

GUARD - tubes, back of blade, 74 inch gauge wide track models

2шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

3шт.

37

D120679

CLAMP,Tube, 1/2"

- tubes

6шт.

38

R49736

STUD

- clamp mounting

6шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

15шт.

40

425-106

NUT,3/8"-16, Cl 5

12шт.

41

R45050

PROTECTOR

GUARD - tilt cylinder, left-hand, not shown

1шт.

42

R45051

PROTECTOR

GUARD - tilt cylinder, right-hand

1шт.

43

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

44

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

45

R49827

ROD

- cylinder guard

2шт.

46

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

47

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

4шт.

48

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.
