Запчасти Case 1150E (8-038) - DOZER TILT AND PITCH HYD. CIRCUIT, ANGLE TILT PITCH DOZER MODELS CONTROL VALVE THRU SELECTOR VALVE (08) - HYDRAULICS

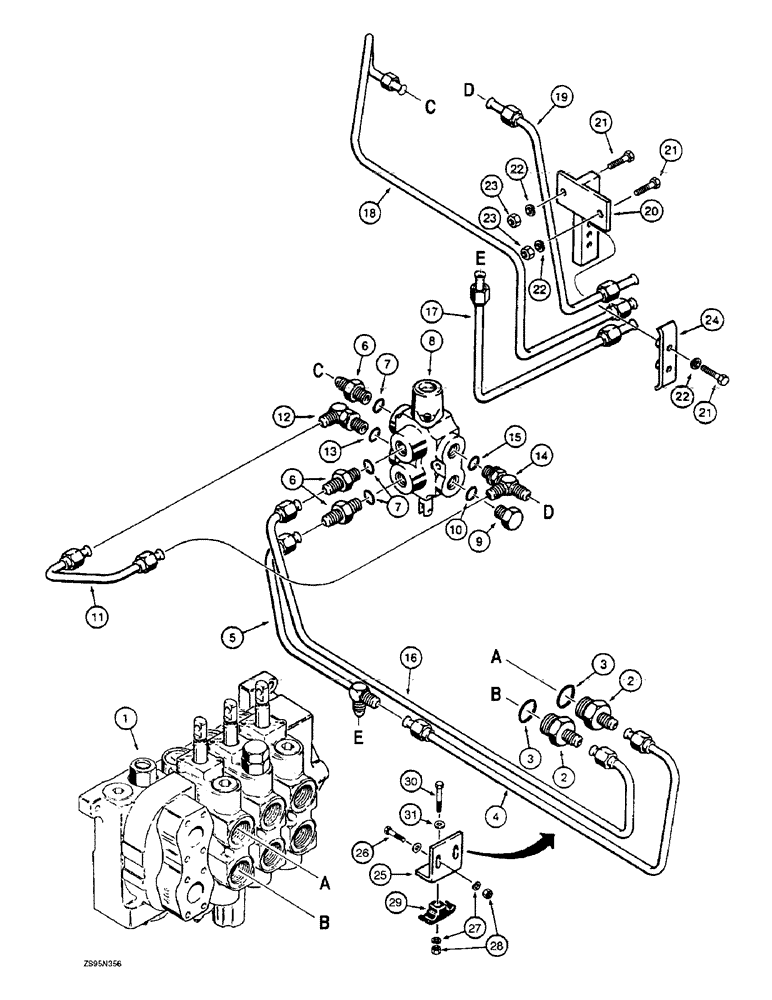

Схема запчастей Case 1150E - (8-038) - DOZER TILT AND PITCH HYD. CIRCUIT, ANGLE TILT PITCH DOZER MODELS CONTROL VALVE THRU SELECTOR VALVE (08) - HYDRAULICS
10
17
21
18
28
3
21
2
31
24
20
21
22
11
2
8
14
7
16
28
22
3
6
1
4
23
27
25
9
5
19
29
23
30
22
13
6
7
15
12

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see Figure 8-110 or 8-112

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-5/16-12 inch O-ring boss, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, adapter

1шт.

4

R27392

TUBE,0.5" OD

- at control valve, upper port

1шт.

5

R46606

PIPE,0.5" OD

TUBE - from upper port of control valve to lower rear port of selector valve

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, male, Incl. Ref 7

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

8

R24819

VALVE

ASSEMBLY - selector, parts list Figure 8-46

1шт.

9

214389

PLUG,3/4" - 16 ORB

Assy, Lower RH port, Includes Ref. 10 Hex Hd, 3/4"-16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

11

R27405

TUBE

- crossover

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, male, lower left-hand port, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

14

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, at selector valve, upper right-hand port, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Tee

1шт.

16

R46608

PIPE,0.5" OD

TUBE - upper port of selector valve to lower port of control valve

1шт.

17

R27417

PIPE,0.5" OD x 9.5, 12.5" L

TUBE - lower, from lower rear port of selector valve

1шт.

18

R51255

TUBE ASSY.

TUBE - from upper left-hand port of selector valve

1шт.

19

R27401

TUBE,0.5" OD

- from upper right-hand port of selector valve

1шт.

20

R27748

BRACKET

- tube mounting

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

R37957

CLAMP

- tubes

1шт.

25

R52432

CYLINDER END CAP

- clamp, tubes, at control valve

1шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

27

492-11038

LOCK WASHER,3/8"

3шт.

28

425-106

NUT,3/8"-16, Cl 5

3шт.

29

D120679

CLAMP,Tube, 1/2"

- tubes, at control valve

1шт.

30

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

31

D41740

WASHER

- flat, special, 3/8 inch, hardened, bracket mounting

3шт.

Выбрано товаров: 31
