Запчасти Case 1150E (8-030) - TILT HYDRAULIC CIRCUIT, LGP TILT AND LONG TRACK ANGLE TILT DOZER MODELS, CONTROL VALVE TO GRILLE (08) - HYDRAULICS

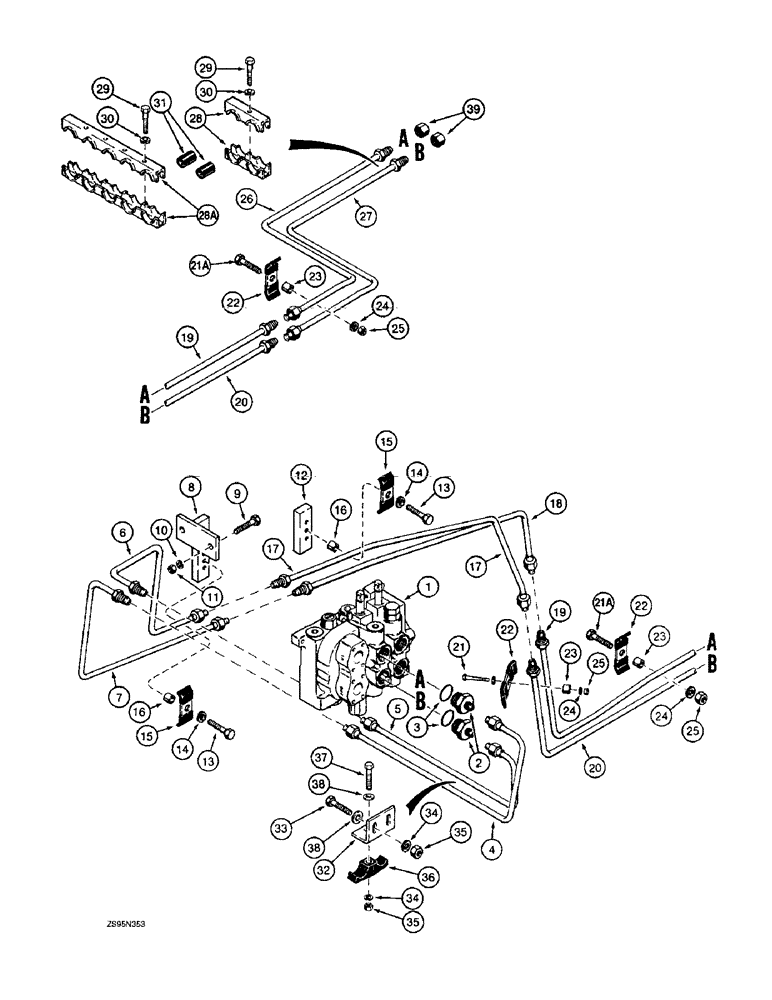

Схема запчастей Case 1150E - (8-030) - TILT HYDRAULIC CIRCUIT, LGP TILT AND LONG TRACK ANGLE TILT DOZER MODELS, CONTROL VALVE TO GRILLE (08) - HYDRAULICS
17
36
30
14
23
20
18
22
28
14
6
3
20
13
19
25
35
34
10
38
34
28a
21a
26
15
24
5
37
23
19
24
31
8
12
33
29
23
4
25
38
21a
25
15
9
13
1
17
39
16
27
24
29
22
32
16
22
11
7
21
35
30
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - equipment control, for correct assembly and components see Figures 8-106 through 8-114

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-5/16-12 inch O-ring boss, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, adapter

1шт.

4

R32145

TUBE,0.5" OD

- at control valve, A port, to rod end of tilt cylinderr

1шт.

5

R32147

TUBE,0.5" OD

- at control valve, B port, to closed end to tilt cylinder

1шт.

6

181343A1

TUBE

- to control valve, B port

1шт.

7

R32192

TUBE,0.5" OD

- to control valve, A port

1шт.

8

R27748

BRACKET

- tube mounting

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

R27517

BLOCK

- tapped

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

D40236

CLAMP

- tubes

2шт.

16

D76208

SPACER

- clamp, tubes

2шт.

17

R30543

TUBE,0.5" OD

- under floor plate, B port

1шт.

18

R29930

TUBE,0.5" OD

- under floor plate, A port

1шт.

19

R27428

PIPE,0.5" OD

TUBE - along main frame, A port

1шт.

20

R30541

TUBE,0.5" OD x 45.05, 7.45" L

- along main frame, B port

1шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

22

D40236

CLAMP

- tubes

3шт.

23

D76208

SPACER

- clamp, tubes

3шт.

24

492-11038

LOCK WASHER,3/8"

3шт.

25

425-106

NUT,3/8"-16, Cl 5

3шт.

26

R54439

TUBE ASSY.,0.5" OD

TUBE - to grille, A port, to rod end of tilt cylinder

1шт.

27

R54441

PIPE,0.5" OD

TUBE - to grille, B port, to closed end of tilt cylinder

1шт.

28

R41740

CLAMP

- split, tubes at grille, LGP tilt dozer models only

1шт.

28a

R41743

CLAMP

- split, tubes at grille, long track angle tilt dozer models only

1шт.

29

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1-2шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1-2шт.

31

R58327

RUBBER BUSHING

BUSHING - split, on tube for clamp mounting

2шт.

32

R52432

CYLINDER END CAP

- clamp, tubes, at control valve

1шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

34

492-11038

LOCK WASHER,3/8"

3шт.

35

425-106

NUT,3/8"-16, Cl 5

3шт.

36

D120679

CLAMP,Tube, 1/2"

- tubes, at control valve

1шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

38

D41740

WASHER

- flat, special, hardened

4шт.

39

218-755

CAP,37 Degree, 3/4"-16

Tubes, Use on models without front equipment 37º, 3/4"-16

2шт.

Выбрано товаров: 41
