Запчасти Case 1150E (8-018) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

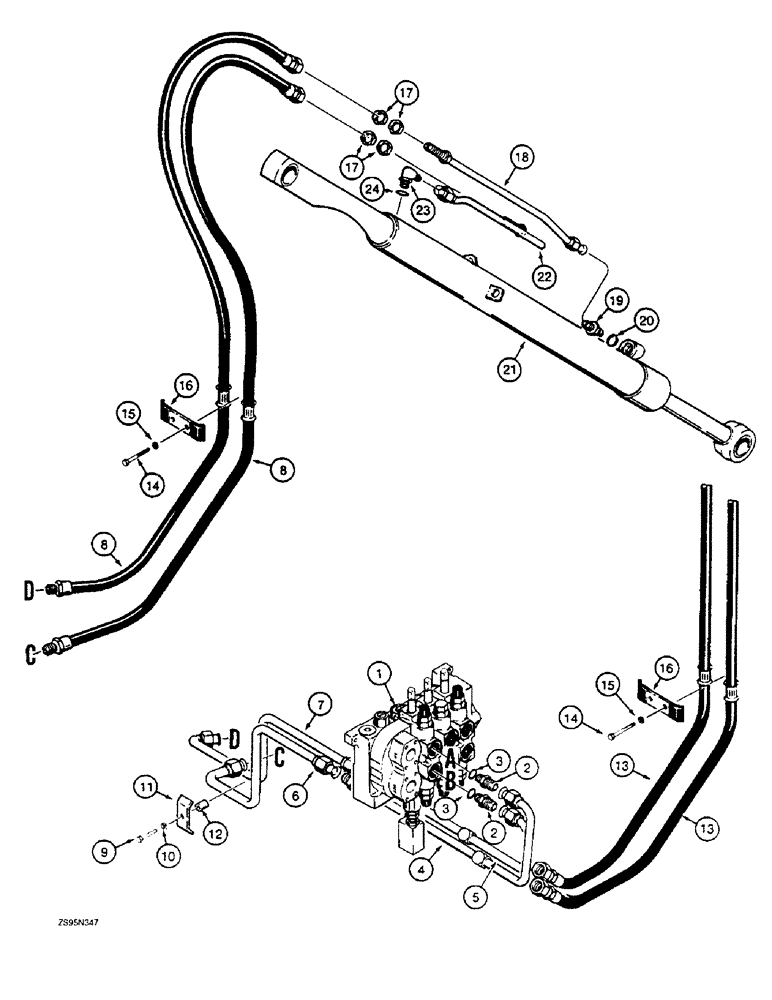

Схема запчастей Case 1150E - (8-018) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS
1
5
4
16
15
3
24
19
6
2
8
3
11
14
2
12
14
22
23
17
10
18
16
7
15
9
13
8
13
20
21
17

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - equipment, for correct assembly and components see Figure 8-106, 8-108, or 8-112

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, male, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, adapter

1шт.

4

R41241

TUBE

- at control valve, upper, A port

1шт.

5

R41240

TUBE,18.88, 7.1" L

- at control valve, lower, B port

1шт.

6

R45637

PIPE,1" OD

TUBE - crossover connection, A port

1шт.

7

R45639

PIPE,1" OD

TUBE - crossover connection, B port

1шт.

8

R49545

HOSE

- 72 inch (1829 mm) long, left-hand

2шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

R34049

CLAMP

- tube

1шт.

12

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

- tube clamp

1шт.

13

R49544

HOSE

- 86 inch (2184 mm) long, right-hand

2шт.

14

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

R45649

FIXING BRACKET

CLAMP - hoses

2шт.

17

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

8шт.

18

R48758

PIPE,19.05 mm OD x 602, 20 mm L

TUBE - to rod end of cylinder

2шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, male, Incl. Ref. 20

2шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

21

G107039

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 (102) ID x 36-1/4 inch (921 mm) stroke, parts list Figure 8-58

2шт.

22

R48765

PIPE,0.75" OD

TUBE - to closed end of bucket cylinder

2шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 24

2шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, elbow

1шт.

Выбрано товаров: 24
