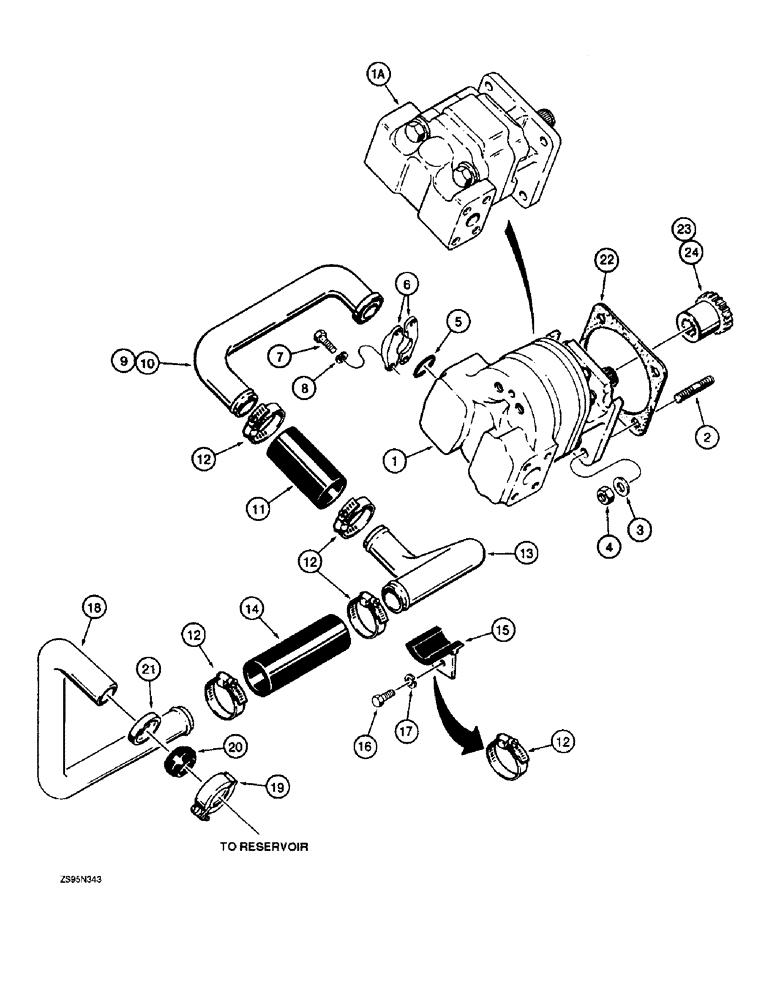

Запчасти Case 1150E (8-008) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

R56572

PUMP, HYDRAULIC,80.48 CC

PUMP ASSEMBLY - equipment, 1 inch shaft, part number stamped on port end cover, if used, parts list Figure 8-12, used on dozer models prior to P.I.N. JAK0009017 and on all loader models

1шт.

1

R56572R

REMAN-HYD PUMP

1150E, 1155E, Both CASE CRAWLER TRACTOR, PUMP ASSEMBLY, used on dozer models prior to P.I.N. JAK0009017 and on all loader models

1шт.

1

R56572C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1a

R58775

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, 7/8 inch shaft, if used, parts list Figure 8-12, used on dozer models P.I.N. JAK0009017 and after

1шт.

1a

87604362R

REMAN-HYD PUMP

1150E, 1155E, Both used on dozer models P.I.N JAK0009017 and after, Reman for New PN R58775

1шт.

1a

87604362C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

R46073

STUD

- 1/2 NC x 2 inch, install short thread end into converter housing

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

4

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

5

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

6

A14157

FLANGE

CLAMP - split flange

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

R46557

PIPE,1.998" ID x 2 - 2.38" OD

TUBE - at pump, dozer and drawbar models, dimension A is 13-1/2 inch long, if used

1шт.

10

R43811

TUBE,1.998" ID x 2 - 2.38" OD

- at pump, loader models, dimension A 14-1/2 inch long, if used

1шт.

11

R43919

HOSE

- 2 ID x 6 inch (152 mm) long, cut from R45493 hose, item 14

1шт.

12

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adj. 1.75/2.625 HD Worm, W/liner

5шт.

13

R43814

TUBE,2" OD

- at pump

1шт.

14

R45493

HOSE,50.80 mm ID x 203.20 mm

1шт.

15

R38740

BRACKET

- tube

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

17

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

R49433

PIPE,2" OD

TUBE - from reservoir to pump

1шт.

19

R30064

CLAMP

- tube, at hydraulic reservoir

1шт.

20

R30065

GASKET

- tube

1шт.

21

R30066

RETAINER

- gasket

1шт.

22

D32004

GASKET

- pump

1шт.

23

R46562

PINION

GEAR - equipment pump drive R56572, for 1 inch shaft

1шт.

24

R58784

PINION

GEAR - equipment pump drive R58775, for 7/8 inch shaft

1шт.
