Запчасти Case 1150E (8-006) - EQUIPMENT HYDRAULIC CIRCUIT FILTERS, IN HYDRAULIC RESERVOIR (08) - HYDRAULICS

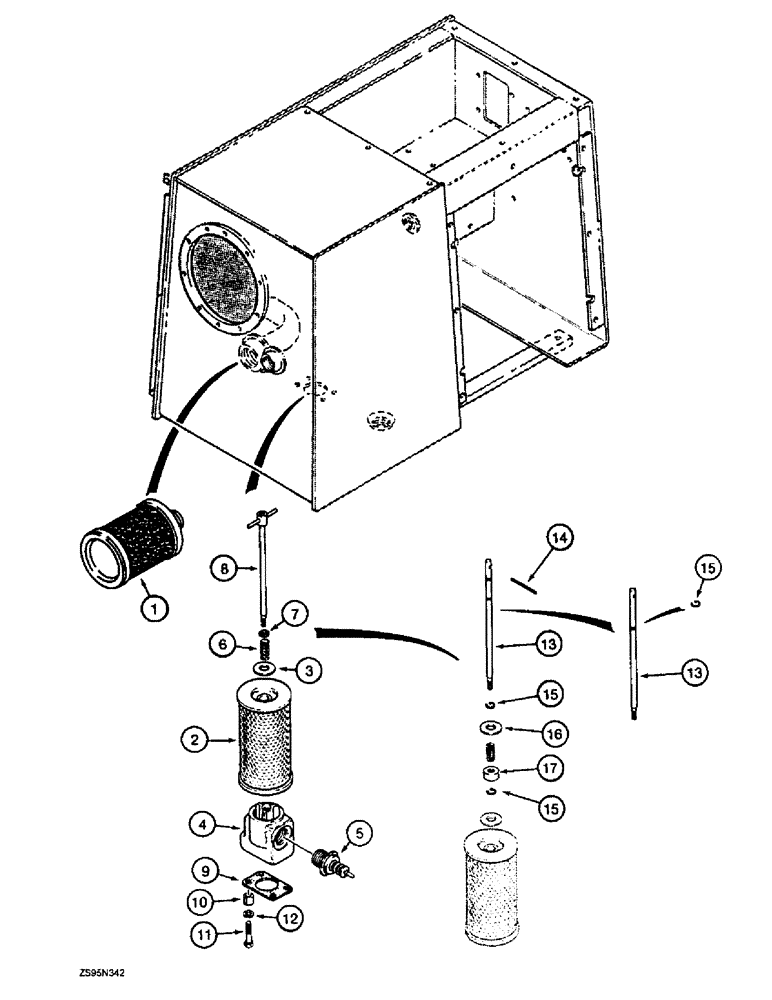

Схема запчастей Case 1150E - (8-006) - EQUIPMENT HYDRAULIC CIRCUIT FILTERS, IN HYDRAULIC RESERVOIR (08) - HYDRAULICS
16
10
14
11
1
13
8
4
17
6
15
5
3
2
13
12
9
15
7
15

Артикул

Название

Примечание

Количество

1

A18789

FILTER, ENGINE OIL

FILTER - suction, in-tank

1шт.

2

R51643

HYDRAULIC OIL FILTER

ELEMENT - filter, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - flat, part of element R51643 (Ref. 2)

1шт.

4

R36277

BLOCK ASSY.

BLOCK - filter

1шт.

5

R27525

VALVE

- bypass, filter

1шт.

6

F61200

SPRING

- filter

1шт.

7

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch, use with R36602 rod assembly (Ref. 8) only, if used

1шт.

8

R36602

ROD

- filter, no longer available, replace with Ref. 13 - 17 below

1шт.

9

R27324

GASKET

- filter

1шт.

10

T53868

BUSHING

SPACER - filter mounting

2шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

R56557

STEM

ROD - filter, may have one or two grooves on rod, use with Ref. 14 - 17

1шт.

14

135-815

GROOVED PIN,5/16" x 3", Type E, Hardened

PIN, GROOVED, 5/16" x 3", Type E, Hardened

1шт.

15

22824R1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1-2шт.

16

195-2052

WASHER,17/32" x 1 1/8" x .180"

- flat, 17/32 x 1-1/8 x 3/16 inch

1шт.

17

R56556

HOLDER

RETAINER - spring

1шт.

Выбрано товаров: 17
