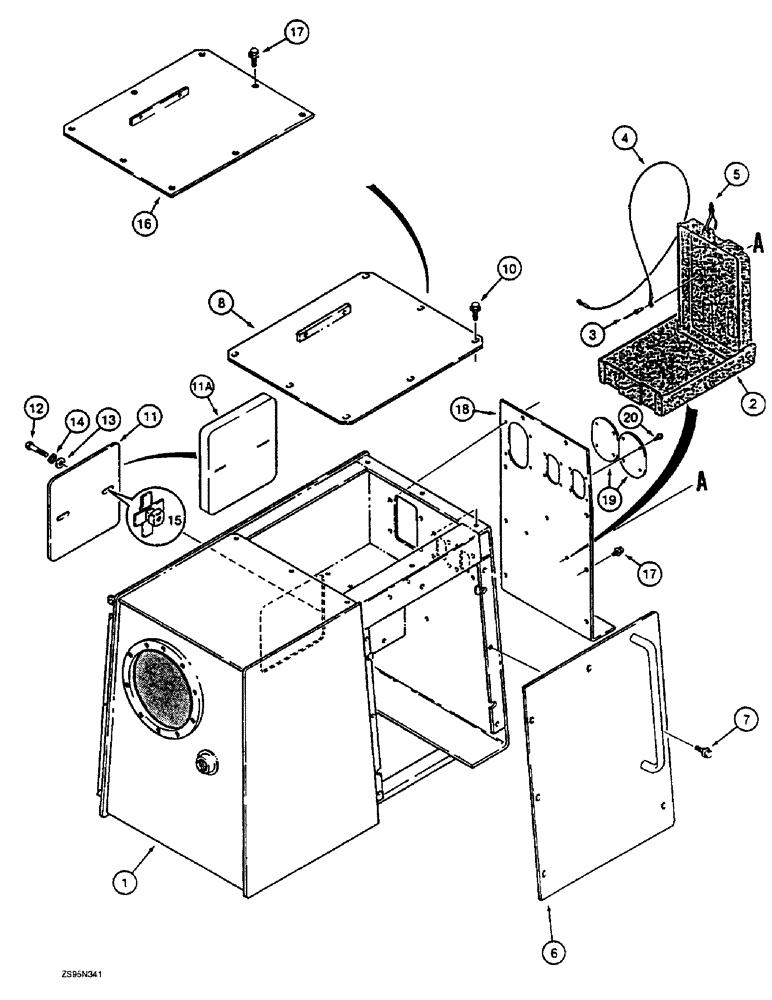

Запчасти Case 1150E (8-004) - HYDRAULIC RESERVOIR COVERS AND, OPERATORS MANUAL BOX, PARTS USED ONLY ON MODELS W/CAB (08) - HYDRAULICS

1

R49451

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic, see Figure 8-2 for mounting and related parts, see Figure 8-6 for in-tank filters

1шт.

2

R46466

BOX

- operators manual

1шт.

3

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 17/32 inch

3шт.

4

D126821

CABLE

CORD - manual retaining

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

R58452

HOOD

COVER - outer side, with handrail

1шт.

7

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

7шт.

8

R43215

LARGE PLATE

COVER - top, includes decals, use on models without a winch or cab, if used

1шт.

9

R43217

LARGE PLATE

COVER - top, includes decals,use on winch models without a cab, if used, not shown

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

Use with item 8 or 9 top cover, if used Hex Flg, 3/8"-16 x 1", G8, Full Thd

7шт.

11

R30357

COVER

- access, hydraulic reservoir frame, inner

1шт.

11a

REF

INSTRUCTION

PAD - access cover, cut from bulk pad, see item 3 on Figure 9-84, attach to cover with adhesive, see below

1шт.

12

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

R30355

STEEL SHEET NUT

RETAINER - cover

2шт.

16

R54528

COVER

- top, includes decals

1шт.

17

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

16шт.

18

R53240

COVER

- front, control levers

1шт.

19

R47916

LARGE PLATE

PLATE - cover, cab models without secondary control lever(s), if used

1шт.

20

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, truss head Phillips, No. 10-16 x 1/2 "

4шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce

1шт.
