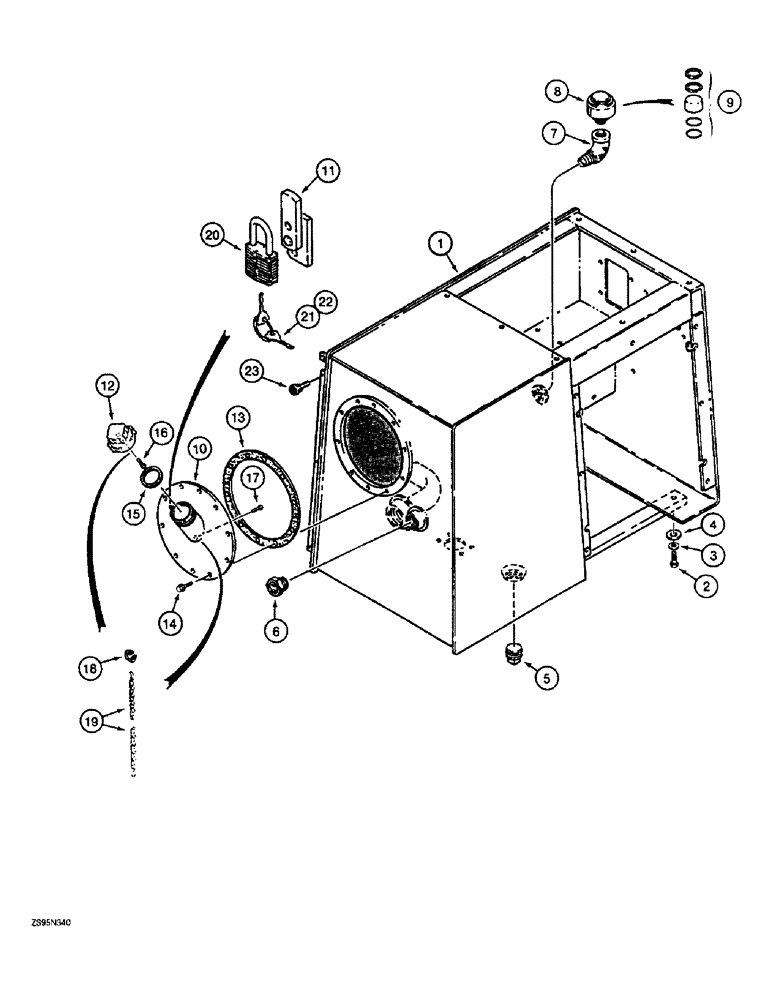

Запчасти Case 1150E (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

R49451

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic, see Figure 8-4 for manual box

1шт.

2

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch

4шт.

3

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

4

D44330

SHIM,.031" Thk

(21/32" ID x 1-1/4" OD), Tank leveling, if used .031" Thk

1шт.

5

221-49

PLUG,Sq Hd, 1 1/2"-11 1/2 NPTF

- square, 3/4 inch PT, black

1шт.

6

L106452

GAUGE

- sight, hydraulic reservoir

1шт.

7

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- street, 90 degree, 3/4 inch PT, 90 degree, black, may replace 221-215 nipple and 221-378 90 degree pipe elbow used in production on some models

1шт.

8

R42714

BREATHER

- hydraulic reservoir, Includes: Ref. 9

1шт.

9

N6475

SET

KIT - breather, includes element, two O-rings and two snap rings

1шт.

10

178980A1

COVER

- hydraulic reservoir, rear, with filler tube, Includes: Ref. 11 & 12

1шт.

11

R46704

BRACKET

TAB - locking, filler cap

1шт.

12

L128669

CAP

- filler

1шт.

13

R46621

GASKET

- rear cover

1шт.

14

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8, replaces regular hex bolt and lock washer used on some models

10шт.

15

R46984

GASKET

- filler cap

1шт.

16

301-14712

SCREW,Drive, #12 x 3/4"

- drive, round head, No. 12 x 3/4 inch

1шт.

17

301-1478

DRIVE SCREW,Drive, #12 x 1/2"

- drive, round head, No. 12 x 1/2 inch

1шт.

18

R48634

FASTENER

HOOK - chain

1шт.

19

R47786

CHAIN (CE)

CHAIN - filler cap

1шт.

20

D93753

PADLOCK

- filler cap, Includes: Ref. 21 or 22

1шт.

21

R29555

KEY

- for Master padlock only

2шт.

22

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

23

A161780

BUMPER

- rubber, use on models with hinged rear cover, if used

3шт.
