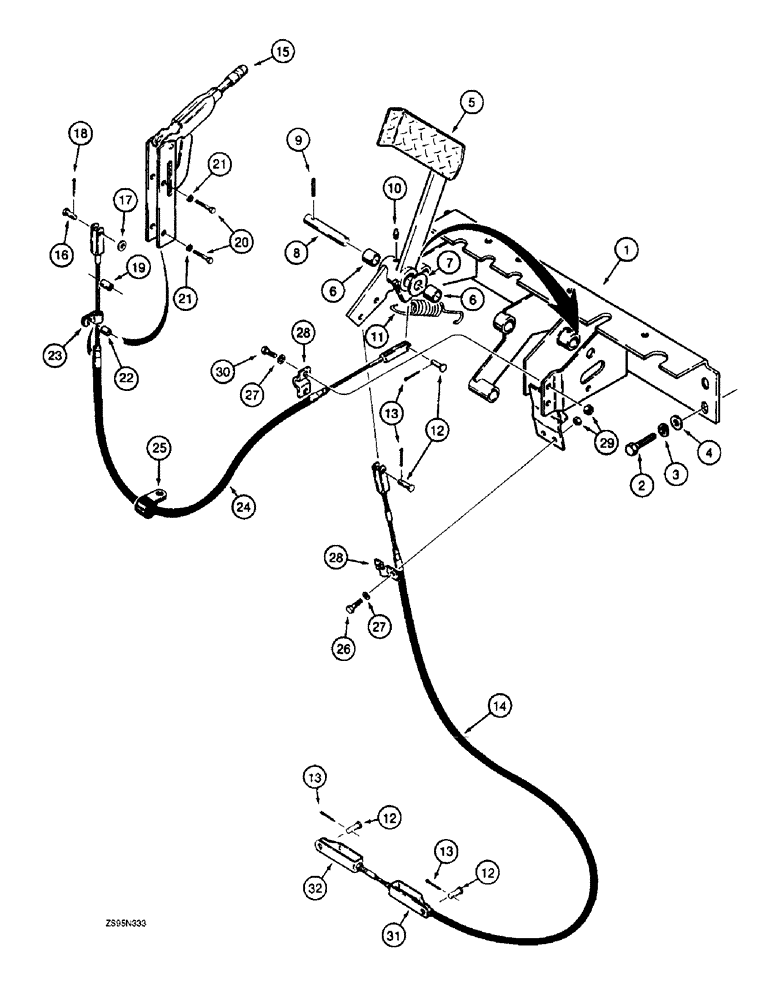

Запчасти Case 1150E (7-10) - PARKING BRAKES - MANUAL (07) - BRAKES

1

REF

INSTRUCTION

FRAME - brake mounting, see Figure 7-6 or 7-8, loader model shown

1шт.

2

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, plated

3-5шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3-5шт.

4

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch, plated

3-5шт.

5

R57633

PEDAL

- parking brake, was R46767, Includes: Ref. 6

1шт.

6

R29752

BUSHING

- pedal

2шт.

7

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD) 1/32" Thk

1шт.

8

R27501

SHAFT

- pedal

1шт.

9

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

11

106637A1

SPRING

- pedal return

1шт.

12

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

4шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

R50744

CABLE

- parking brake pedal

1шт.

D40687

LEVER

ASSEMBLY - parking brake, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

LEVER - manual brake

1шт.

16

D42458

PIN

- clevis, lever

1шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

19

D40685

SPACER

- hand lever, upper

1шт.

20

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, grade 8

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

D30863

TUBE

SPACER - hand lever, lower

1шт.

23

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- parking brake cable, lever

1шт.

24

R52019

CABLE

- parking brake lever

1шт.

25

D34174

CLAMP,5/8", 1/2" Bolt

- cable, P-type, 5/8 inch ID, lever, use control tower mounting hardware

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, plated

2шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

R26118

CLAMP

- brake pedal

2шт.

29

425-106

NUT,3/8"-16, Cl 5

4шт.

30

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

31

R50818

YOKE

CLEVIS - pedal cable, right-hand transmission brake lever, with notch

1шт.

32

R50817

YOKE

CLEVIS - pedal cable, left-hand transmission brake lever

1шт.
