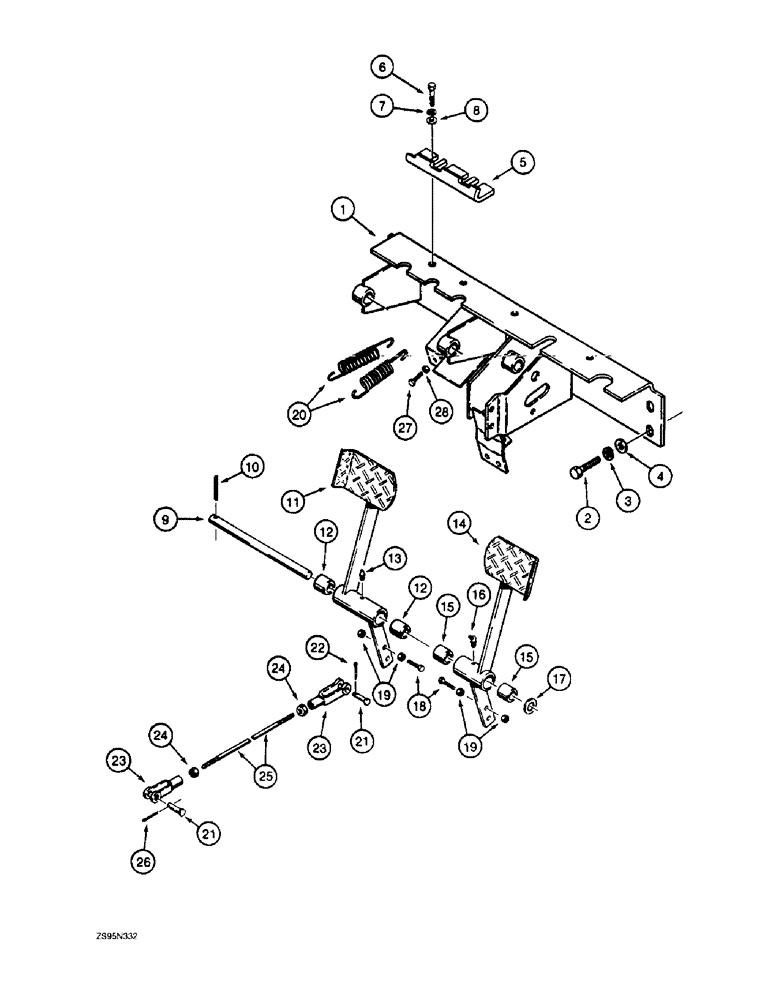

Запчасти Case 1150E (7-08) - POWER BRAKES - PEDALS AND RODS, DOZER AND DRAWBAR MODELS ONLY (07) - BRAKES

1

R45760

FRAME

- brake mounting, no longer used, order R57637 frame below and R57633 pedal ref 5 Figure 7-10

1шт.

1

R57637

BRACKET

FRAME - brake mounting

1шт.

2

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, plated

3шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

4

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch, plated

3шт.

5

R37371

SUPPORT

BRACKET - brake pedal stop

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch, plated

2шт.

9

R43587

SHAFT

Brake pedals

1шт.

10

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

11

R45772

PEDAL ASSY.

PEDAL - brake, left-hand, Includes: Ref. 12

1шт.

12

R29752

BUSHING

- pedal

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, left-hand pedal

1шт.

14

R45773

PEDAL ASSY.

PEDAL - brake, right-hand, Includes: Ref. 15

1шт.

15

R29752

BUSHING

- pedal

2шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 29/32 inch, special short, right-hand pedal

1шт.

17

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD) 1/32" Thk

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, plated

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, plated

4шт.

20

106637A1

SPRING

- pedal return

2шт.

21

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

4шт.

22

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , At pedals 3/32" x 3/4"

2шт.

23

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF, plated

4шт.

24

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF, plated

4шт.

25

R46619

TRUSS ROD

ROD - brake control

2шт.

26

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , at control valve 3/32" x 1/2"

2шт.

27

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

28

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC, plated

1шт.
