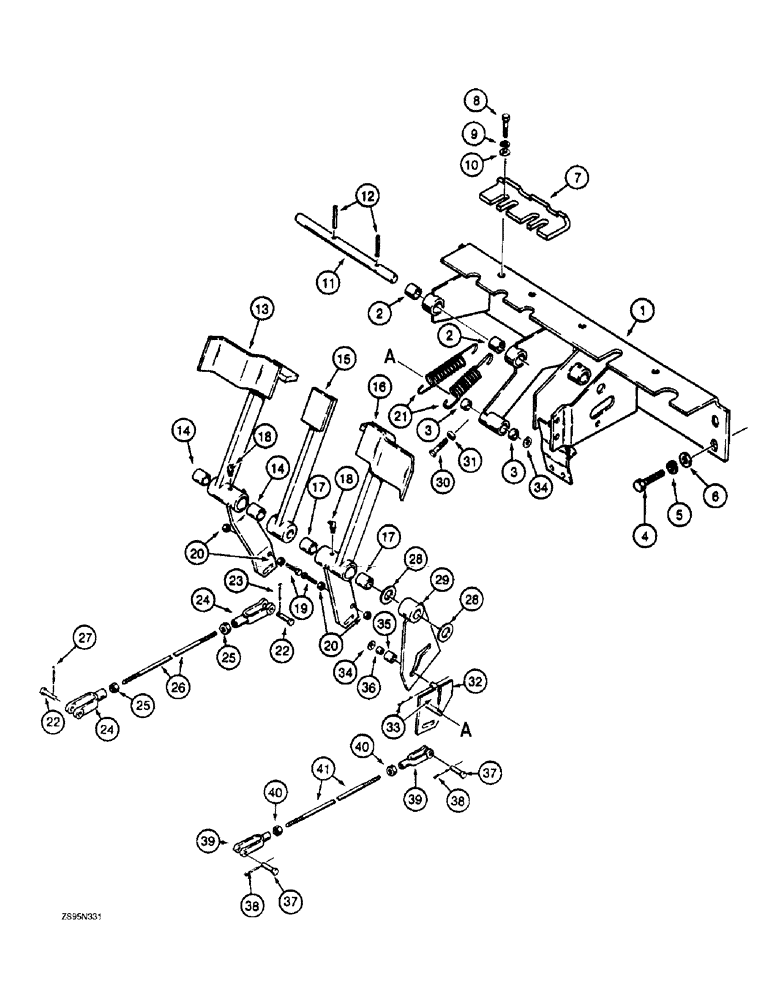

Запчасти Case 1150E (7-06) - POWER BRAKES - PEDALS AND RODS, LOADER MODELS ONLY (07) - BRAKES

1

R43554

FRAME

- brake mounting, no longer used, order R57638 frame below and R57633 pedal ref 5 Figure 7-10, Includes: Ref. 2 & 3

1шт.

1

R57638

BRACKET

FRAME - brake mounting, Includes: Ref. 2 & 3

1шт.

2

R29752

BUSHING

- frame, pedal shaft

2шт.

3

R27466

BUSHING

- frame, follower cam shaft

2шт.

4

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, plated

5шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

6

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch, plated

5шт.

7

R37371

SUPPORT

BRACKET - brake pedal stop

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch, plated

2шт.

11

R27495

SHAFT

- brake pedals

1шт.

12

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

2шт.

13

R49048

PEDAL

- brake, left-hand, Includes: Ref. 14

1шт.

14

R29752

BUSHING

- pedal

2шт.

15

R49059

PEDAL

- modulator

1шт.

16

R49047

PEDAL

- brake, right-hand, Includes: Ref. 17

1шт.

17

R29752

BUSHING

- pedal

2шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 29/32 inch, special short

2шт.

19

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, plated

2шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, plated

4шт.

21

106637A1

SPRING

- pedal return

2шт.

22

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

4шт.

23

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , At pedals 3/32" x 3/4"

2шт.

24

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF, plated

4шт.

25

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF, plated

4шт.

26

R46619

TRUSS ROD

ROD - brake control

2шт.

27

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , at control valve 3/32" x 1/2"

2шт.

28

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD) 1/32" Thk

1шт.

29

R27491

CAM

- modulator

1шт.

30

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

31

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC, plated

1шт.

32

R33694

BRACKET

- cam follower

1шт.

33

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

35

R27497

COLLAR

BOSS - cam, Includes: Ref. 36

1шт.

36

R27466

BUSHING

- boss

1шт.

37

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

2шт.

38

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

39

213-114

ADJUSTABLE CLEVIS,1/4" - 28

CLEVIS - adjustable, 1/4 inch NF

2шт.

40

425-114

NUT,1/4"-28, G5

2шт.

41

R46618

TRUSS ROD

ROD - modulator control

1шт.
