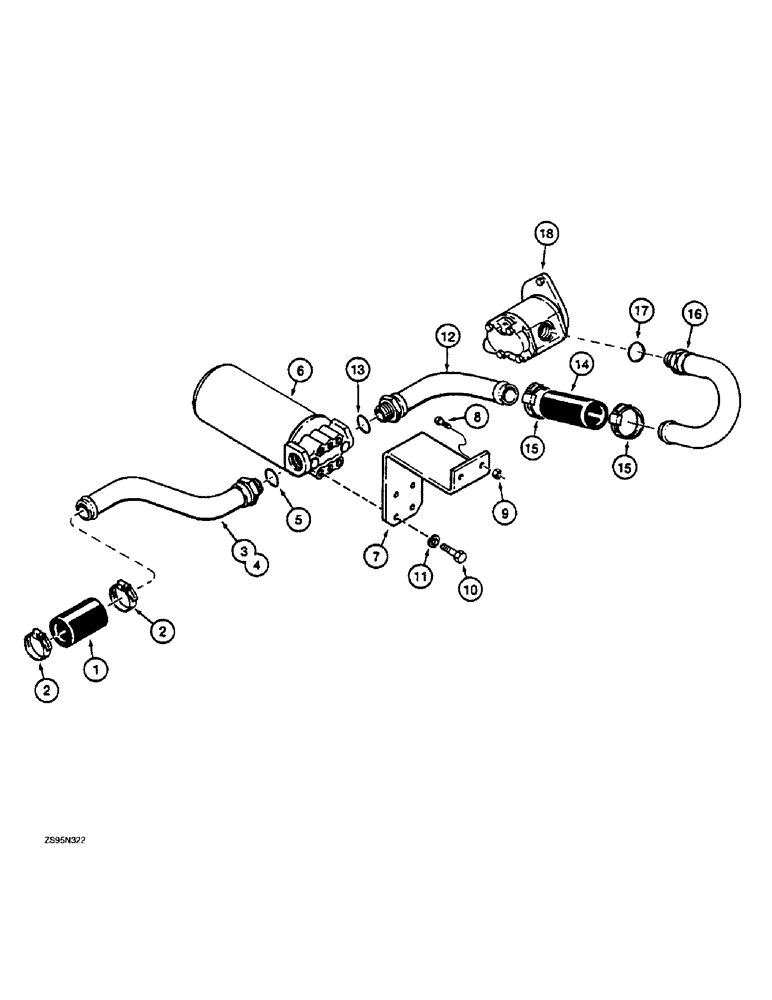

Запчасти Case 1150E (6-50) - TRANSMISSION HYDRAULIC CIRCUIT, TRANSMISSION TO CHARGING PUMP SUCTION LINE (06) - POWER TRAIN

1

R44004

HOSE

- 3-1/2 inch (89 mm) long, at transmission, cut from R45924 hose, see below

1шт.

2

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj, 1-1/4 - 2-1/8 inch dia, heavy duty

2шт.

3

R52172

PIPE,38.1 mm OD

TUBE - from transmission, dozer and drawbar models only

1шт.

4

R52170

PIPE,38.1 mm OD x 246, 123 mm L

TUBE - from transmission, loader models only

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

R50627

FILTER

ASSEMBLY - suction line, parts list Figure 6-56

1шт.

7

R52169

SUPPORT

BRACKET - filter mounting

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

9

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

R52211

PIPE,38.1 mm OD x 117, 138 mm L

TUBE - from filter

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

14

R43918

HOSE

- 4-1/2 inch (114 mm) long, to transmission charging pump, cut from R45924 hose, see below

1шт.

15

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj, 1-1/4 - 2-1/8 inch dia, heavy duty

2шт.

16

R27913

TUBE,38.1 mm OD x 152.4, 114.3 mm L

- to transmission charging pump

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, tube

1шт.

18

R25586

PUMP

ASSEMBLY - transmission charging, parts list Figure 6-58, mounting parts on Figure 6-48

1шт.

R25586R

REMAN-HYD PUMP

1150E,1155E

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

R45924

HOSE

- 1-1/2 (38) ID x 9-1/2 inch (241 mm) long

1шт.
