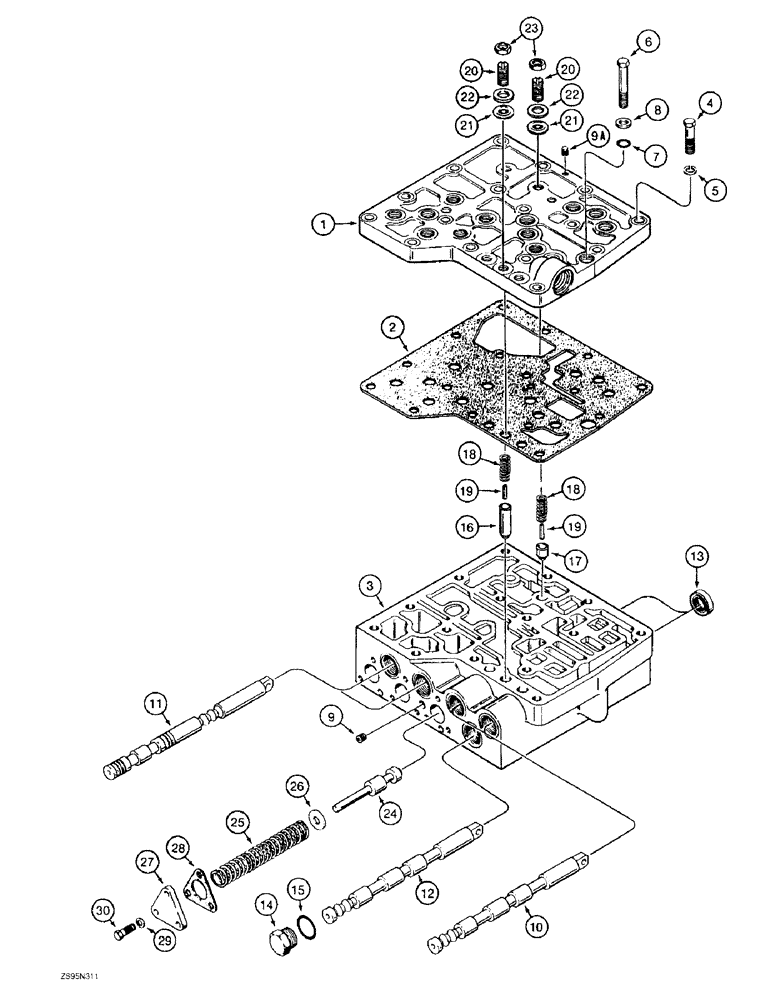

Запчасти Case 1150E (6-28) - TRANSMISSION CONTROL VALVE, COVER AND BASE, HIGH-LOW AND FOR.-REV. SPOOLS, PRESSURE REGULATOR SPOOLS (06) - POWER TRAIN

1

A50729

COVER

- control valve

1шт.

2

1340748C2

GASKET

- valve cover, to body (replaces 1978115C1 gasket)

1шт.

Part of Seal Kit, P/N 1341844C1

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

15шт.

5

492-11038

LOCK WASHER,3/8"

15шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

7

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Bolt seal

1шт.

Part of Seal Kit, P/N 1341844C1

1шт.

8

A50820

WASHER

- flat, hardened, special

1шт.

9

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT, black, valve body

1шт.

9a

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT, black, valve cover

1шт.

10

A140775

SPOOL

- forward and reverse

2шт.

11

A50737

SPOOL

- high-low, track

2шт.

12

A140955

SPOOL

- high-low, range

1шт.

13

G105118

OIL SEAL

- oil, double lip

5шт.

Part of Seal Kit, P/N 1341844C1

1шт.

14

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss

5шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug

1шт.

Part of Seal Kit, P/N 1341844C1

1шт.

16

A50821

VALVE

PIN - detent, long

1шт.

17

A50822

PIN

- detent, short

4шт.

18

G100767

SPRING

- detent

5шт.

19

38-11210

LOCK PIN,3/16" x 5/8", Slotted

5шт.

20

82-45020

SET SCREW,1/2"-13 x 1 1/4", Slotted

SCREW - set, slotted headless, 1/2 x 1-1/4 inch, oval point

5шт.

21

A50733

SEAL

- detent adjusting screw

5шт.

Part of Seal Kit, P/N 1341844C1

1шт.

22

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

5шт.

23

425-158

JAM NUT,Jam, 1/2"-20, G5

5шт.

24

A51136

SPOOL

- pressure regulator

1шт.

25

A50755

SPRING

- pressure regulator

1шт.

26

A51138

RETAINER

- spring

1шт.

27

A50752

PLATE

- brake spool cover

1шт.

28

A50753

GASKET

- cover plate and rod housing

1шт.

Part of Seal Kit, P/N 1341844C1

1шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

30

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

1341844C1

SET OF PARTS

KIT - seal, control valve, includes Refs. 2, 7, 13, 15, 21 and 28, for complete kit see Figure 6-44

1шт.
