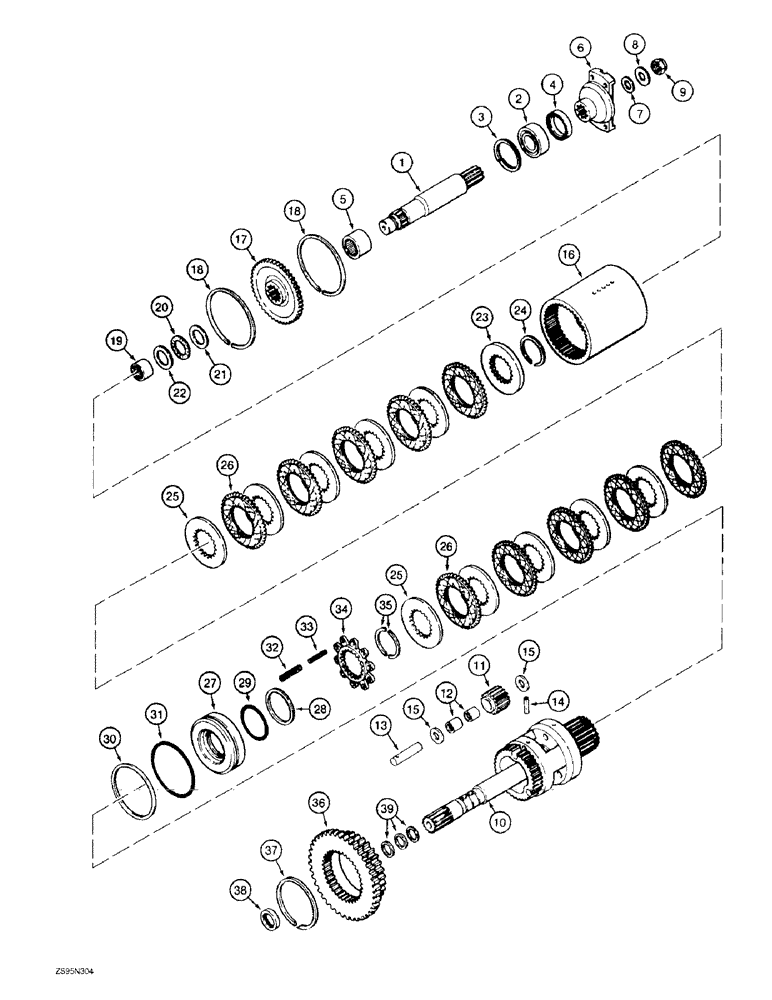

Запчасти Case 1150E (6-14) - TRANSMISSION INPUT SHAFT, TRANSMISSION PLANETARY SYSTEM (06) - POWER TRAIN

1

A50605

SHAFT

- input, transmission

1шт.

2

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, input shaft

1шт.

3

A51419

SNAP RING,#354, 3.684, Int, Spiral

RING - snap, ball bearing

1шт.

4

A50420

SEAL

- oil, part of front cover assembly, see Figure 6-10

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

5

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

BEARING - needle, input shaft

1шт.

6

G103021

YOKE

- input shaft to drive shaft

1шт.

7

A50608

WASHER

- plastic

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

8

A51808

WASHER

- flat, special

1шт.

9

131-465

LOCK NUT,7/8"-14, G8

NUT - thin hex, self-locking, 7/8 inch NF

1шт.

1348916C2

GEAR WHEEL

PLANETARY ASSEMBLY - with high range clutch, was G102422, Includes: Ref. 10 - 39

1шт.

10

1348878C2

GEAR WHEEL

CARRIER - planetary, was A50964

1шт.

11

A50616

GEAR

- planetary, 18 teeth

3шт.

12

A62548

NEEDLE BEARING,0.62" ID x 0.88" OD x 0.875"

BEARING - needle, planetary gear

6шт.

13

A50618

SHAFT

- planetary gear

3шт.

14

38-1814

LOCK PIN,1/8" x 7/8", Slotted

Pin, 1/8" x 7/8", Slotted

3шт.

15

A50617

WASHER

- thrust, planetary gear

6шт.

16

G102600

RING

GEAR - ring, planetary

1шт.

17

A50637

GEAR

- 70 external teeth

1шт.

18

A50639

RING

- snap, gear

2шт.

19

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING - needle, clutch

1шт.

20

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - thrust, gear

1шт.

21

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

RACE - thrust bearing, 0.032 inch (0.793 mm) thick, inner

1шт.

22

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

RACE - thrust bearing, 0.125 inch (3.17 mm) thick, outer

1шт.

23

A50634

PLATE

- backing

1шт.

24

101-11287

SNAP RING,#287, 2.713, Ext

RING - snap, clutch

1шт.

25

A50631

PLATE

- steel, 22 internal teeth

10шт.

26

G102263

DISC

- friction, 70 external teeth

10шт.

A50621

PISTON

ASSEMBLY - high range clutch, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON - high range clutch

1шт.

28

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- seal, inner

1шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

29

238-5042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

-042, 70 Duro, 3.239" ID x .070" Thk, Wave, Inner

1шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

30

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - seal, outer

1шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

31

238-5047

O-RING,0.07" Thk x 4.49" ID, -47, Cl 5, 75 Duro

-047, 70 Duro, 4.489" ID x .070" Thk, Wave, Outer

1шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

32

A50627

SPRING

- piston return, outer

10шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

33

A50628

SPRING

- piston return, inner

10шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

34

A50629

RETAINER

- piston return springs

1шт.

35

A50630

RING

- split, spring retainer, includes both halves

1шт.

36

G106716

GEAR

- forward and reverse drive

1шт.

37

A50620

RING

- snap, gear retaining

1шт.

38

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, planetary output shaft

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

39

A51841

RING

- seal, planetary output shaft

3шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

G101829

GASKET KIT

KIT - transmission seal, includes Refs. 4, 7, 38 and 39, for complete kit see Figure 6-38

1шт.

G101831

GASKET KIT

KIT - clutch repair, includes Refs. 28 through 33, for complete kit see Figure 6-40

1шт.
