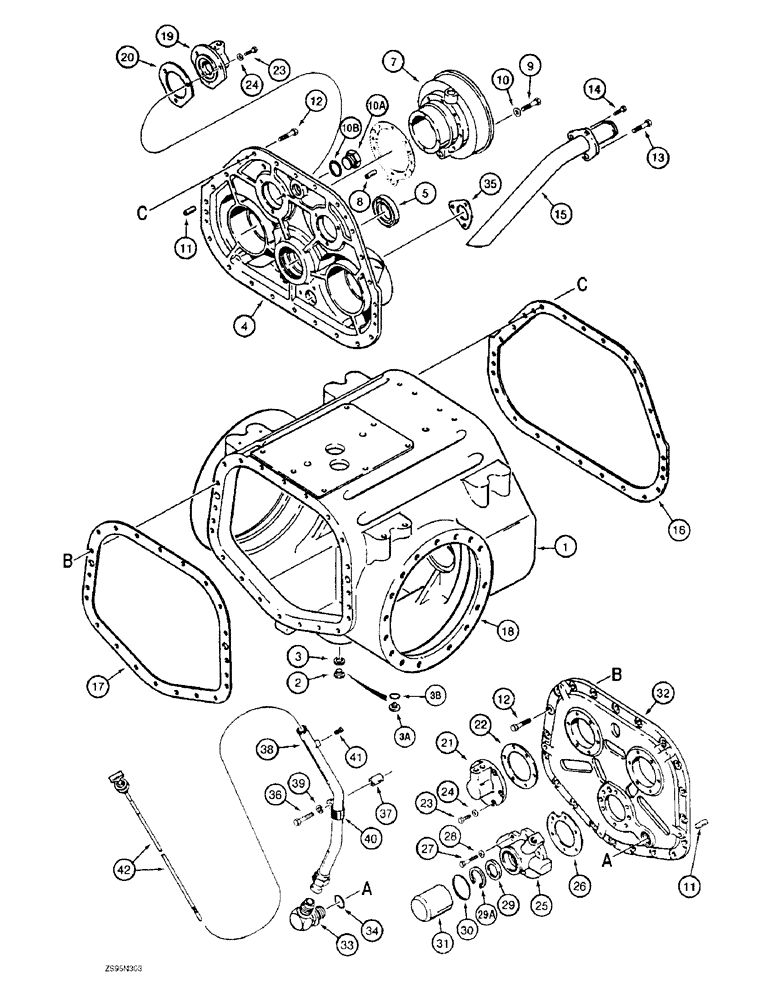

Запчасти Case 1150E (6-10) - TRANSMISSION HOUSING, COVERS, AND DIPSTICK (06) - POWER TRAIN

G107561

TRANSMISSION

ASSEMBLY - for complete parts list see Figures 6-10 through 6-36

1шт.

1

G103460

HOUSING

- transmission

1шт.

2

A50014

PLUG

- square socket, 3/4 inch NF, transmission housing, if used

1шт.

3

G102141

SEALING WASHER

WASHER - copper, seal, use with A50014 drain plug (item 2), if used

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

3a

9841223

PLUG,1-1/16" - 12 ORB

Transmission drain, If used, Incl. Ref. 3B Hex Soc, 1 1/16"-12 ORB

1шт.

3b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk (item 3A)

1шт.

G109165

COVER

ASSEMBLY - front, transmission, Includes: Ref. 4 - 10

1шт.

4

G109121

COVER

- front

1шт.

5

A50420

SEAL

- oil, input shaft

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - brake, order G109165 cover assembly

2шт.

8

S64319

CALIPER

PIN - dowell, locating, 1/2 x 1-1/2 inch, brake housing

4шт.

9

166-70

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

BOLT - 12 point flange, 7/16 NC x 2-1/4 inch, grade 8

16шт.

10

A50689

WASHER

- flat, special, 1/2 x 13/16 x 1/16 inch, hardened

16шт.

10a

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Front cover, Includes: Ref. 10B Hex Hd, 1 1/16"-12 ORB

1шт.

10b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

11

S64319

CALIPER

PIN - dowell, locating, 1/2 x 1-1/2 inch, front and rear covers

4шт.

12

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

41шт.

13

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

Suction tube, lower hole Hex, 1/2"-13 x 2 1/2", G8

1шт.

14

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Suction tube, upper holes Hex, 3/8"-16 x 1", G8, Full Thd

2шт.

15

A51515

TUBE

- oil suction

1шт.

16

1342378C1

GASKET

- front cover, was G35210

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

17

1342432C1

GASKET

- rear cover, was G35211

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

18

B17504

GASKET

SEALANT - Gasket Eliminator No. 504, 300 ml cartridge, seals final drive housings to transmission housing, not shown

1шт.

19

A50671

CAP

COVER - front, clutch shaft

2шт.

20

1981240C1

GASKET

- clutch shaft cover, was R11428

2шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

21

A50672

CAP

COVER - rear, clutch shaft

2шт.

22

1342256C1

SHIM

- 0.002 inch (0.0508 mm) thick, was 72223

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

22

1342255C1

SHIM

- 0.007 inch (0.178 mm) thick, was 22038

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

18шт.

24

D32117

COPPER WASHER

WASHER, COPPER, 3/8 inch

18шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

25

G110595

COVER

- rear, planetary output shaft, with ports

1шт.

26

G102757

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

26

G102758

SHIM,.007" Thk

(0.1778 mm) .007" Thk

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

27

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

6шт.

28

D32117

COPPER WASHER

WASHER, COPPER, 3/8 inch

6шт.

29

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, planetary output shaft

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

29a

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, , Oil seal, if used 2.062", Int, #206

1шт.

30

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Used on models with a winch, not part of transmission assembly, order separately -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

31

G101696

PROTECTIVE COVER

COVER - guard, planetary output shaft

1шт.

32

G106230

PLATE

COVER - rear

1шт.

33

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, 1-7/8-12 inch flare x adj O-ring boss, fill tube, Includes: Ref. 34

1шт.

34

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk, Elbow

1шт.

35

1981224C1

GASKET

- oil suction tube, was A51732

1шт.

36

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

37

G107798

SPACER

- filler tube

1шт.

38

R47647

TUBE,1.5" OD

- oil filler

1шт.

Not included with G107561 Transmission asssembly. Must be ordered separately.

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

Not included with G107561 Transmission asssembly. Must be ordered separately.

1шт.

40

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type, Filler tube 1 1/2", Insul, 1/2" Bolt

1шт.

Not included with G107561 Transmission asssembly. Must be ordered separately.

1шт.

41

D63543

BREATHER

- filler tube

1шт.

Not included with G107561 Transmission asssembly. Must be ordered separately.

1шт.

42

R46986

DIPSTICK

- transmission oil

1шт.

Not included with G107561 Transmission asssembly. Must be ordered separately.

1шт.

G101829

GASKET KIT

KIT - transmission seal, includes Refs. 3, 5,16, 17, 20, 22, 24, 26 and 29, for complete kit see Figure 6-38

1шт.
