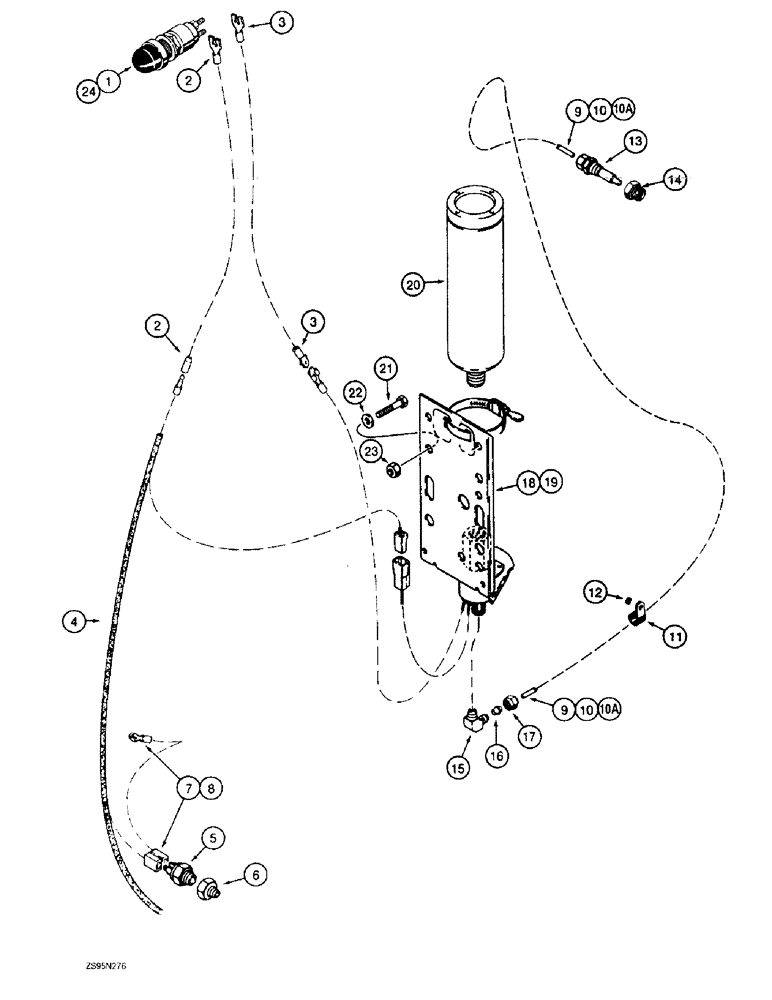

Запчасти Case 1150E (4-62) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

S241920

SWITCH

- push button, cold start (replaces D34924 switch), on instrument panel

1шт.

2

R52251

ELECTRICAL WIRE

WIRE - 16-1/8 inch (410 mm) long, push button switch, to front harness pin connection

1шт.

Route Ref. 2 and 3 wires with front wiring harness using the same clamps and tie straps. See Figure 4-28 or 4-30 for front wiring harness routing.

1шт.

3

R52250

ELECTRICAL WIRE

WIRE - 20 inch (510 mm) long, push button switch, to ether start valve wire

1шт.

Route Ref. 2 and 3 wires with front wiring harness using the same clamps and tie straps. See Figure 4-28 or 4-30 for front wiring harness routing.

1шт.

4

REF

INSTRUCTION

HARNESS - front wiring, see Figure 4-28 or 4-30 for correct harness

1шт.

5

A172117

SWITCH

THERMOCOUPLE - on engine

1шт.

6

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

use on loader and 62 inch gauge long track dozer models only 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

7

R52849

ELECTRICAL WIRE

WIRE - temperature switch ground, use on loader and 62 inch gauge long track dozer models only, use front harness clamp hardware

1шт.

8

R52252

ELECTRICAL WIRE

WIRE - temperature switch ground, all dozer models except 62 inch gauge long track dozer and drawbar models only, use injection pump mounting hardware

1шт.

9

D36944

TUBE

- nylon, 39-7/16 inch (1000 mm) long, cut from L60539X bulk tube, use on loader models only, see below

1шт.

10

R52565

TUBE,0.125" OD x 29.5" L

- nylon, 29-1/2 inch (750 mm) long, cut from L60539X bulk tube, use on all dozer models except 62 inch gauge long track dozer and drawbar models only, see below

1шт.

10a

L16688

TUBE,0.078" ID x 0.125" OD x 32" L

- nylon, 32 inch (813 mm) long, cut from A138483 tube, use on 62 inch gauge long track dozer models only

1шт.

11

51200330

CLAMP

- tube, P-type, 3/16 inch ID, use engine hardware

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Use on loader and 62" gauge long track dozer models only 1/2"

1шт.

13

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - cold start injection, atomizer, component parts not serviced separately

1шт.

14

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch PT, for dozer and drawbar models only

1шт.

15

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 16 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

16

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

17

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

18

A172516

VALVE

- solenoid, starting fluid injection, 3 cc injection volume, with bracket, component parts not serviced separately, use on loader and 62 inch gauge long track dozer models only

1шт.

19

A173281

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, starting fluid injection, 6 cc injection volume, with bracket, component parts not serviced separately, for all dozers except 62 inch gauge long track and drawbar models

1шт.

20

A171940

CYLINDER

- starting fluid

1шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

24

B17425

LOCTITE

SEALANT - pipe threads, with Teflon, Loctite No. 92, 50 ml tube, use to seal the rubber boot of Ref. 1 switch

1шт.

L60539X

TUBE

- bulk, nylon, 1/8 (3) ID x 168 inch (4267 mm) long

1шт.

A138483

TUBE

- bulk, nylon, 99 inch (2515 mm) long

1шт.
