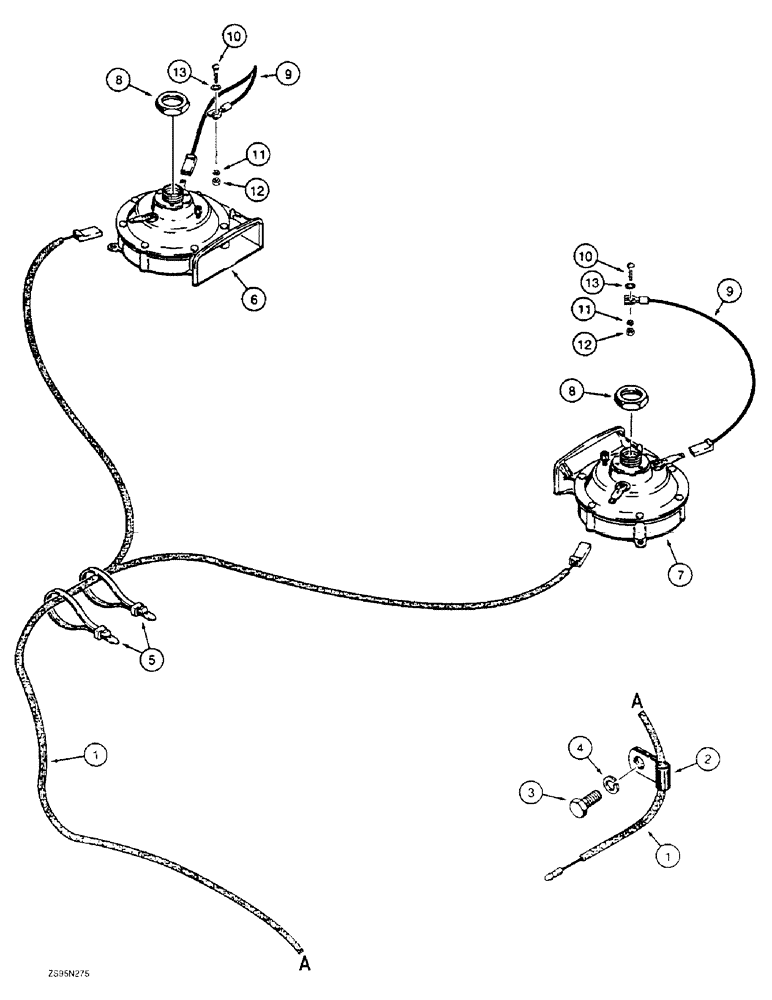

Запчасти Case 1150E (4-60) - HORN (04) - ELECTRICAL SYSTEMS

1

R49617

HARNESS

WIRE, Serial Range: --horns

1шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Wire, Back of alternator, dozer and drawbar models only 3/8", Insul, 3/8" Bolt

1шт.

3

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

1шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

D77650

HORN

- A note, 24 volt, left-hand, includes an item 8 nut and a bracket that is not used on this tractor

1шт.

7

R45461

HORN

- F note, 24 volt, right-hand, includes an item 8 nut and a bracket that is not used on this tractor

1шт.

8

L30866

LOCK NUT

- hex, special

2шт.

9

R36131

ELECTRICAL WIRE

WIRE - ground

2шт.

10

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

11

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

12

225-14110

NUT,#10-24

2шт.

13

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.
