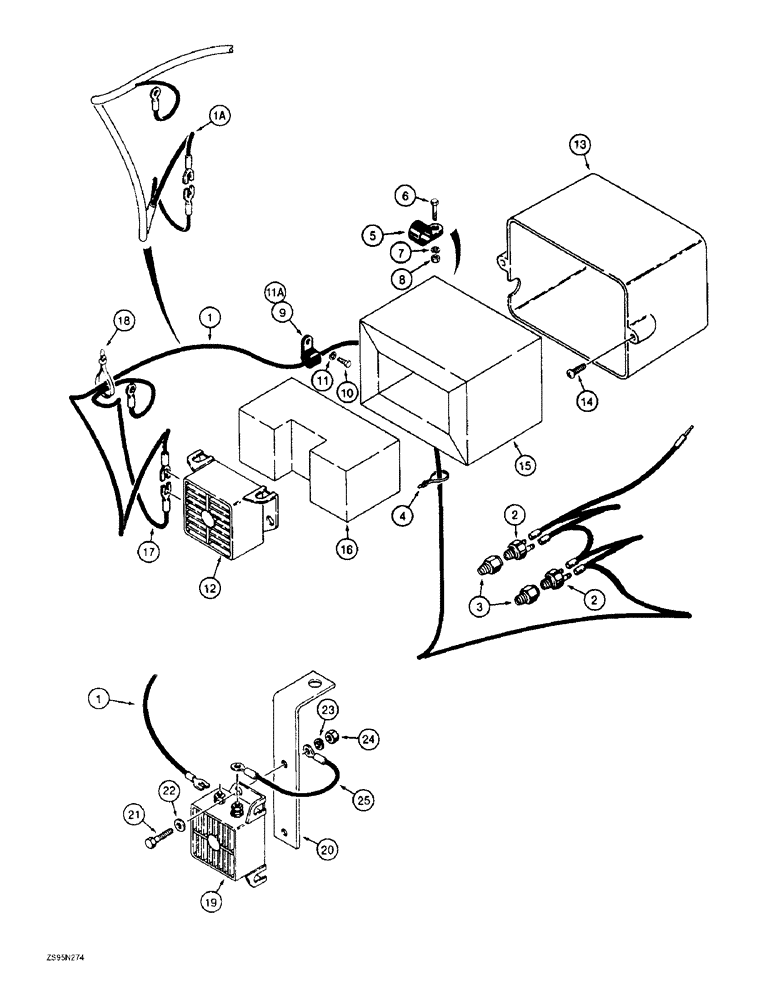

Запчасти Case 1150E (4-58) - BACKUP ALARM, PARTS USED ON ALL MODELS (04) - ELECTRICAL SYSTEMS

1

R49867

HARNESS

- backup alarm, to switches and rear wiring harness, without ground wire, no longer used, order R57520 harness, item 1

1шт.

1

R57520

HARNESS

- backup alarm, to switches and rear wiring harness, with ground wire

1шт.

2

D139904

SWITCH

- pressure, at transmission control valve reverse lines

2шт.

3

R52651

FITTING

SNUBBER - pressure switch

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Backup alarm harness, to seat and tank frame 1/2", Insul, 3/8" Bolt

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- backup alarm harness, P-type, 3/16 inch ID, to fuel tank, for R49867 harness

1-2шт.

10

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1-2шт.

11

492-11038

LOCK WASHER,3/8"

1-2шт.

11a

129083R1

CLAMP

- backup alarm harness, P-type, 5/8 inch ID, to fuel tank, for R57520 harness with conduit protection

1шт.

12

L112318

ALARM

- backup, mounted on rear access door

1шт.

13

R50647

BOX

COVER - plastic, backup alarm mounted on rear access door

1шт.

14

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

Backup alarm mounted on rear access door Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

15

R50648

FOAM

SEAL - foam, backup alarm mounted on rear access door

1шт.

16

R51815

PAD

- foam, 2 (50 mm) x 2-1/2 (65 mm) x 10 inch (255 mm), cut a double thickness from R30870 bulk, see below, backup alarm mounted on rear access door

1шт.

17

R50295

CABLE

WIRE - ground, use access cover mounting hardware, used with R49861 harness, item 1 above, backup alarm mounted on rear access door

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, backup alarm mounted on rear access door

1шт.

19

L112318

ALARM

- backup, mounted on battery mounting bracket

1шт.

20

R51609

ANGLE

- use hardware , backup alarm mounted on battery mounting bracket

1шт.

21

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, backup alarm mounted on battery mounting bracket

2шт.

22

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Backup alarm mounted on battery mounting bracket 1/4", SAE

2шт.

23

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Backup alarm mounted on battery mounting bracket 1/4"

2шт.

24

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, backup alarm mounted on battery mounting bracket

2шт.

25

R41006

ELECTRICAL WIRE

WIRE - ground, backup alarm mounted on battery mounting bracket

1шт.

R30870

PAD

- bulk, 54 (1372) x 72 (1829) x 1 inch (25 mm) thick, backup alarm mounted on battery mounting bracket

1шт.
