Артикул
Название
Примечание
Количество

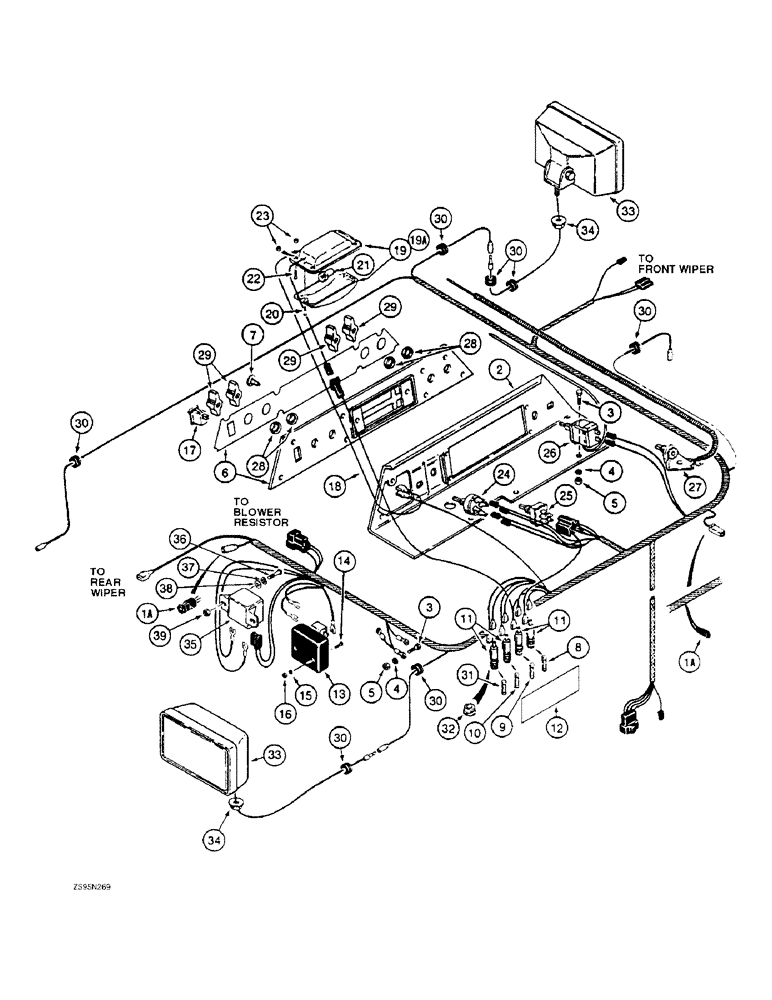

1
R53391
HARNESS
- main wiring, cab, with bullet type connectors for F96902 blower motors, if used
1шт.
For an adapter harness used to adapt R53391 harness with bullet type connectors (Ref. 1) to A187600 blower motor with molded terminals, see Figure 9-102 and 9-108.
1шт.
1a
A187769
HARNESS
- main wiring, cab, with molded terminals for A187600 blower motors and connectors for air conditioning relay (item 35), if used
1шт.
For an adapter harness used to adapt R53391 harness with bullet type connectors (Ref. 1) to A187600 blower motor with molded terminals, see Figure 9-102 and 9-108.
1шт.
2
R53389
SUPPORT
PANEL - control
1шт.
4
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
5
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
2шт.
6
F64629
PANEL ASSY.
PLATE - cab control panel, includes decal
1шт.
7
260-16512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "
8шт.
8
223-35
FUSE,8 Amp, Type 3AG
- 3AG, 8 ampere, blower
1шт.
10
223-38
FUSE,3 Amp, Type 3AG
- 3AG, 3 ampere, rear wiper
1шт.
11
A22874
HOLDER
- fuse
3-4шт.
12
R53390
DECAL
- Heat/Air Blower, Front Wiper, Rear Wiper, A/C
1шт.
13
R44286
RELAY
- cab, electrical accessories
1шт.
14
470-10812
SCREW,Pan HD, #8 - 32 x 3/4"
- machine, pan head slotted, No. 8 NC x 3/4 inch
2шт.
15
492-11008
LOCK WASHER,#8
Washer, Lock, #8
2шт.
16
225-14108
NUT,#8-32
- hex, No. 8 NC
2шт.
17
F45393
SWITCH
- toggle, dome lamp
1шт.
18
F64731
CABLE PULLING GRIP
WIRE - used with F89772 dome lamp only
1шт.
19
F89772
LAMP
- dome, requires F64731 wire (Ref. 18), no longer used, may be replaced with R54198 dome lamp (Ref. 19A), replace 12 volt bulb included in this lamp with 24 volt bulb (Ref. 21)
1шт.
19a
R54198
COURTESY LIGHT
LAMP ASSEMBLY - dome, includes wire which replaces Ref. 18 wire, included in this lamp with 24 volt bulb (Ref. 21), Includes: Ref. 20
1шт.
20
173-297
SCREW,Phil Rnd Hd, #8 - 32 x 1/4"
- machine, round head Phillips, No. 8 NC x 1/4 inch, included in both dome lamp assemblies (Refs. 19 and 19A)
2шт.
21
D71459
LAMP
BULB - No. 1591, 24 volt, dome lamp service replacement
1шт.
22
473-10810
SCREW,Slotted Flat Hd, #8-32 x 5/8"
- machine, flat head slotted, No. 8 NC x 5/8 inch
4шт.
23
225-14108
NUT,#8-32
- hex, No. 8 NC, plated, four used to mount dome lamp (Ref. 19 or 19A), one used to ground F64731 wire (Ref. 18), if used
5шт.
24
F43359
SWITCH
- wiper
1шт.
25
A42622
SWITCH
- blower
1шт.
26
L73646
SWITCH
- temperature control, thermostat
1шт.
27
F64904
CONTROL
- heater, with cable
1шт.
28
A42561
JAM NUT,Hex, 7/16" - 28, RH Thd
- switch retaining
4шт.
29
L74694
KNOB
- control switch
4шт.
30
353-700
BUSHING
- open/closed, 3/8 inch ID
1шт.
31
223-27
FUSE,20 Amp, Type 3AG
- 3AG, 20 ampere, air conditioning, if used
1шт.
32
353-404
PLUG,Dome, .500" hole, Nylon
Used if air conditioning fuse is not used Dome, .500" hole, Nylon
1шт.
33
F96876
LAMP
ASSEMBLY - front and rear flood, parts list Figure 4-44
4шт.
34
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
4шт.
35
1546542C1
RELAY
- air conditioning switch, sealed, 24 volt, was L115883, if used
1шт.
36
140-105
SCREW,Cross Pan Hd, #10 - 24 x 1/2"
2шт.
37
492-11010
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
38
195-513
WASHER,#10
- flat, 7/32 x 1/2 x 3/64 inch
2шт.
39
225-14110
NUT,#10-24
2шт.
