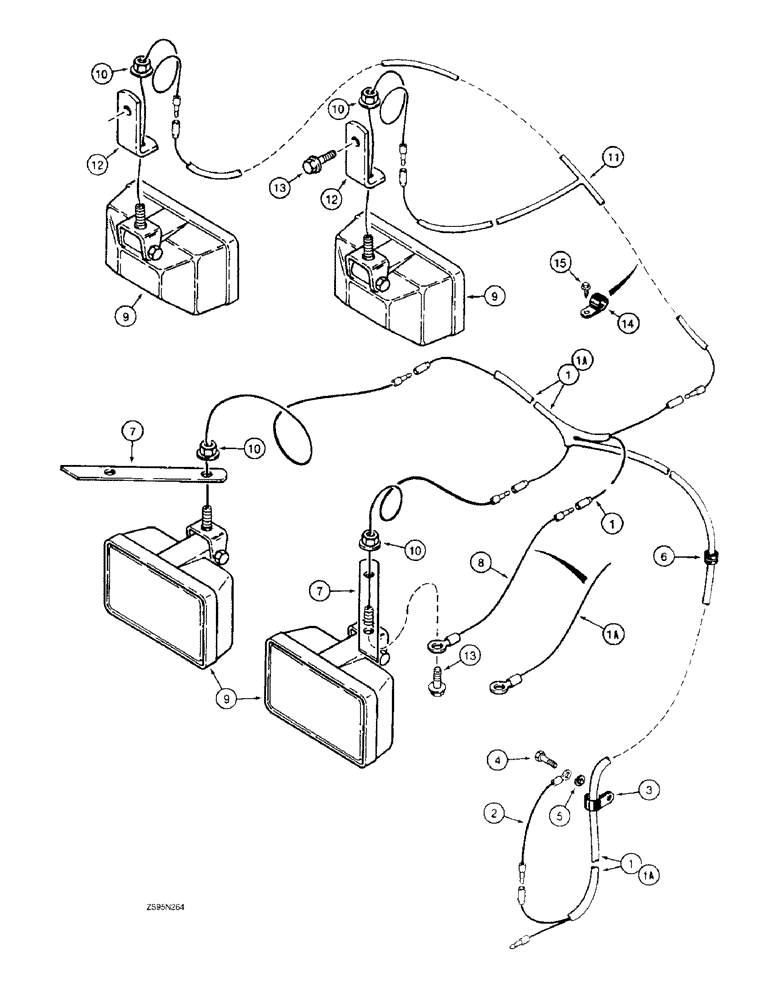

Запчасти Case 1150E (4-36) - LAMPS AND WIRING, MODELS WITH ROPS CANOPY, SEPARATE FRONT & REAR LAMP HARNESSES (04) - ELECTRICAL SYSTEMS

1

R53901

HARNESS

- rear lamps, used with separate R51324 ground wire, (Ref. 8 below), no longer used, order R57311 harness

1шт.

1

R57311

HARNESS

- rear lamps, includes ground wire

1шт.

2

R47747

ELECTRICAL WIRE

WIRE - ground, rear lamp harness

1шт.

3

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type, Rear harness, on hydraulic reservoir 5/16", Insul, 3/8" Bolt

1шт.

4

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

A23870

GROMMET

- rear harness, through top battery cover

1шт.

7

R53887

SUPPORT

BRACKET - rear lamp mounting, use rear screen mounting hardware

2шт.

8

R51324

ELECTRICAL WIRE

WIRE - ground, right-hand rear lamp

1шт.

9

F96876

LAMP

ASSEMBLY - front and rear flood, parts list Figure 4-44

4шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

11

R53900

HARNESS

- front lamps

1шт.

12

R27714

BRACKET

- front lamp mounting

2шт.

13

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

14

S15538

CLAMP,7/16", Insul, 1/4" Bolt

- wire, 7/16 inch ID, if used

10шт.

15

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch, if used

10шт.
