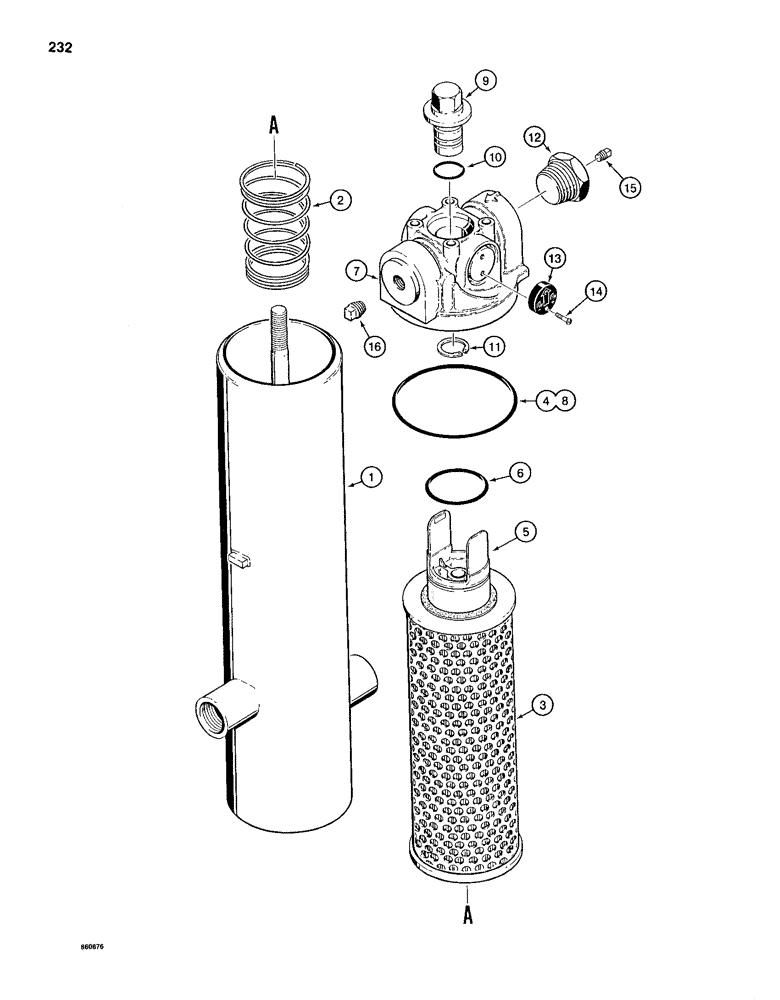

Запчасти Case 1150D (232) - TRANSMISSION OIL FILTER ASSEMBLY, HORIZONTALLY-MOUNTED, IF USED (06) - POWER TRAIN

R47180

FILTER

ASSEMBLY - transmission oil, horizontally-mounted, if used, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - filter

1шт.

2

N6664

VALVE SPRING

SPRING - filter

1шт.

N6665

FILTER

KIT - element, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

4

N6863

O-RING

- filter head, also part of N6662 head assembly

1шт.

N6663

LOCK VALVE

BYPASS VALVE ASSEMBLY - filter, Includes: Ref. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

BYPASS VALVE - filter

1шт.

6

N6862

O-RING,2.109" ID x 0.139" Width

- bypass valve

1шт.

N6662

HEAD (CYLINDER)

HEAD ASSEMBLY - filter, Includes: Ref. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

8

N6863

O-RING

- filter head, also part of N6665 element kit

1шт.

9

N6861

NUT

- special, head retaining, Includes: Ref. 10 & 11

1шт.

10

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- nut

1шт.

11

N6859

RING, SNAP

SNAP RING - nut

1шт.

12

N6860

PLUG

- special, 1-1/4" NPT, ported

1шт.

13

S104920

BRACKET

CONNECTOR - electrical, Includes: Ref. 14

1шт.

14

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

MACHINE SCREW - pan head slotted, self-locking, No. 8 - 32 NC x 5/8", plated

2шт.

15

221-1849

PLUG

- hex socket head, 1/8" NPT, plated

1-2шт.

16

221-1843

PLUG

- hex socket head, 3/8" NPT, if used

1шт.
